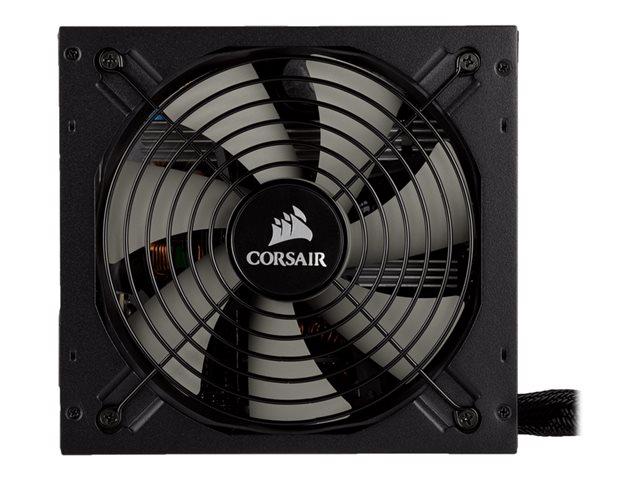

Захранващ блок CORSAIR Builder TX850 850W Semi-Modular 80 Pus Gold Power Supply CP-9020130-EU

SKU: 2764791

ID: #19513

Характеристики

Мощност, W: 850 W

Брой вентилатори: 1

Ефективност: 80 Pus

Сертификат: 80 Pus Gold

Цвят: Black

Гаранция (месеца): 36

Направи запитване

Количество: бр.

Доставка до адрес:

Имена:

E-mail:

Телефон:

Съгласие за обработване на личните ми данни за целите на директния маркетинг.

Добави за сравнение

Описание

CORSAIR Builder TX850 850W Semi-Modular 80 Pus Gold Power Supply


Manufacturer	CORSAIR
Manufacturer Part No	CP-9020130-EU

Marketing Description
TX series semi-modular power supplies are ideal for basic desktop systems where low energy use, low noise, and simple installation are essential. All of the capacitors are 105 °C rated, Japanese brand, to ensure solid power delivery and long term reliability. 80 PLUS Gold efficiency reduces operating cost and excess heat. Flat, sleeved black modular cables with clearly-marked connectors make installation fast and straightforward, with good-looking results.
Product Features
80 PLUS Gold-certified efficiency The super-efficient operation of the TX series semi-modular results in lower energy use and lower operating costs. Since it generates less heat, the fan doesn't need to work as hard, and you'll enjoy near silent operation. Modular cabling with clearly marked connectors The flat, sleeved black cables are semi-modular, so you'll only use the cables you need and you'll get great-looking results. The clearly-marked connectors make installation fast and straightforward.
General
Device Type	Power supply - active Power Factor Correction (PFC) - internal
Specification Compliance	ATX12V 2.4/ EPS12V 2.92
PSU Form Factor	ATX
Localisation	Europe
Power Device
Input Voltage	AC 100-240 V
Frequency Required	47 - 63 Hz
Power Output Connectors Details	1 x power 24 pin ATX with detachable 4 pin section 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section 4 x 8 pin PCI Express power with detachable 2 pin section 8 x 4 PIN internal power 8 x 15 pin Serial ATA power
Output Voltage	+3.3, +5, ±12 V
Power Capacity	850 Watt
Output Current	+3.3V - 25 A +5V - 50 A +12V - 70.8 A -12V - 0.8 A +5VSB - 3 A
Efficiency	90%
Modular Cable Management	Yes
80 PLUS Certification	80 PLUS Gold
Miscellaneous
Included Accessories	Cable tie, screws, 2 x 100mm floppy adapters, case badge
MTBF	100,000 hours
Cooling System	140 mm fan
Features	Sleeved cables, over voltage protection, overpower protection, undervoltage protection, short-circuit protection, thermal protection, rifle bearing cooling fan, semi-modular
Compliant Standards	UL, TUV, BSMI, cUL, CB, CCC, FCC, RoHS, WEEE, ICES, KC, EAC, RCM
Manufacturer Warranty
Service & Support	Limited warranty - 7 years
Dimensions & Weight
Width	15 cm
Depth	16 cm
Height	8.6 cm
Weight	1.78 kg
Dimensions & Weight (Shipping)
Shipping Width	29 cm
Shipping Depth	21 cm
Shipping Height	12.9 cm
Shipping Weight	2.8 kg
