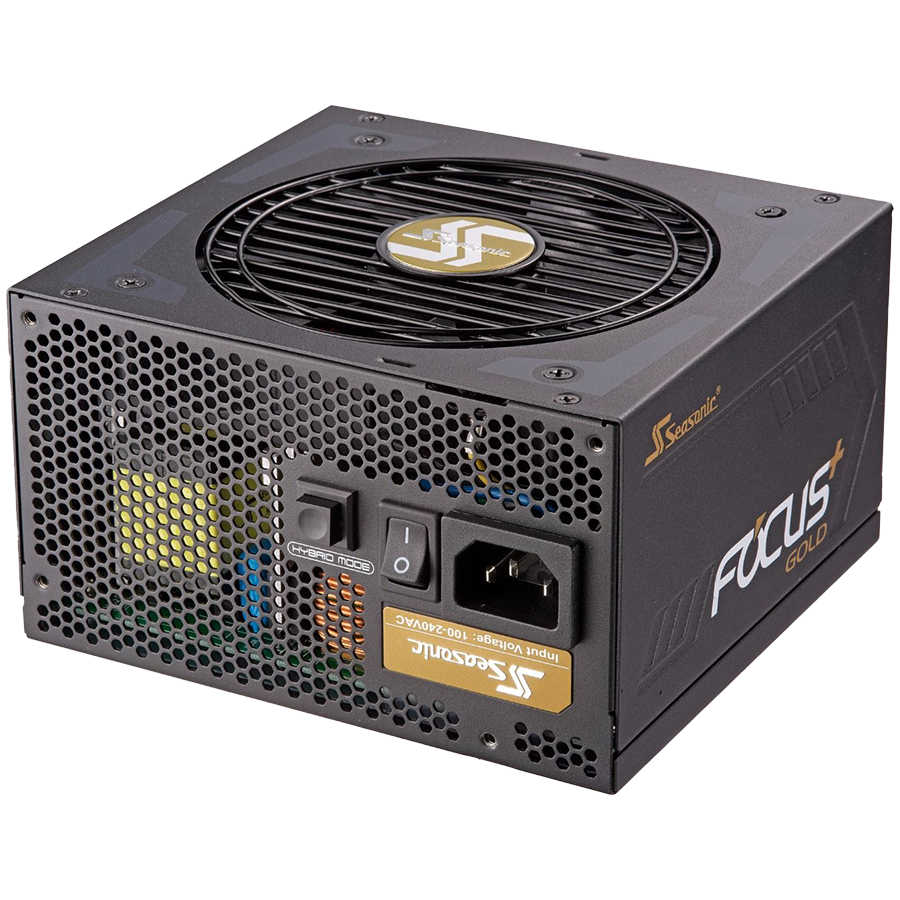

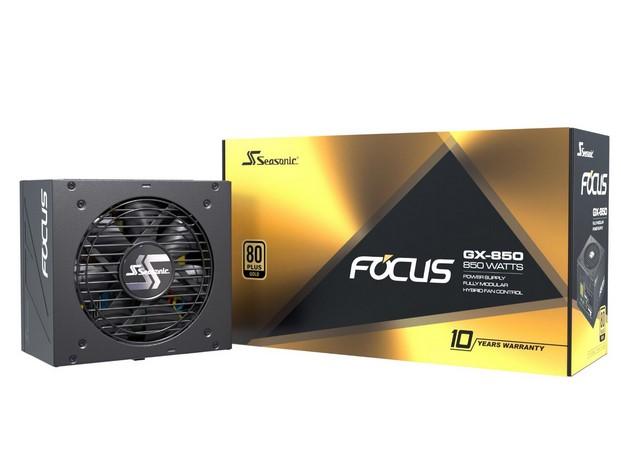

Захранване Seasonic Focus GX-850 Gold, 80 PLUS GOLD, 120mm FDB Fan, Fully Modular

80PLUS^®

Gold

Cybenetics Efficiency Level

TBA

Cybenetics Noise Level

TBA

Form Factor

Intel ATX 12 V

Dimensions

140 mm (L) x 150 mm (W) x 86 mm (H)

Fan Information

Fan Size

120 mm

Fan Control

S3FC - Fanless until 30 % load

Fan Bearing

Fluid Dynamic Bearing

Life Expectancy

50,000 hours at 40 °C, 15 % - 65 % RH

Cable Information

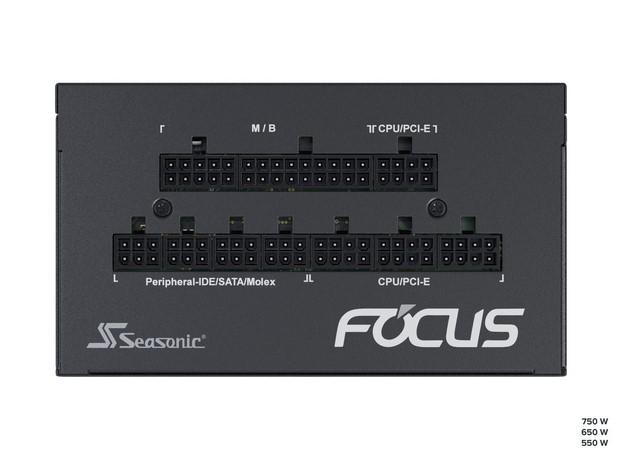

Modularity

Fully Modular

Cable type

Flat black cables

Electrical Features

Operating Temperature

0 - 40 °C

MTBF @ 25 °C, excl. fan

100,000 hours

AC Input

Full Range

Protection

OPP, OVP, UVP, OCP, OTP, SCP

Safety and Environmental

Safety and EMC

cTUVus, TUV, CB, CCC, BSMI, EAC, CE

Environmental Compliance

Energy Star, RoHS, WEEE, ErP Lot 6, REACH

Warranty

10 Years

AC Input

Voltage: 100 V - 240 V

Current: 13 - 6.5 A

Frequency: 50 Hz - 60 Hz

DC Output

Rail

+3.3 V

+5 V

+12 V

-12 V

+5 VSB

Maximum Power

25 A

25 A

83 A

0.3 A

3 A

125 W

996 W

3.6 W

15 W

Total continuous power

1000 W

MB (24/20 pins)

1

610

1

CPU (8/4 pins)

1

650

2

PCIe (8/6 pins)

2

750

3

PCIe (8/6 pins)

1

750

0

SATA

4

810

1

SATA

4

860

1

SATA

4

760

0

SATA

2

700

0

SATA

2

570

0

SATA

2

470

0

SATA

2

450

1

Molex

3

690

1

Molex

2

470

1

Molex to SATA 3.3 Adapter

2

300

1

Molex to FDD Adapter

1

101

0
