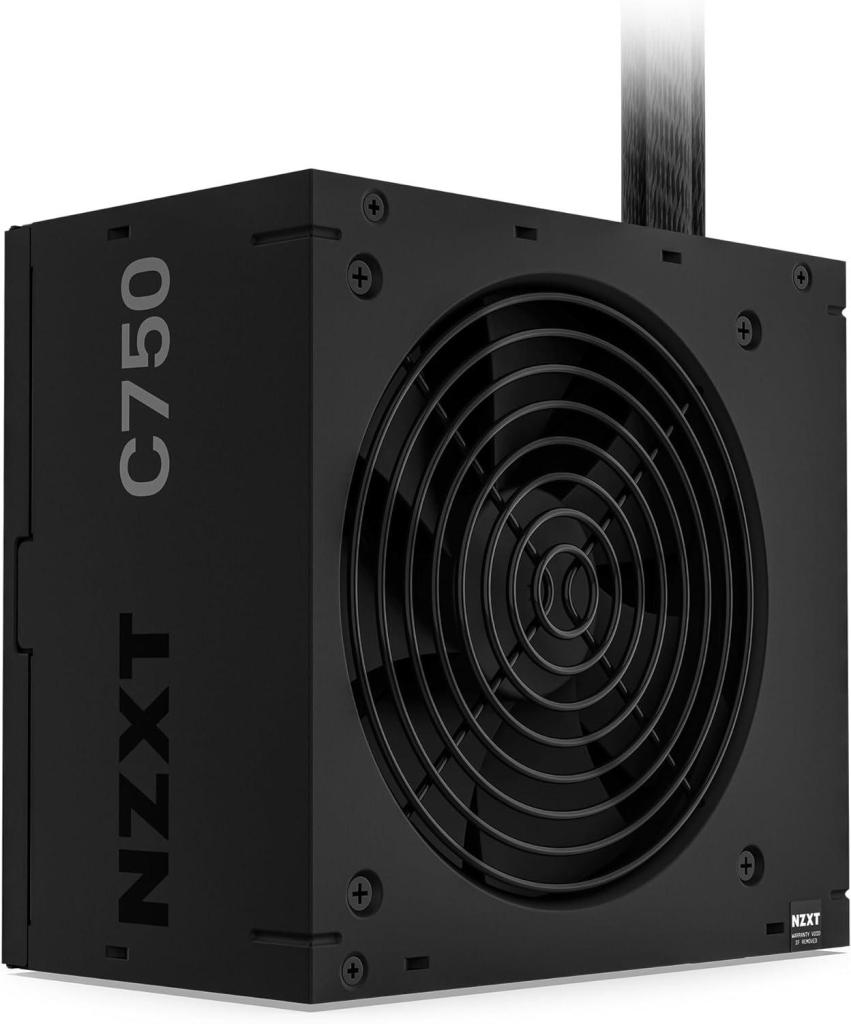

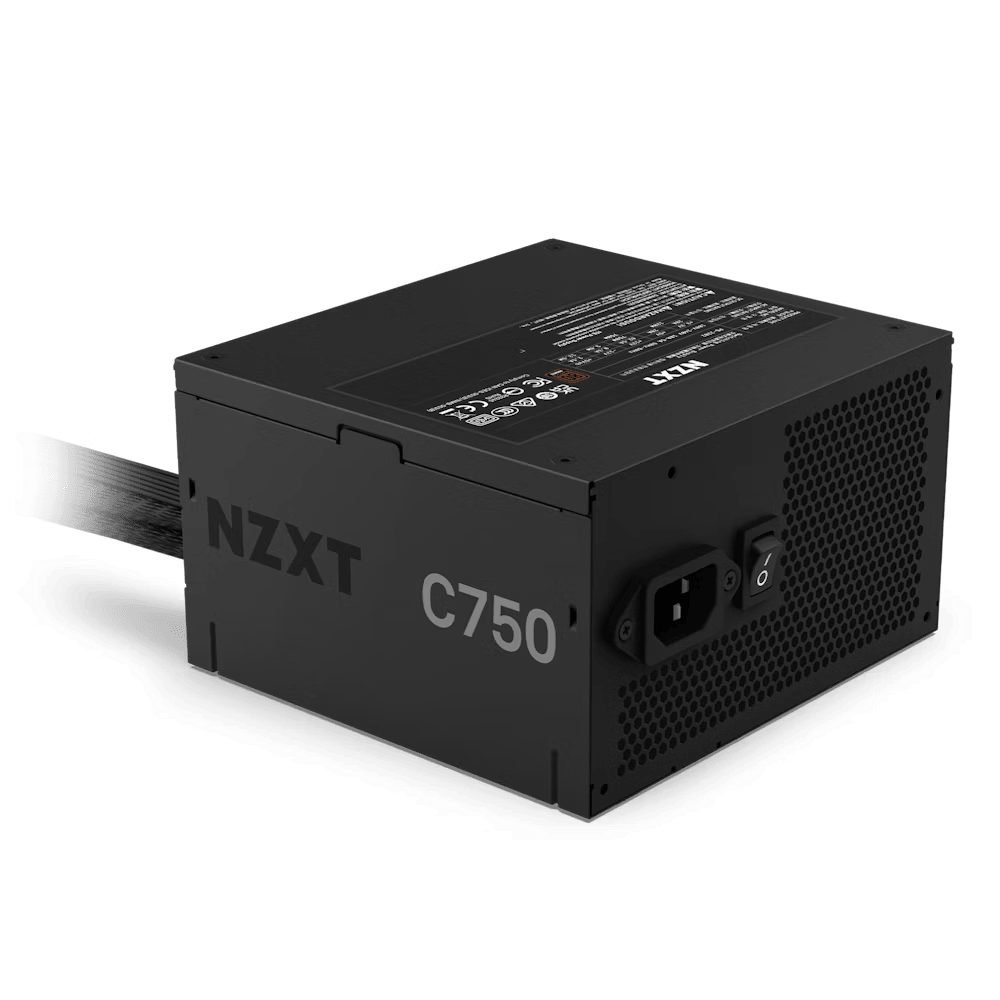

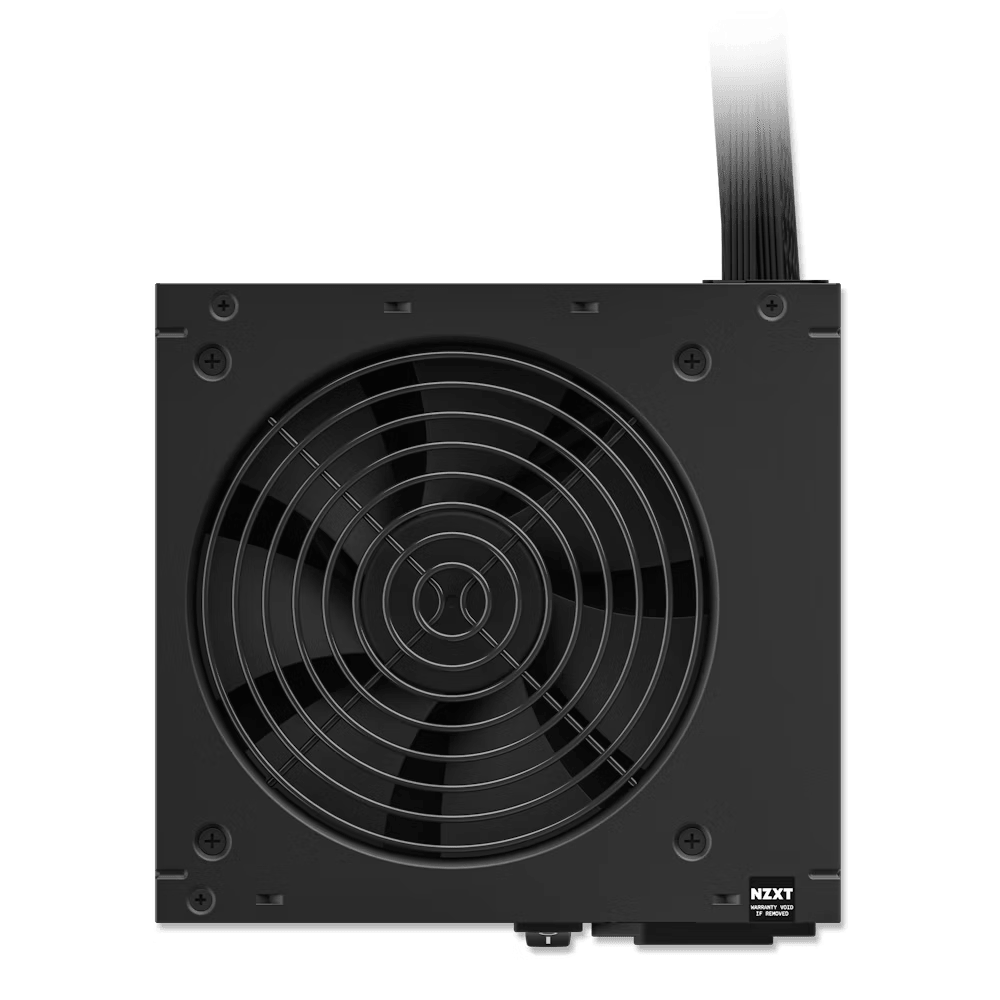

Захранване NZXT C750, 750W 80+ Bronze Non-Modular
изчерпан
Захранване NZXT C750, 750W 80+ Bronze Non-Modular
Захранване NZXT C750, 750W 80+ Bronze Non-Modular
Захранване NZXT C750, 750W 80+ Bronze Non-Modular

Захранване NZXT C750, 750W 80+ Bronze Non-Modular

SKU: NZXT-PS-PA-7B2BB-EU
ID: #32319

Характеристики

Мощност, W: 750 W
Модулен захранващ блок: Не
Ефективност: 80 %
Размери: 140 x 150 x 86 мм
Форм фактор: ATX
Цвят: Black
Гаранция (месеца): 120

Направи запитване

Описание

  • NZXT C750 Bronze PSU1

  • 24-pin ATX Power Cable1

  • 8-pin (4+4) CPU Power Cable2

  • 8-pin (6+2) PCIe Power Cable1

  • SATA Cable1

  • Peripherals Cable1

  • AC Power Cord1

  • 6-32 Screws4

Dark Gray BackgroundDark Gray Background
C750 Bronze DC-to-DC conversionC750 Bronze DC-to-DC conversion

Reliable Power

DC-to-DC conversion ensures consistent power delivery to GPUs up to 220W, such as the RTX 3070.
Dark Gray BackgroundDark Gray Background
NZXT C750W Bronze PSU Power Efficiency Graph 88% Efficiency at 50% LoadNZXT C750W Bronze PSU Power Efficiency Graph 88% Efficiency at 50% Load

Highly Efficient

Up to 88% efficiency at 50% load exceeds 80 Plus Bronze standards, reducing energy waste and heat.
Dark Gray BackgroundDark Gray Background
NZXT C750W Bronze PSU Fan Noise Graph 19dB Fan Noise at 50% LoadNZXT C750W Bronze PSU Fan Noise Graph 19dB Fan Noise at 50% Load

Quiet Cooling

A 120mm fluid dynamic bearing fan delivers low-noise performance with enhanced longevity.
Dark Gray BackgroundDark Gray Background
750W PSU Safety up to 40 degrees Celsius750W PSU Safety up to 40 degrees Celsius

Enhanced Safety

Tested for safety at up to 40°C, and features over-temperature and over-current protections.
Dark Gray BackgroundDark Gray Background
Main PSU cables are nylon-sleeved for durabilityMain PSU cables are nylon-sleeved for durability

Durable & Sleek

Main PSU cables are nylon-sleeved for durability with a matte black finish to match any build.

Tech Specs

Output Connector(s)

  • 24-pin ATX Power:1

  • 4+4-pin CPU power:2

  • 6+2-pin PCIe power:2

  • SATA Power:4

  • Peripherals:4

CABLE SPECS

  • 24-pin ATX power:600mm, Nylon sleeving

  • 4+4-pin CPU power:700mm, Nylon sleeving

  • 6+2-pin PCIe power:650 + 150mm, Nylon sleeving

  • SATA power:500 + 150 mm

  • Peripherals:500 + 150 mm

AC INPUT RATING

  • 100 - 240Vac:10A-5A 50Hz-60Hz

DC Output Rating

  • +3.3V:20A (120W)

  • +5V:20A (120W)

  • +12V:62.5A (750W)

  • -12V:0.3A (3.6W)

  • 5Vsb:2.5A (12.5W)

  • Total:750W

Operation

  • PF Correction:Active@0.96

  • MTBF:100,000 hours

  • Operation Temperature:0 to 40°C

ENERGY EFFICIENCY

  • Rating:80 Plus Bronze

  • 10% loading:86.2% @115Vac

  • 20% loading:88.97% @115Vac

  • 50% loading:88.7% @115Vac

  • 100% loading:83.2% @115Vac

Fan Specs

  • Dimensions:120 x 120 x 25 (mm)

  • Speed:2400 ±10% RPM

  • Airflow:64.4 CFM (Tpy.)

  • Noise:39.92 dBA max

  • Bearing:FDB (Fluid Dynamic Bearing)

General

  • Dimensions (W x L x H):150 x 140 x 86mm

  • Material(s):Steel, PCB and Plastic

  • Compliance Standard:ATX12V v2.53 / EPS12V v2.92

  • Regulation & Certification:FCC, Canada, CE, CB(IEC 62368-1), BIS, UKCA, CCC, BSMI, Mexico NOM

  • Hazardous Materials:Taiwan and China RoHS Table, CP65, EU REACH

  • Protections:OVP (Over Voltage Protection) UVP (Under Voltage Protection) SCP (Short Circuit Protection) OTP (Over Temperature Protection) OPP (Over Power Protection) OCP (Over Current Protection)


C650 Bronze Main Front RIght 45
