Захранване NZXT C1200, 1200W 80+ Gold Full Modular, ATX 3.0

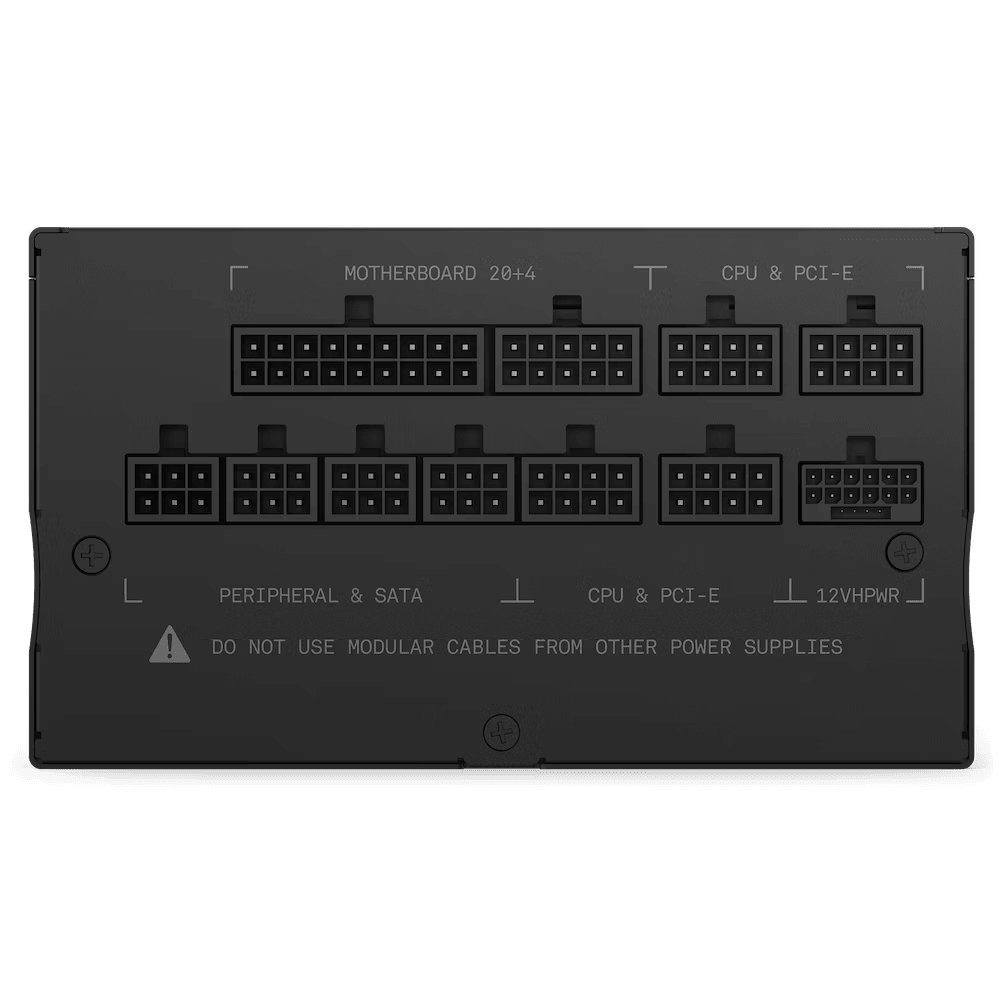

Output Connectors

• 24-pin ATX power:1

• 4+4-pin CPU power:1

• 8-pin CPU Cable :1

• 6+2-pin PCIe power :2

• 16-pin (12+4) 12VHPWR PCIe Cable:1

• SATA power :8

• Peripherals :4

Cable Specs

• 24-pin ATX power:600 mm, Nylon sleeving

• 4+4-pin CPU power:700 mm, Nylon sleeving

• 8-Pin CPU Power Cable:700mm, Nylon sleeving

• 6+2-pin PCIe power:650 + 150 mm, Nylon sleeving

• 16-Pin (12+4) 12VHPWR PCIe Cable:650mm, Nylon sleeving

• SATA power:500 + 150 mm

• Peripherals:500 + 150 mm

AC Input Rating

• 100 - 240Vac:14A-7A 50Hz-60Hz

DC Output Rating

• +3.3V and +5V:22A (120W)

• +12V:100A (1200W)

• -12V:0.3A (3.6W)

• 5Vsb:3A (15W)

• Total:1200W

Operation

• PF Correction:Active @0.96

• MTBF:100,000 hours

• Temperature:0 - 50 °C (derating from 100% to 80% from 40 °C to 50 °C)

Energy Efficiency

• Rating:80 Plus Gold

• 20% loading:90.97% @115Vac

• 50% loading:91.55% @115Vac

• 100% loading:88.51% @115Vac

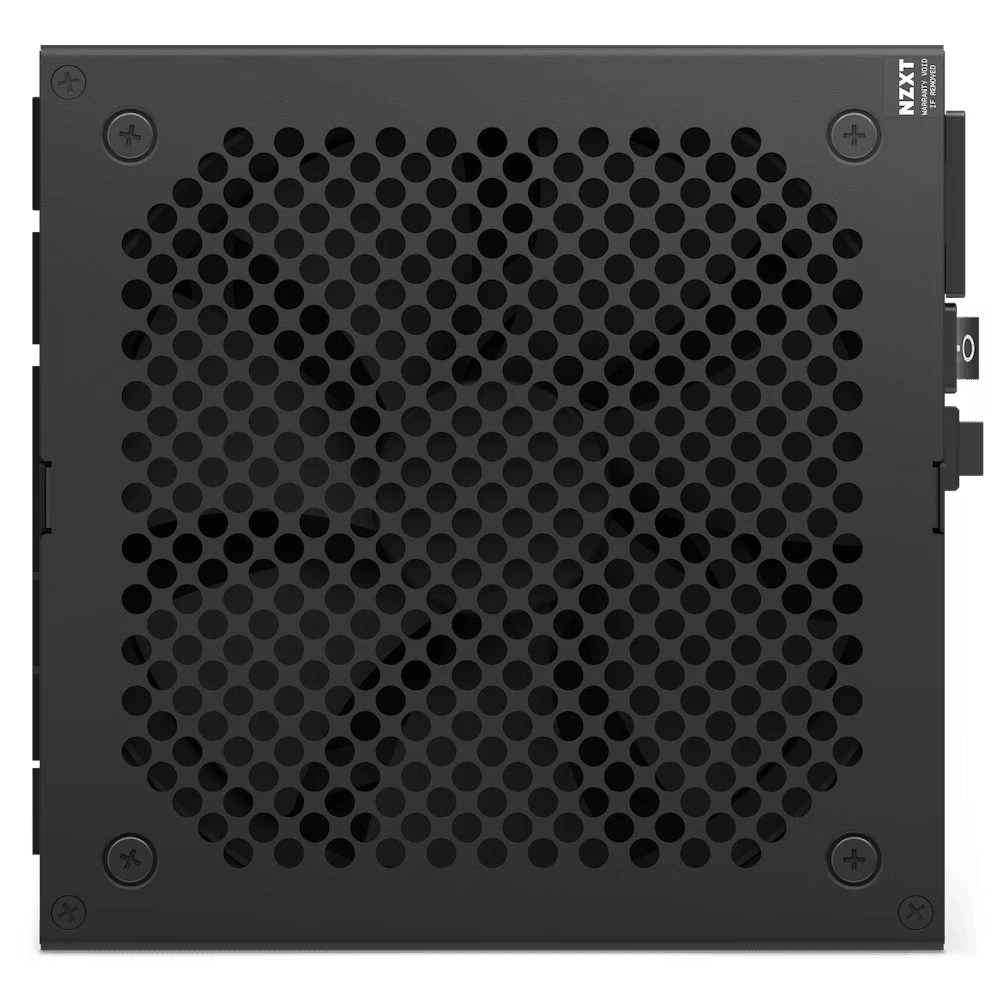

Fan Specs

• Dimensions:135 x 135 x 25 mm

• Speed:0-2300 ± 10% RPM

• Airflow:93.02 CFM (Tpy.)

• Noise:44.5 dBA max

• Bearing:Fluid Dynamic Bearing (FDB)
