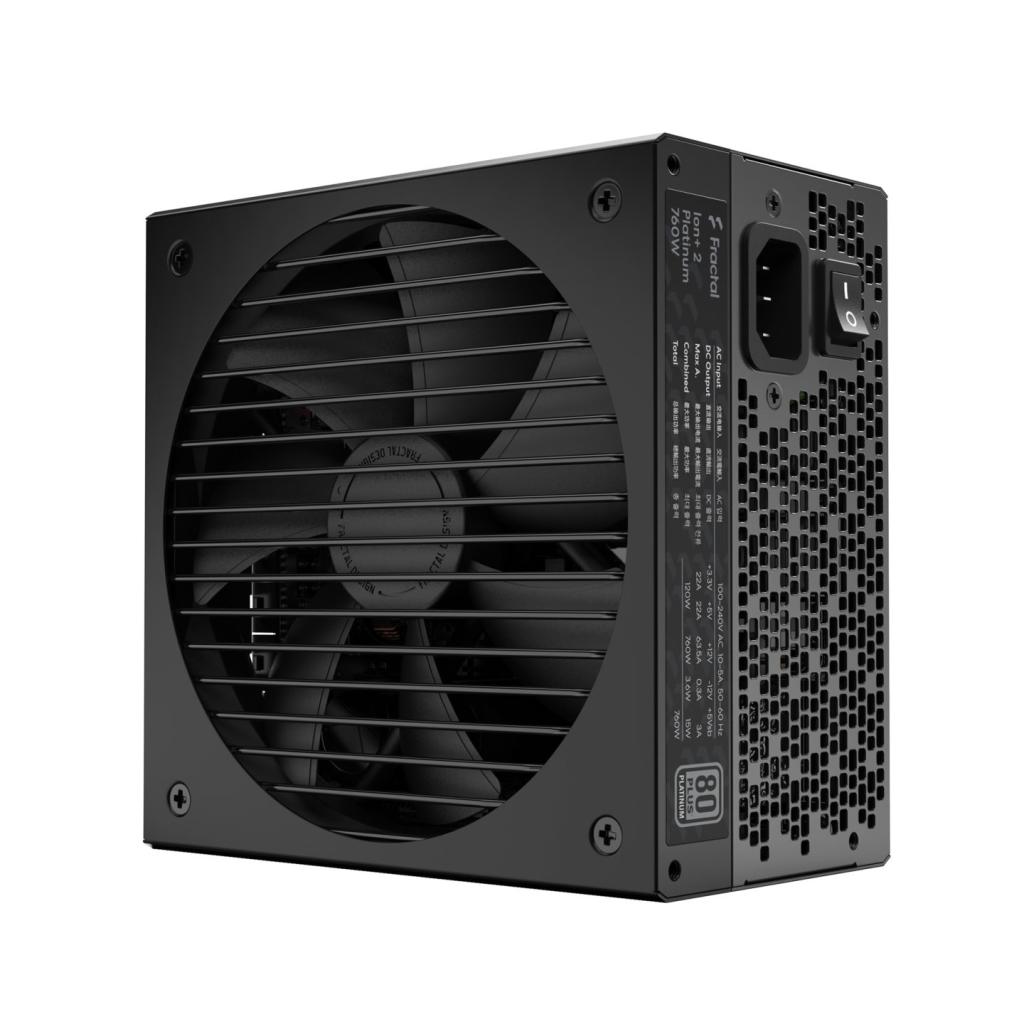

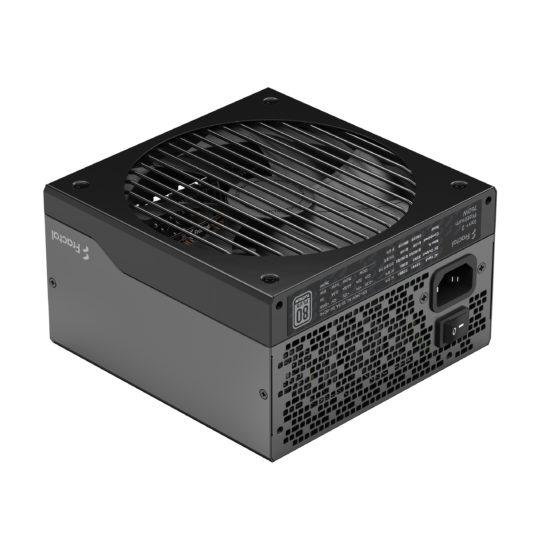

Захранване Fractal Design Ion+ 2 Platinum, 760W, Active PFC, 80 Plus Platinum
Захранване Fractal Design Ion+ 2 Platinum, 760W, Active PFC, 80 Plus Platinum
Захранване Fractal Design Ion+ 2 Platinum, 760W, Active PFC, 80 Plus Platinum
Захранване Fractal Design Ion+ 2 Platinum, 760W, Active PFC, 80 Plus Platinum

Захранване Fractal Design Ion+ 2 Platinum, 760W, Active PFC, 80 Plus Platinum

SKU: FD-P-IA2P-760-EU / FD-P-IA2P-760-EU
ID: #30638
Цена: 369,00 лв.
Цената е с вкл. ДДС

Характеристики

Мощност, W: 760 W
Брой вентилатори: 1 x 140 mm
Модулен захранващ блок: Да
Ефективност: 90%
Сертификат: 80 PLUS® Platinum
Цвят: Black

Бърза Поръчка

Описание

  • 80PLUS® certification
    Platinum
  • Modular cables
    Fully modular
  • Fan type
    140 mm FDB bearing Fractal Design Dynamic series fan
  • Maximum operating temperature (full load)
    50°C
  • Semi-passive operation
    Yes, user selectable (Zero RPM)
  • Capacitors
    Japanese
  • Life expectancy
    100,000 hours
  • PSU specification compliance
    ATX12V 2.52; EPS12V 2.92
  • Cable type
    Modular 24-pin cable: Black UltraFlex™ wires in braided sleeve Other modular cables: Flat black UltraFlex™ wires
  • Input voltage
    100-240V C
  • Input frequency
    50-60 Hz
  • Input current
    10A/5A
  • Protection features
    Over voltage protection, Under voltage protection, Overpower protection, Short circuit protection, Over current protection, Over temperature protection
  • Standby efficiency
    ErP 2013 (<0.45W @230. VAC, 45 mA load on +5Vsb)
  • Sleep state compliance
    C6/C7
  • Approvals & certifications
    CE, FCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, KC+KCC
  • Warranty
    10 Years

Connectors

  • ATX 24-pin
    1
  • ATX12V 4+4 pin / EPS12V 8-pin
    2
  • PCIe 6+2 pin
    6
  • SATA
    10
  • Peripheral
    4

Cable Configuration (length in mm between connectors)

  • ATX 20+4 pin
    600 mm
  • ATX 12V 4+4 pin
    700 mm
  • EPS12V 8-pin
    600 mm
  • PCIe 6+2 pin
    550 + 120 mm
  • SATA
    400+150+150+150 mm & 650+150mm
  • Peripheral
    400+150+150+150 mm

DC Output

  • 3.3V
    22A
  • 5V
    22A
  • 3.3V and 5V combined
    120W
  • 12V
    63.3A
  • -12V
    0.3A
  • +5Vsb
    3A
  • Total Power
    760W

Other

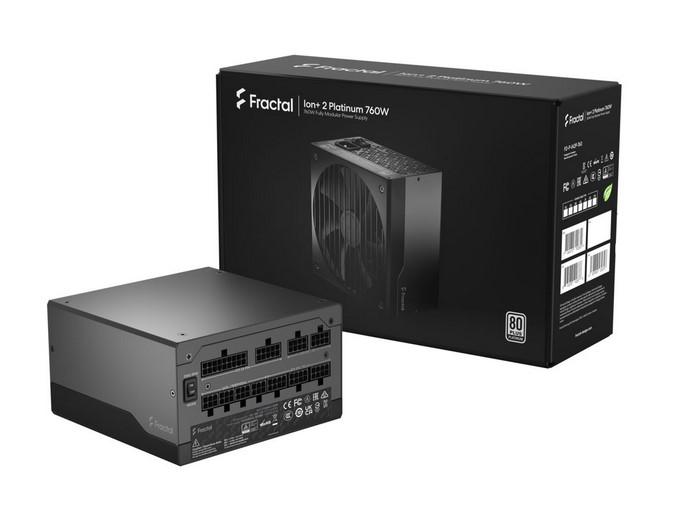

  • Package contents
    Power Supply, Power Supply storage bag, Modular cable kit in storage bag, User guide, AC Power cord, Velcro cable ties and mounting screw pack, Included in packaging is a red note as well
  • Unit dimensions (LxWxH)
    150 x 150 x 86 mm
  • Net weight (unit only)
    2.53 kg
  • Package dimensions (LxWxH)
    325 x 210 x 110 mm
  • Package weight
    3.06 kg
