Захранване Asus TUF Gaming, 1000W, Active PFC, 80 PLUS Gold
изчерпан
Захранване Asus TUF Gaming, 1000W, Active PFC, 80 PLUS Gold
Захранване Asus TUF Gaming, 1000W, Active PFC, 80 PLUS Gold

Захранване Asus TUF Gaming, 1000W, Active PFC, 80 PLUS Gold

SKU: 90YE00S1-B0NA00
ID: #28432

Характеристики

Мощност, W: 1000 W
Брой вентилатори: 1 x 135 mm
Модулен захранващ блок: Да
Ефективност: 80 PLUS Gold
Цвят: Black
Гаранция (месеца): 120

Направи запитване

Описание

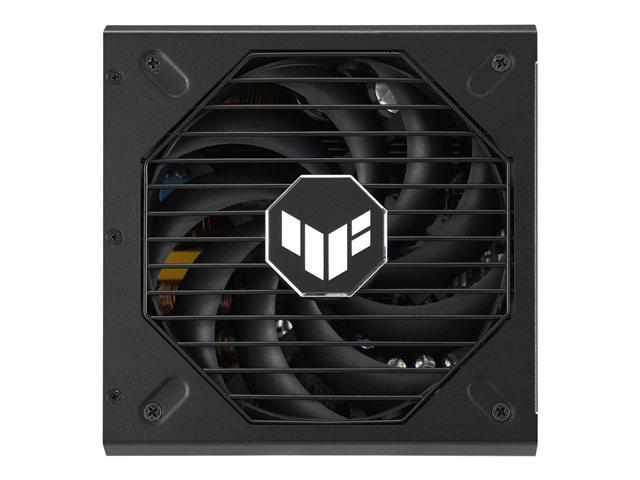

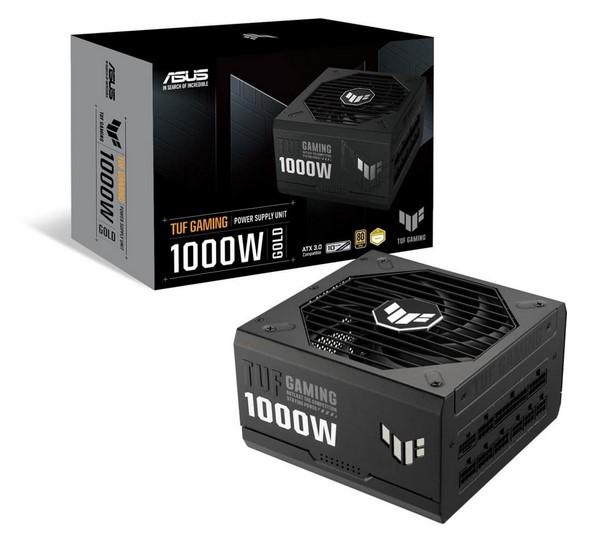

ASUS TUF Gaming 1000W Gold Fully Modular Power Supply

Manufacturer ASUS
Manufacturer Part No 90YE00S1-B0NA00

General
Device Type Power supply - internal
Specification Compliance ATX12V
PSU Form Factor ATX
Power Device
Input Voltage AC 100-240 V
Power Output Connectors Details 1 x power 24 pin ATX with detachable 4 pin section
2 x power 8 pin EPS12V with detachable 4 pin ATX12V section
4 x 8 pin PCI Express power with detachable 2 pin section
1 x 16 pin PCI Express power
4 x 4 PIN internal power
5 x 15 pin Serial ATA power
Output Voltage +3.3, +5, ±12 V
Power Capacity 1000 Watt
Output Current +3.3V - 25 A
+5V - 25 A
+12V - 83.3 A
-12V - 0.8 A
+5VSB - 3 A
Modular Cable Management Yes
80 PLUS Certification 80 PLUS Gold
Miscellaneous
Included Accessories Cable ties
Features Over current protection, over voltage protection, overpower protection, undervoltage protection, short-circuit protection, dual ball bearing cooling fan, fully modular, Axial-tech fan design
Compliant Standards RoHS
Manufacturer Warranty

Dimensions & Weight
Width 15 cm
Depth 15 cm
Height 8.6 cm
Weight 2.48 kg
Technical data provided by third party. We assume no liability for errors within these data.
