| Marketing Description |

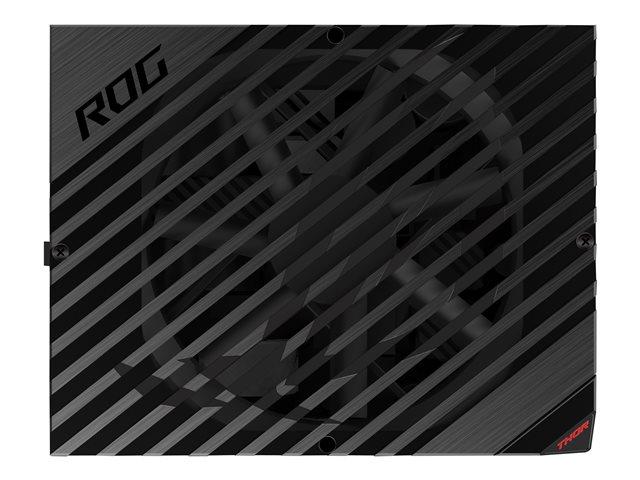

| The ROG-THOR-1200P is the PSU for PC enthusiasts who demand aesthetic excellence and performance perfection. It's packed with innovative ideas, including Aura Sync RGB illumination, an integrated OLED information panel, and a dustproof fan. |
| Product Features |
- Outshine the competition
ASUS Aura Sync is the illumination ecosystem that lets you synchronize lighting effects across your gaming rig, components, and peripherals. The ROG PSU has addressable Aura RGB LEDs built in and ready for you to create your custom look.
- OLED power display
The ROG PSU features an integrated OLED panel, offering a real-time display of power draw. You can see at a glance how much juice your rig is using.
- ROG heatsink
The integrated ROG heatsinks have more volume than traditional designs, resulting in lower temperatures inside the ROG PSU. This enables cooler operation, extending the lifespan of components.
|
| General |
| Device Type |
Power supply - internal |
| Specification Compliance |
ATX12V |
| PSU Form Factor |
ATX |
| Power Device |
| Input Voltage |
AC 100-240 V |
| Output Voltage |
+3.3, +5, ±12 V |
| Power Capacity |
1200 Watt |
| Output Current |
+3.3V - 25 A
+5V - 25 A
+12V - 100 A
-12V - 0.3 A
+5VSB - 3 A |
| Efficiency |
92% at 50% Load, 90% at 20% Load, 89% at 100% Load |
| Modular Cable Management |
Yes |
| 80 PLUS Certification |
80 PLUS Platinum |
| Miscellaneous |
| Cooling System |
135 mm fan |
| Features |
Sleeved cables, over current protection, over voltage protection, overpower protection, short-circuit protection, thermal protection, OLED display, fully modular, ASUS Aura Sync, 0db cooling with dustproof IP5X wing-blade fan, ROG heatsink |
| Compliant Standards |
RoHS, IP5X |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 10 years |
| Dimensions & Weight |
| Width |
15 cm |
| Depth |
19 cm |
| Height |
8.6 cm |
