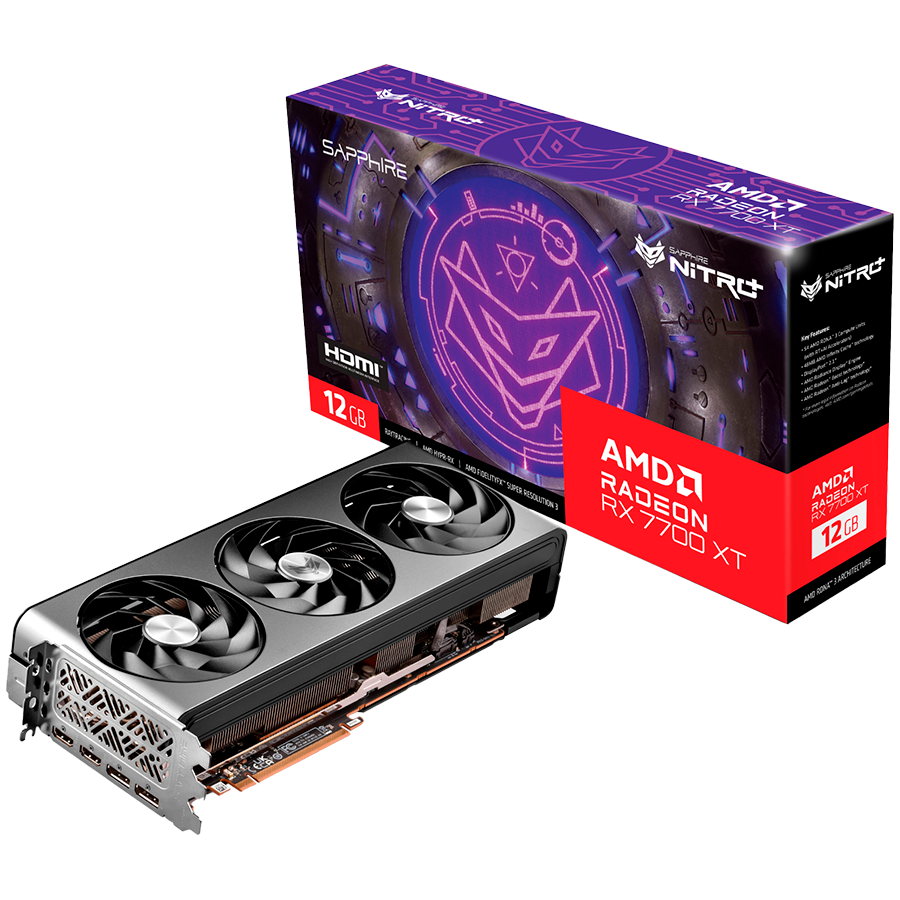

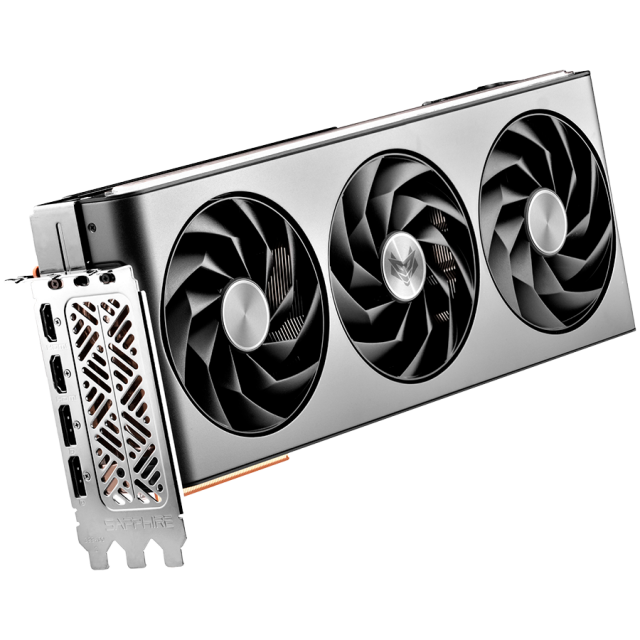

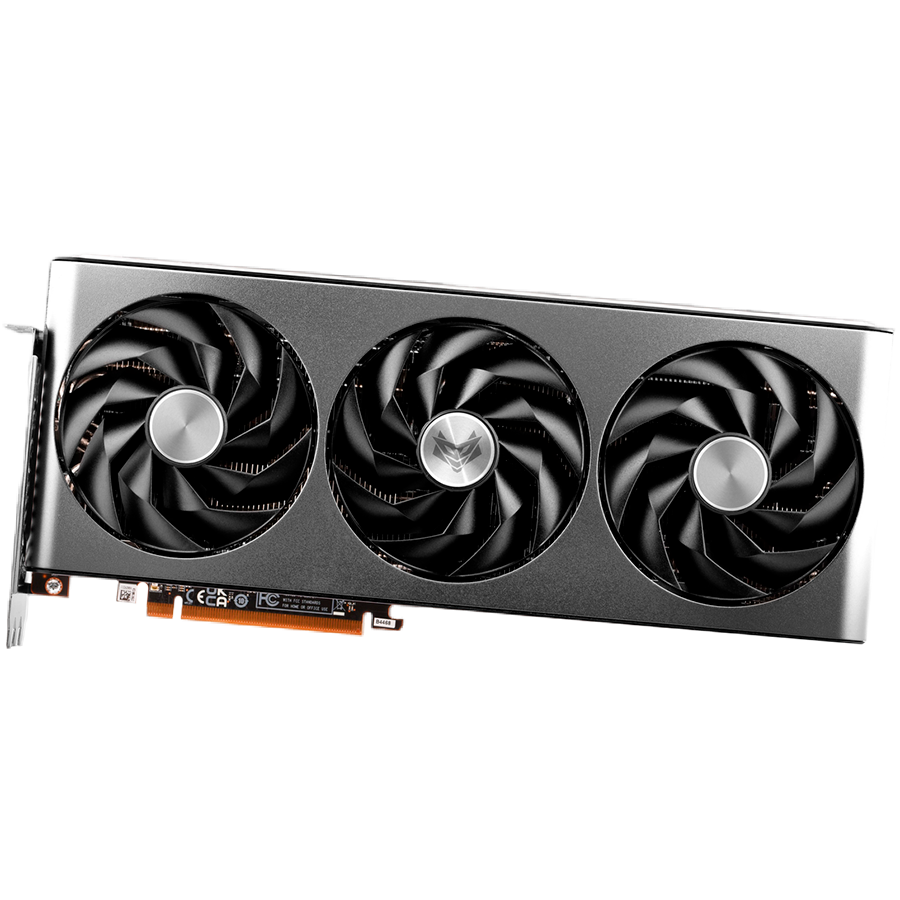

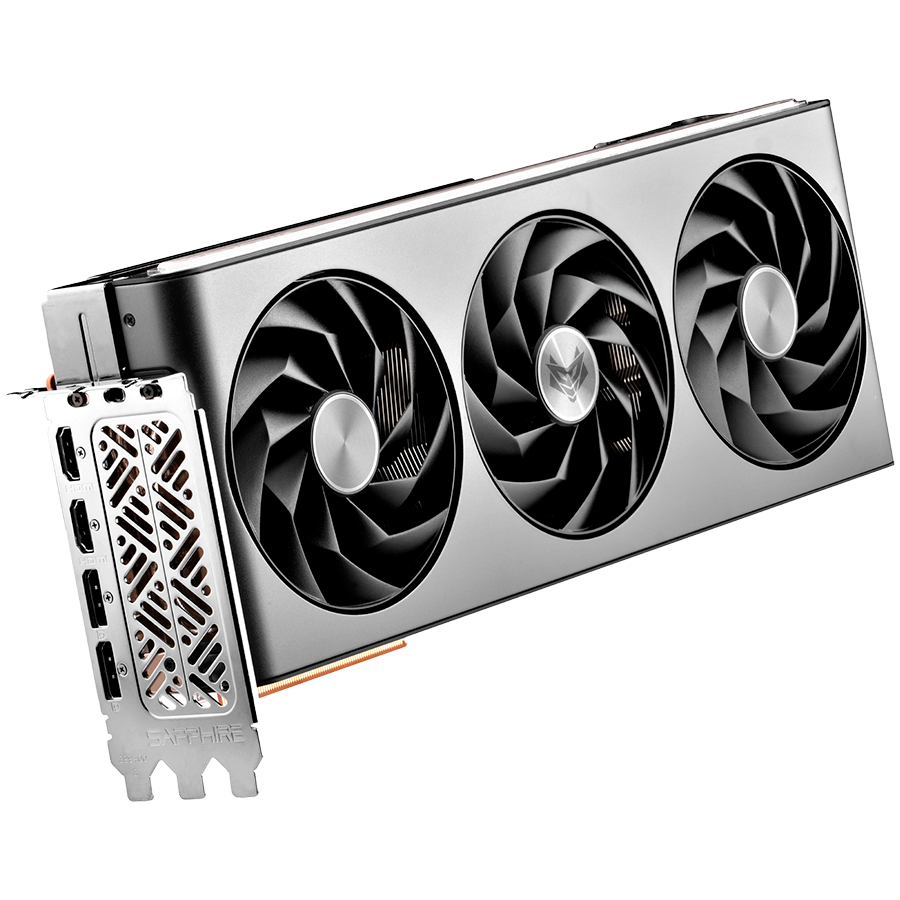

Видео карта SAPPHIRE NITRO+ AMD RADEON RX 7700 XT GAMING OC 12GB GDDR6, 192 bit, HDMI, DP
изчерпан
Видео карта SAPPHIRE NITRO+ AMD RADEON RX 7700 XT GAMING OC 12GB GDDR6, 192 bit, HDMI, DP
Видео карта SAPPHIRE NITRO+ AMD RADEON RX 7700 XT GAMING OC 12GB GDDR6, 192 bit, HDMI, DP
Видео карта SAPPHIRE NITRO+ AMD RADEON RX 7700 XT GAMING OC 12GB GDDR6, 192 bit, HDMI, DP

Видео карта SAPPHIRE NITRO+ AMD RADEON RX 7700 XT GAMING OC 12GB GDDR6, 192 bit, HDMI, DP

SKU: 11335-02-20G
ID: #31535

Характеристики

Графичен процесор: Radeon RX 7700 XT
Чипсет: AMD
Макс. резолюция: 7680 x 4320 (8К)
Честота процесор (MHz): Boost Clock: Up to 2599 MHz / Game Clock: Up to 2276MHz
Размер на шината (битове): 192
Вградена памет, GB: 12GB GDDR6
Брой слотове: 3.0
HDMI: 2
Display port: 2
Интерфейс: PCI-Express 4.0
Конектори за захранване: 2 x 8-pin
Препоръчително захранване: 700W
Размери (mm): 320 x 134.85 x 61.57 mm
Гаранция (месеца): 24

Направи запитване

Описание

SAPPHIRE NITRO+ AMD RADEON RX 7700 XT GAMING OC 12GB GDDR6 DUAL HDMI / DUAL DP

GPU

AMD Radeon™ RX 7700 XT Graphics Card
5nm GPU
AMD RDNA™ 3 Architecture

Engine Clock

  • Boost Clock: Up to 2599 MHz
  • Game Clock: Up to 2276MHz



Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.



Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.

Stream Processors

3456

Compute Units

54 CU (with RT+AI Accelerators)

Infinity Cache

48MB

Ray Accelerators

54

Memory Size/Bus

12GB/192 bit GDDR6

Memory Clock

18 Gbps Effective

Displays

Maximum 4 Displays

Resolution

  • HDMI™: 7680×4320
  • DisplayPort 2.1: 7680×4320

Interface

PCI-Express 4.0 x16

BIOS Support

  • Dual UEFI

Game Index

1440P

Sapphire Features

  • Dual BIOS
  • TriXX Software Switch
  • Premium Digital Power Design
  • Ultra High Performance Conductive Polymer Aluminum Capacitors
  • Fuse Protection
  • Tri-X Cooling Technology
  • High TG Copper PCB
  • Optimized Composite Heatpipe
  • Intelligent Fan Control
  • Precision Fan Control
  • Metal Backplate with ARGB
  • ARGB Light Bar
  • Two-Ball Bearing Fans
  • Angular Velocity Fan Blade
  • Assistive System Fan Control
  • Aluminum Alloy Frame
  • Dedicated VRM Cooling
  • Wave Fin Design
  • V Shape Fin Design for GPU Cooling
  • TriXX Supported
  • Fan Check
  • Fan Quick Connect
  • TriXX Boost
  • NITRO Glow
  • External RGB LED MB Synchronization

Accessories Bundled

  • Graphics Card Supporter
  • ARGB Extension Cable

AMD Features

  • AMD RDNA™ 3 Architecture
  • 54 AMD RDNA™ 3 Compute Units
  • 48MB AMD Infinity Cache™ Technology
  • DisplayPort™ 2.1 Support
  • AMD Radiance Display™ Engine
  • 12GB GDDR6 on 192-Bit Memory Bus
  • PCI® Express 4.0 ready
  • AMD FidelityFX™ Super Resolution technology*
  • Microsoft® DirectX® 12 Ultimate Support
  • Microsoft® DirectStorage Support
  • Vulkan® Optimized
  • AMD Smart Technologies
  • AMD Software: Adrenalin Edition™
  • AMD Noise Suppression
  • AMD Privacy View
  • AMD Radeon™ Super Resolution technology
  • AMD Link
  • AMD FreeSync™ Technology

Cooling

3 Fans

Form Factor

3 slot, ATX
Dimension: 320(L)X 134.85(W)X 61.57 (H)mm

Power Consumption

252W Total Board Power

OS

Linux®, Windows® 10, and Windows 11. 64-bit  operating system required

System Requirement

  • Minimum 700 Watt Power Supply
  • 2 x 8-pin Power Connector.
  • PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
  • Minimum 8GB of system memory. 16GB recommended.
