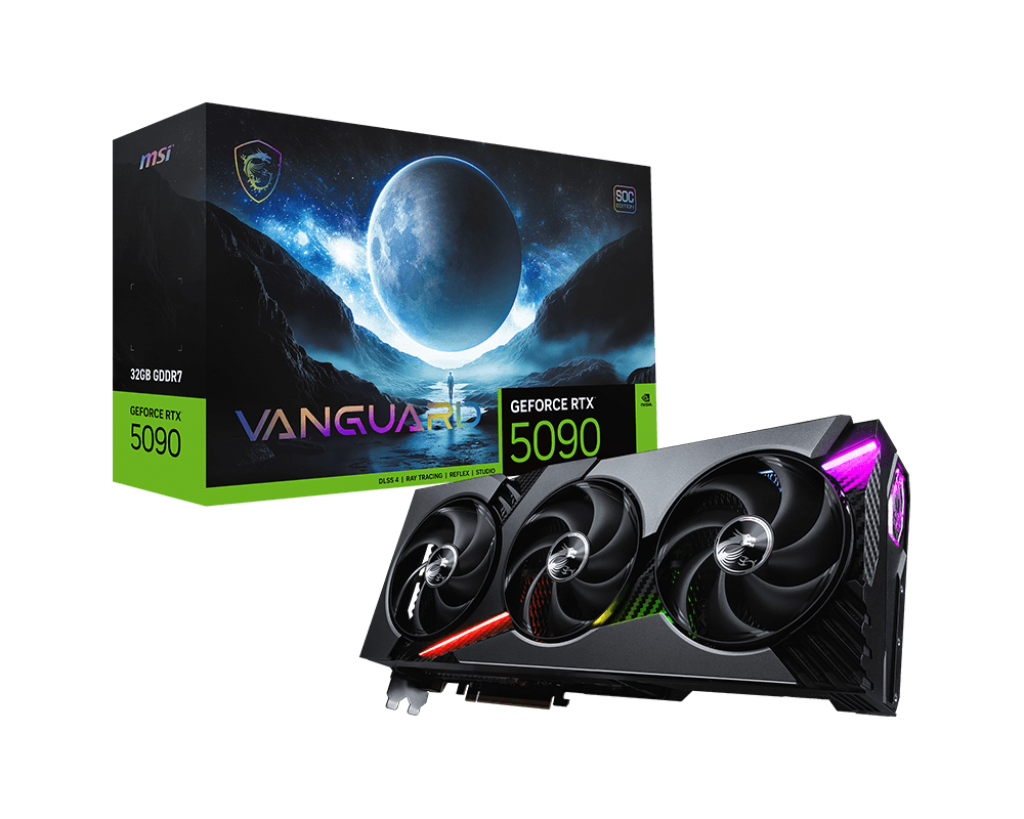

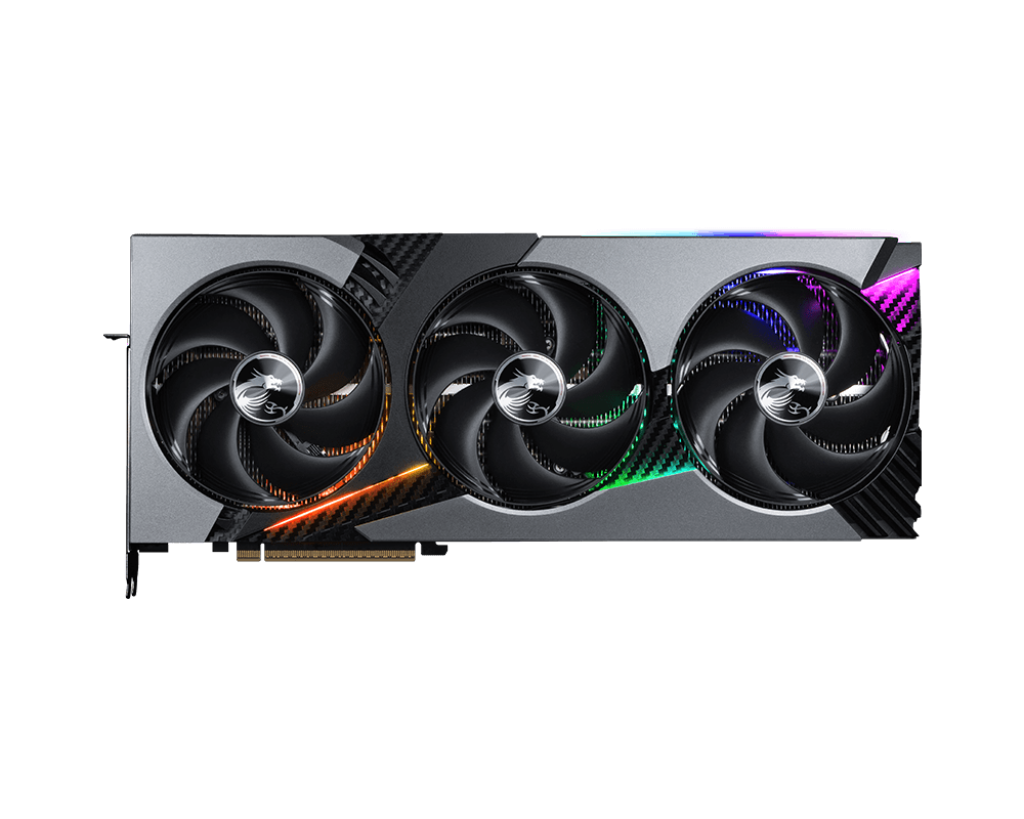

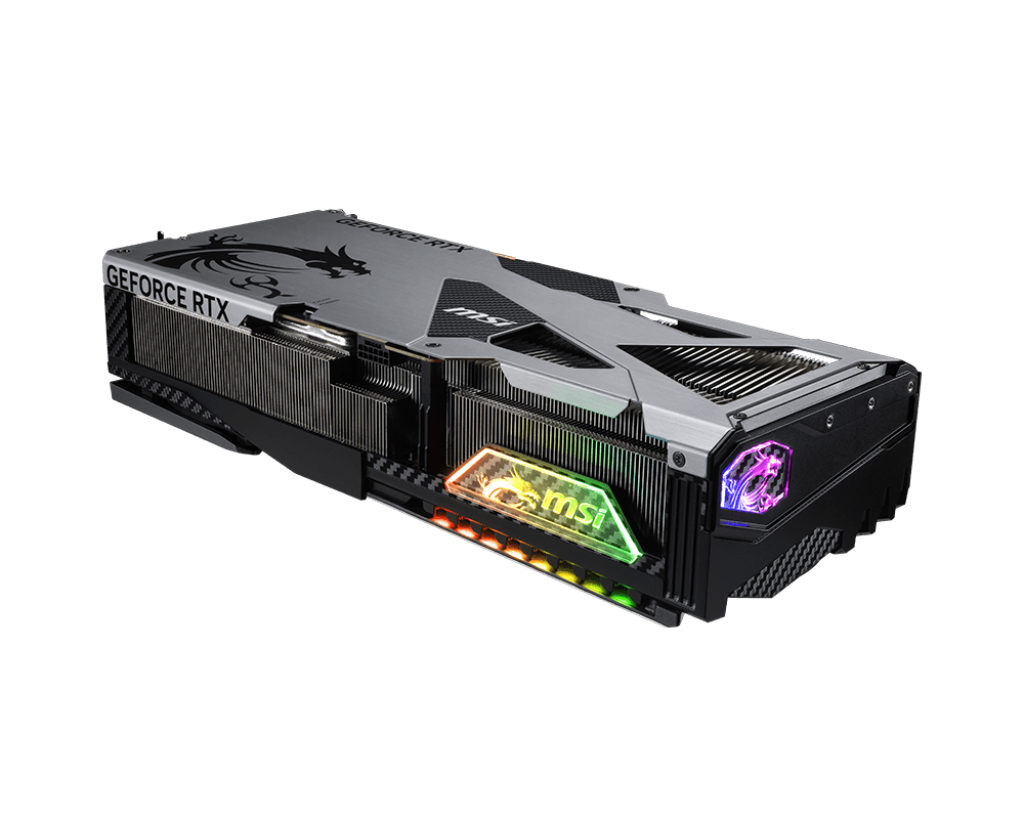

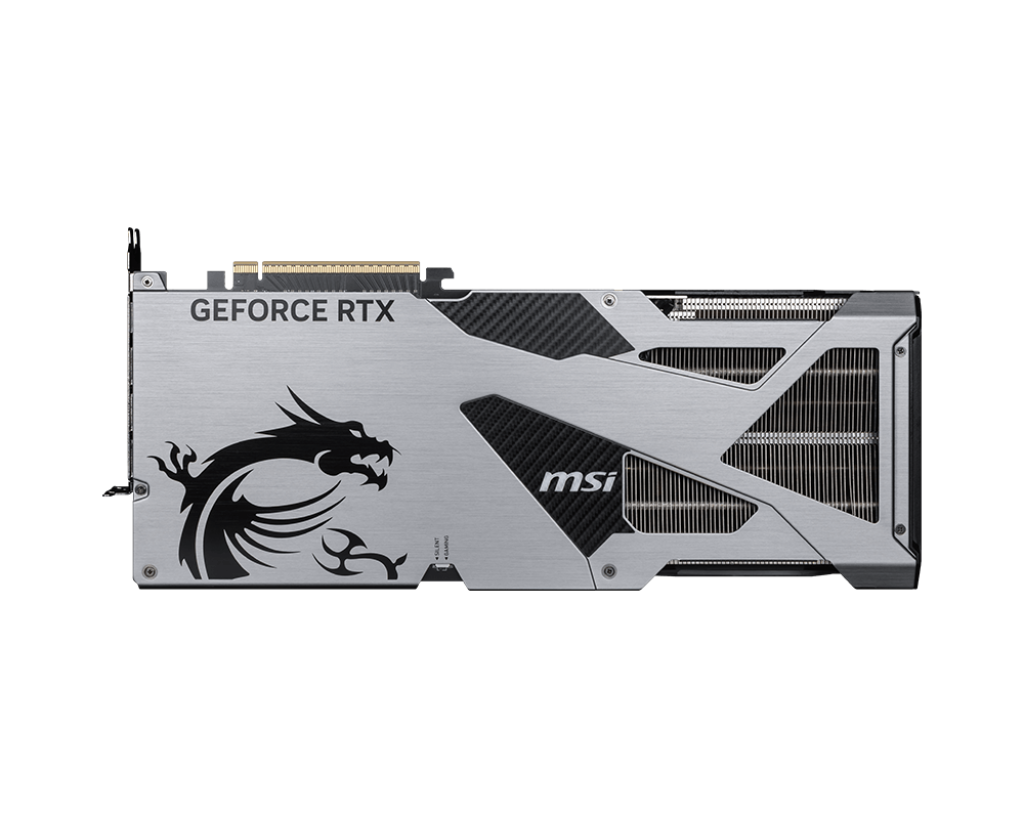

Marketing Name GeForce RTX™ 5090 32G VANGUARD SOC
Model Name G5090-32VGS
Graphics Processing Unit NVIDIA® GeForce RTX™ 5090
Interface PCI Express® Gen 5
Core Clocks
Extreme Performance: 2527 MHz (MSI
Center)
Boost: 2512 MHz (GAMING & SILENT Mode)
CUDA® CORES 21760 Units
Memory Speed 28 Gbps
Memory 32GB GDDR7
Memory Bus 512bit

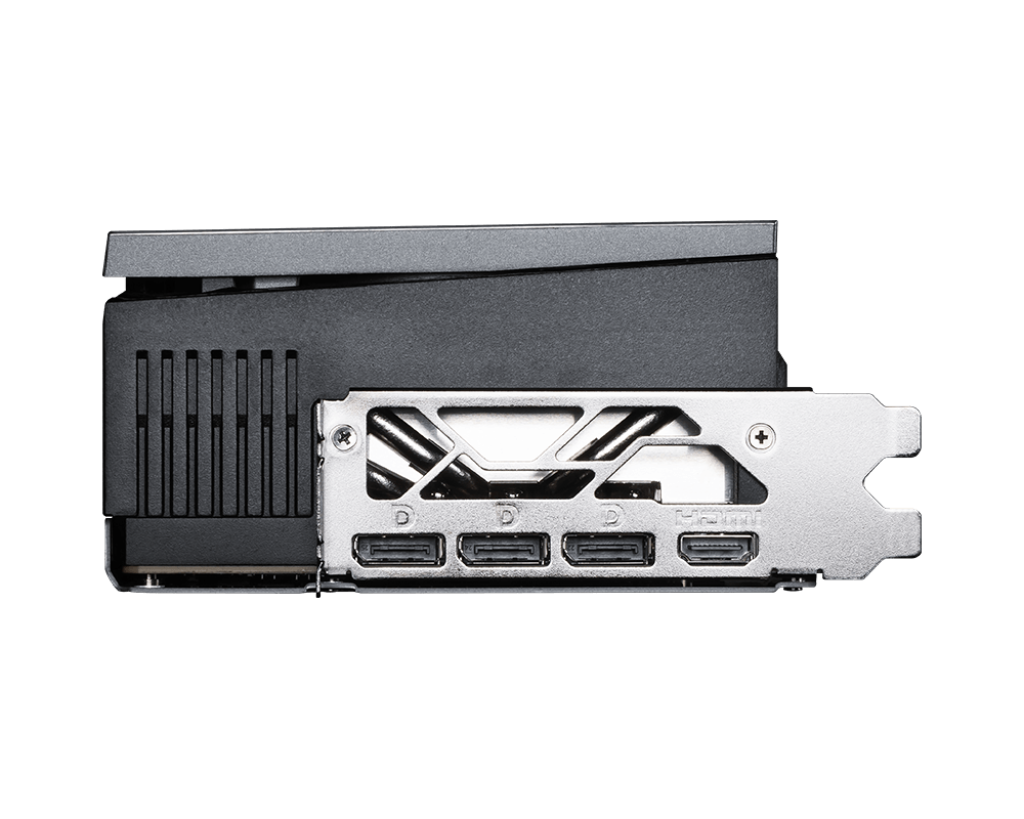

Output
DisplayPort x 3 (v2.1b)
HDMI™ x 1 (As specified in HDMI™ 2.1b: up
to 4K 480Hz or 8K 120Hz with DSC, Gaming
VRR, HDR)
HDCP Support Y
Power consumption 575W
Power connectors 16-pin x 1 (ATX 3.1 PSU recommended)
Recommended PSU 1000W
Card Dimension (mm) 357 x 151 x 76 mm
Weight (Card / Package) 2407 g / 3302 g
DirectX Version Support 12 Ultimate
OpenGL Version Support 4.6
Maximum Displays 4
G-SYNC® technology Y
Digital Maximum Resolution 7680 x 4320
