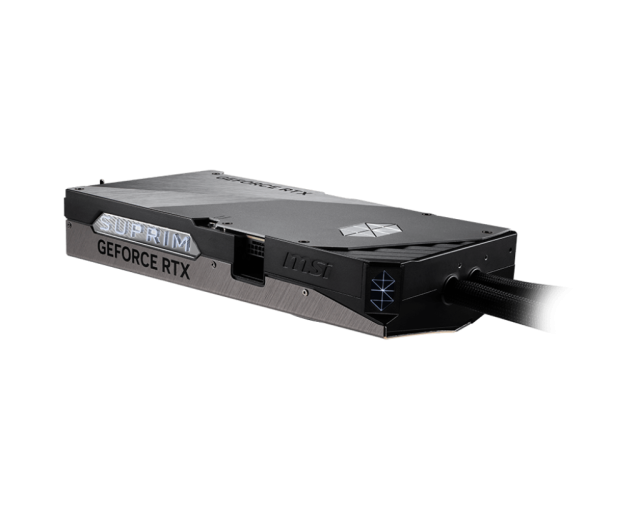

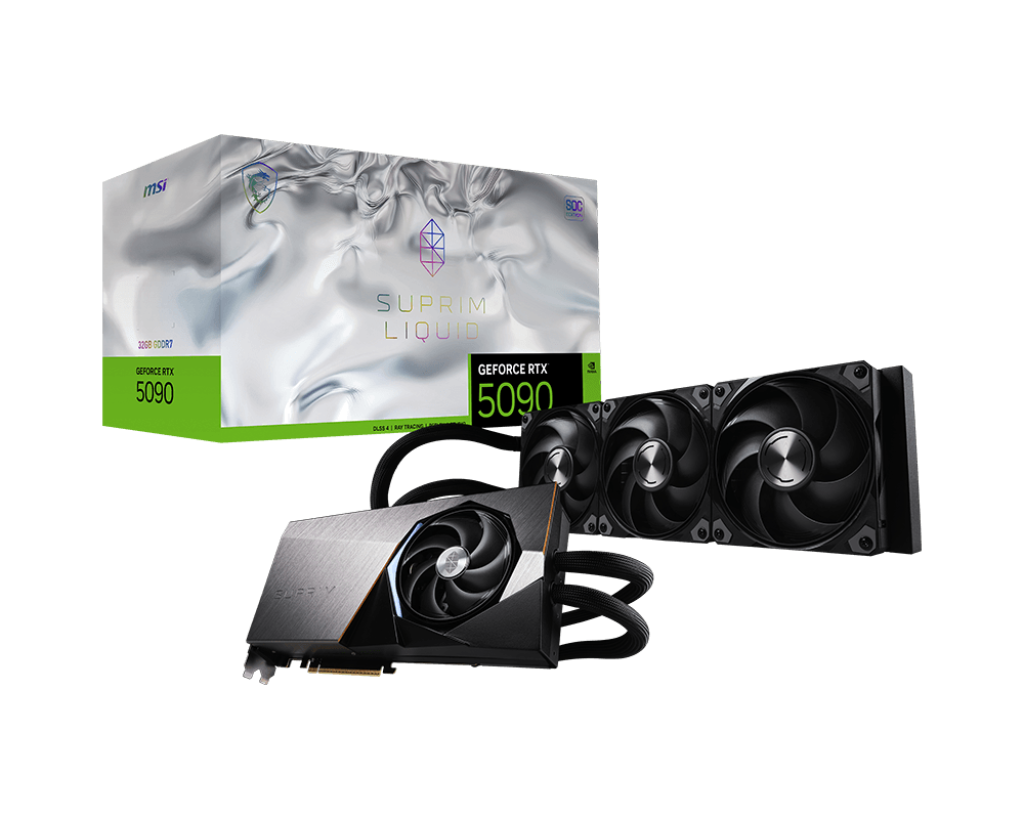

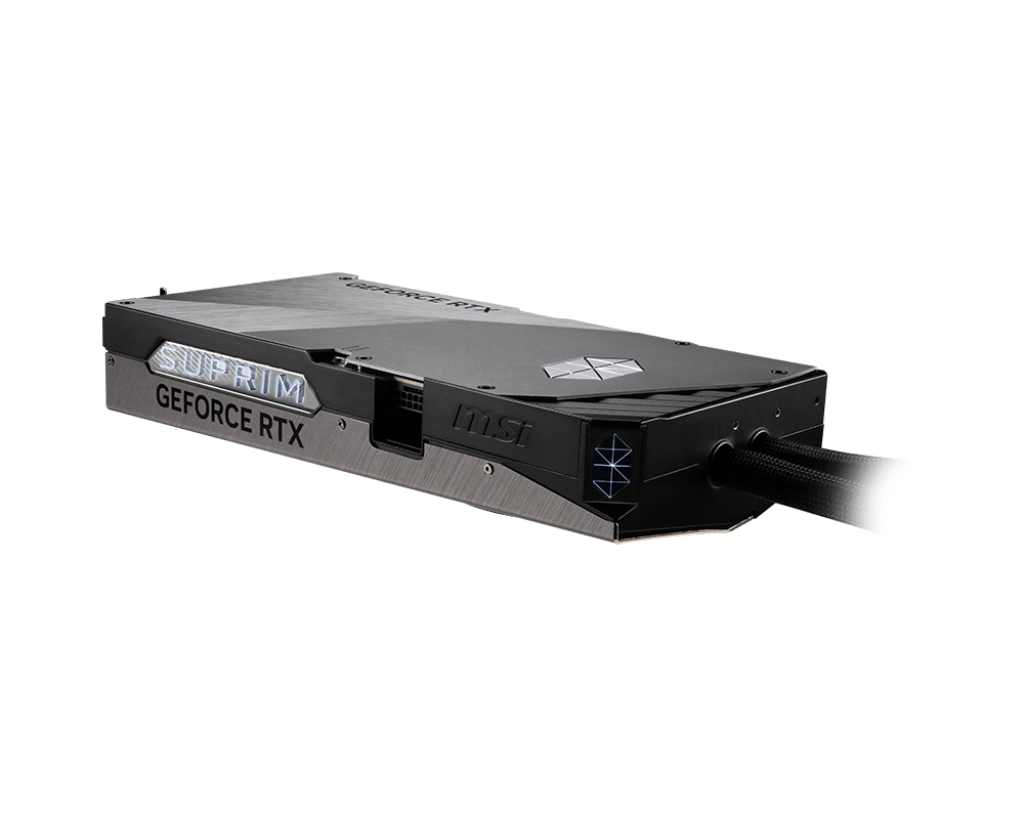

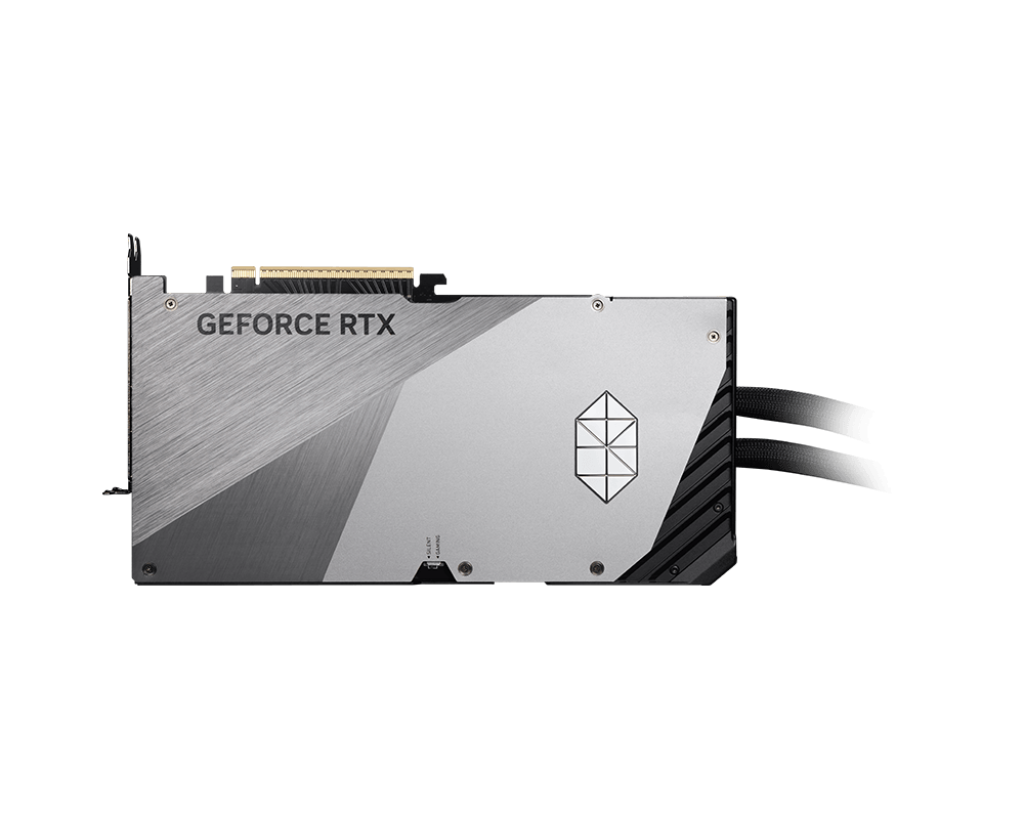

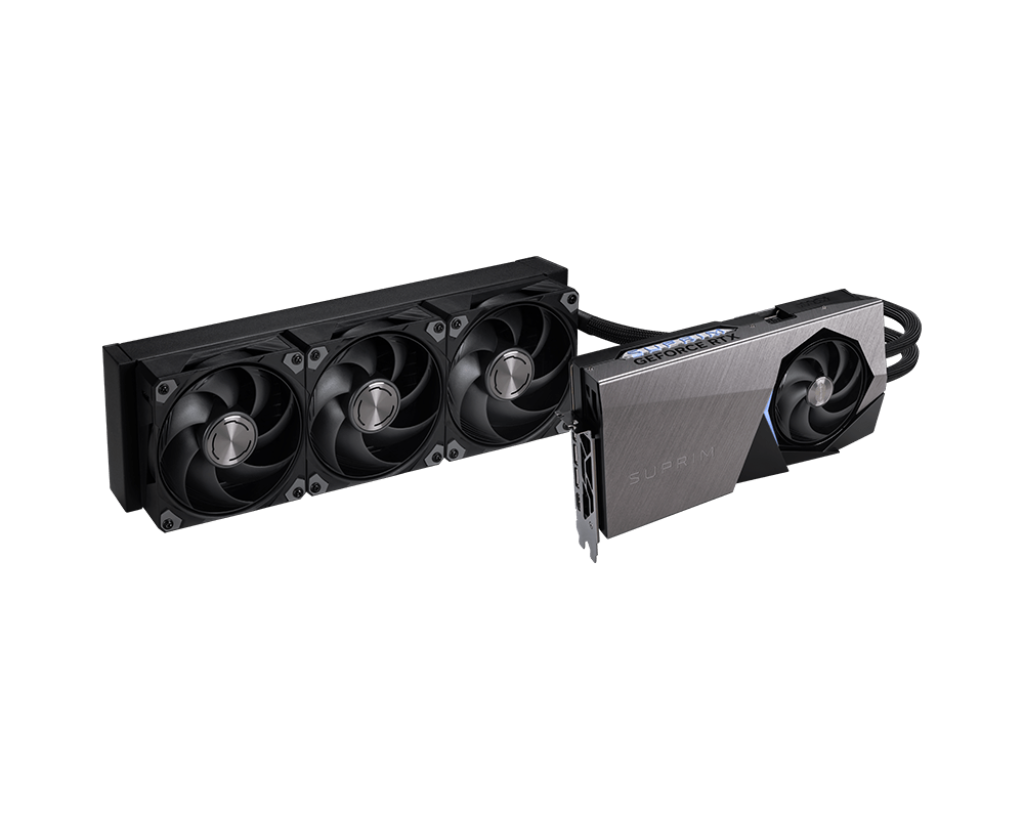

Marketing Name GeForce RTX™ 5090 32G SUPRIM LIQUID
SOC
Model Name G5090-32SLS
Graphics Processing Unit NVIDIA® GeForce RTX™ 5090
Interface PCI Express® Gen 5x 16
Core Clocks
Gaming Mode:
Extreme Performance: 2580 MHz (MSI
Center) Boost: 2565 MHz
Silent Mode:
Extreme Performance: 2527 MHz (MSI
Center) Boost: 2512 MHz
CUDA® CORES 21760 Units
Memory Speed 28 Gbps
Memory 32GB GDDR7
Memory Bus 512-bit

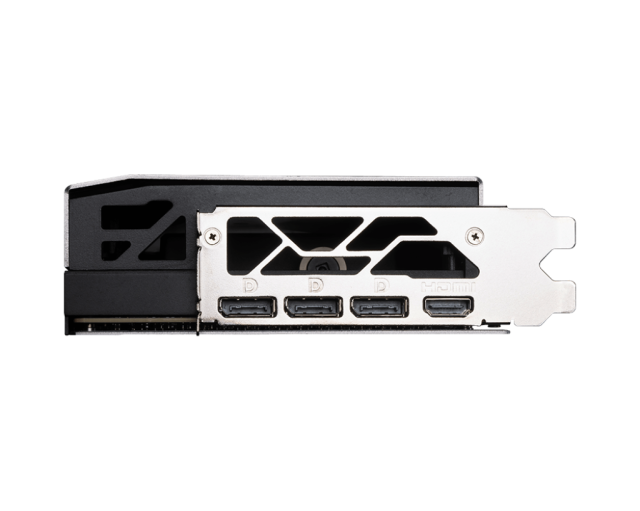

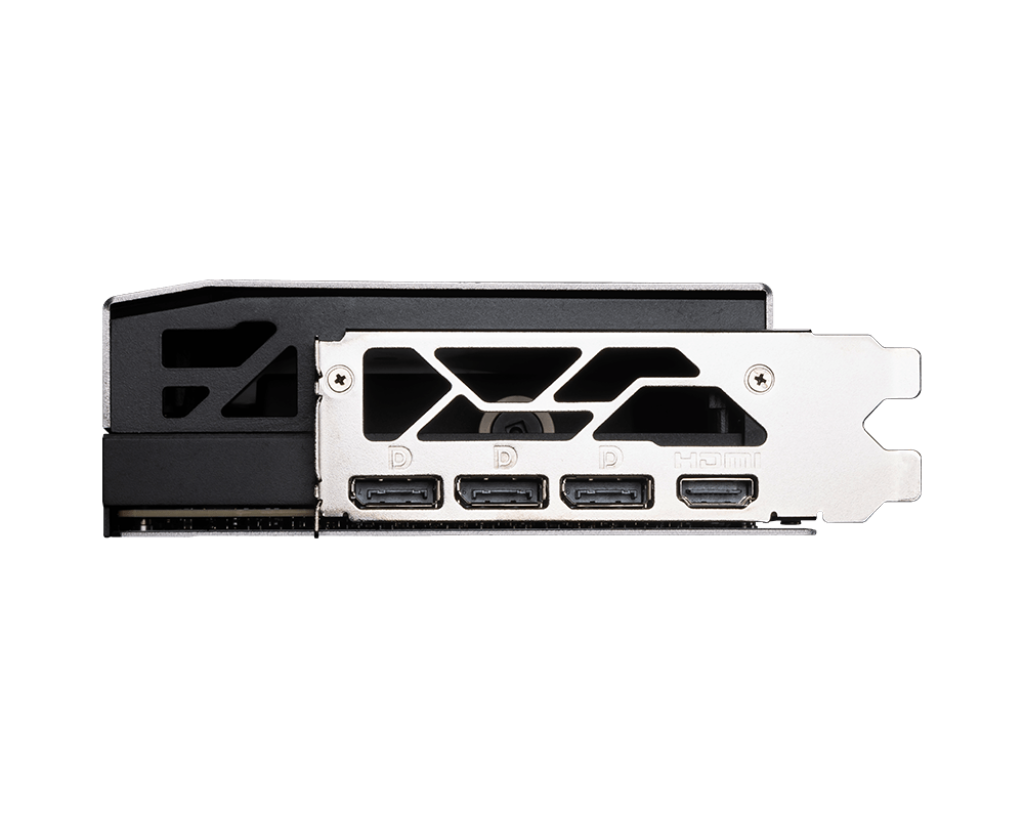

Output
DisplayPort x 3 (2.1b)
HDMI™ x 1
(As specified in HDMI™ 2.1b: up to 4K 480Hz
or 8K 120Hz with DSC, Gaming VRR, HDR)
HDCP Support Y
Power consumption Gaming mode: 600 W
Silent mode: 575 W
Power connectors 16-pin x 1 (ATX 3.1 PSU recommended)
Recommended PSU 1000 W
Card Dimension (mm)
Card: 280 x 148 x 51mm
Radiator: 394 x 121 x 55mm
Tube length: 450mm
Weight (Card / Package) 2969 g / 4273 g
DirectX Version Support 12 Ultimate
OpenGL Version Support 4.6
Maximum Displays 4
G-SYNC® technology Y
Digital Maximum Resolution 7680 x 4320
