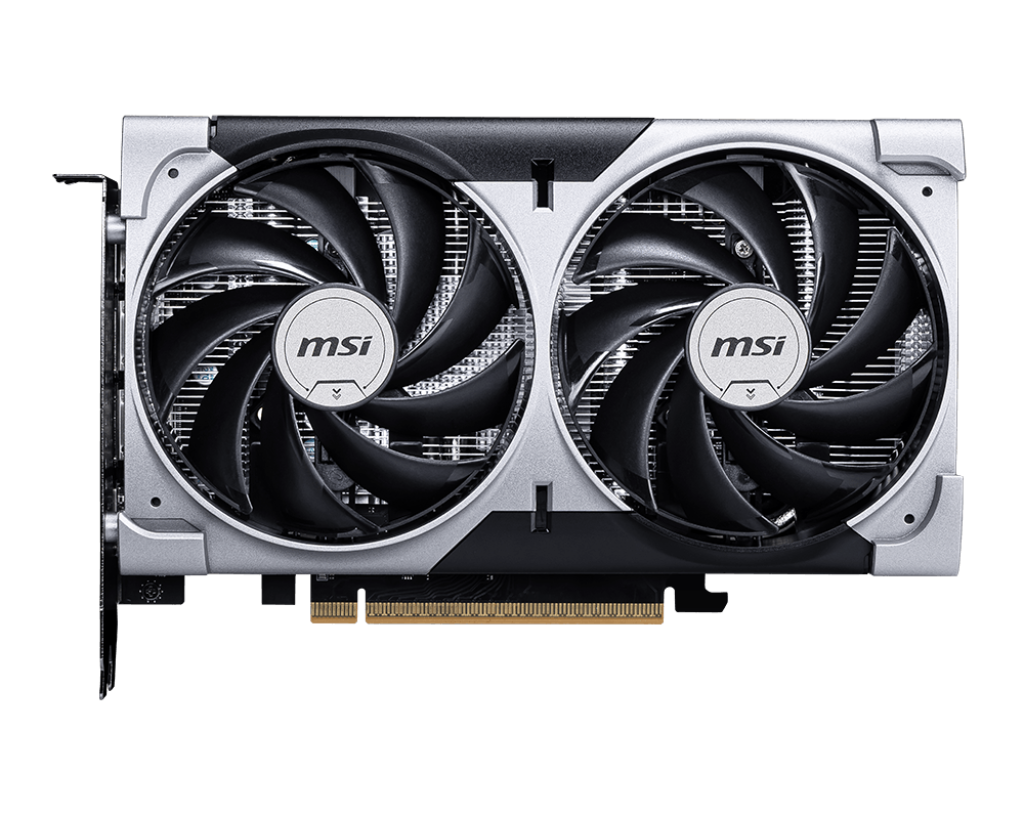

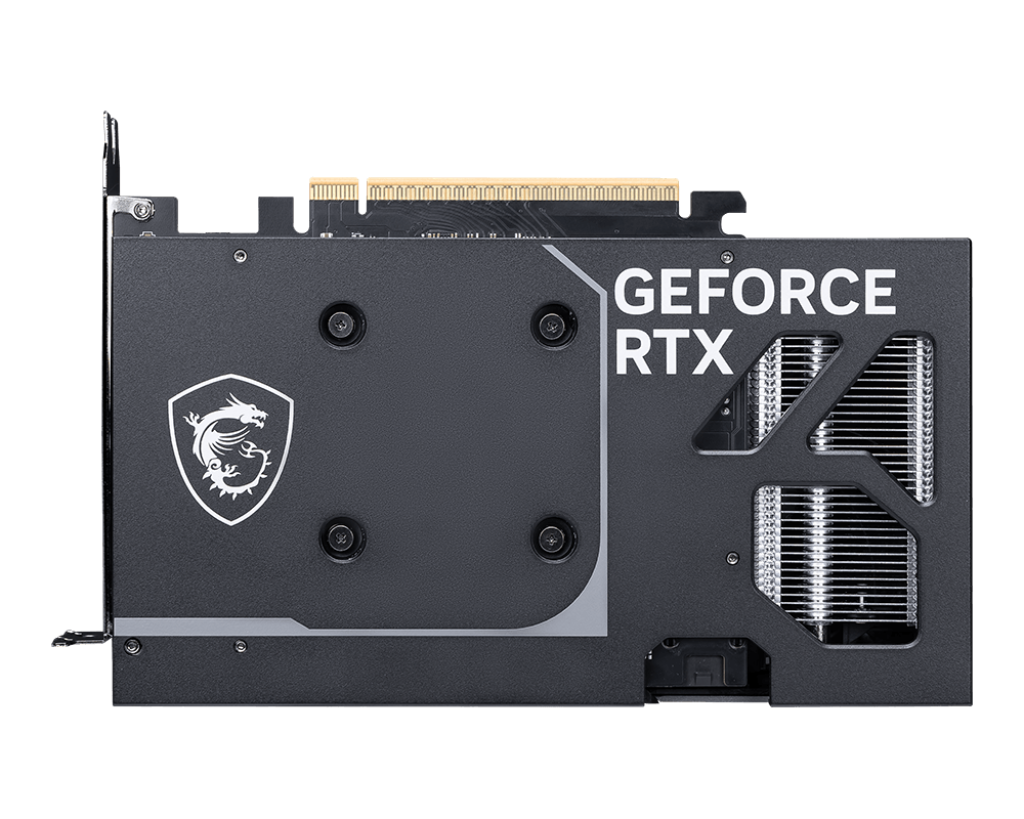

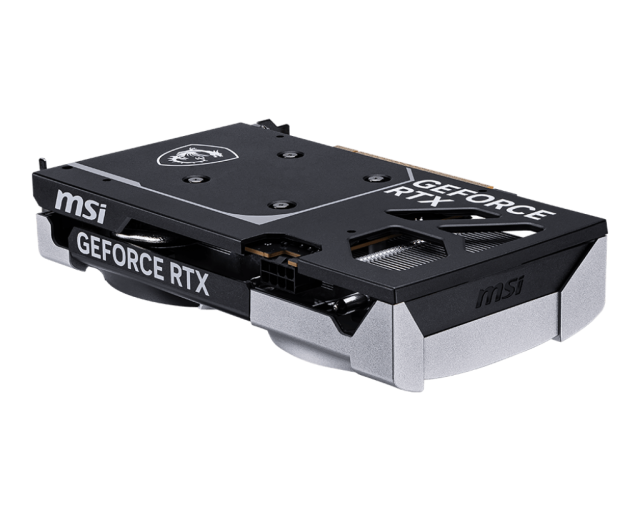

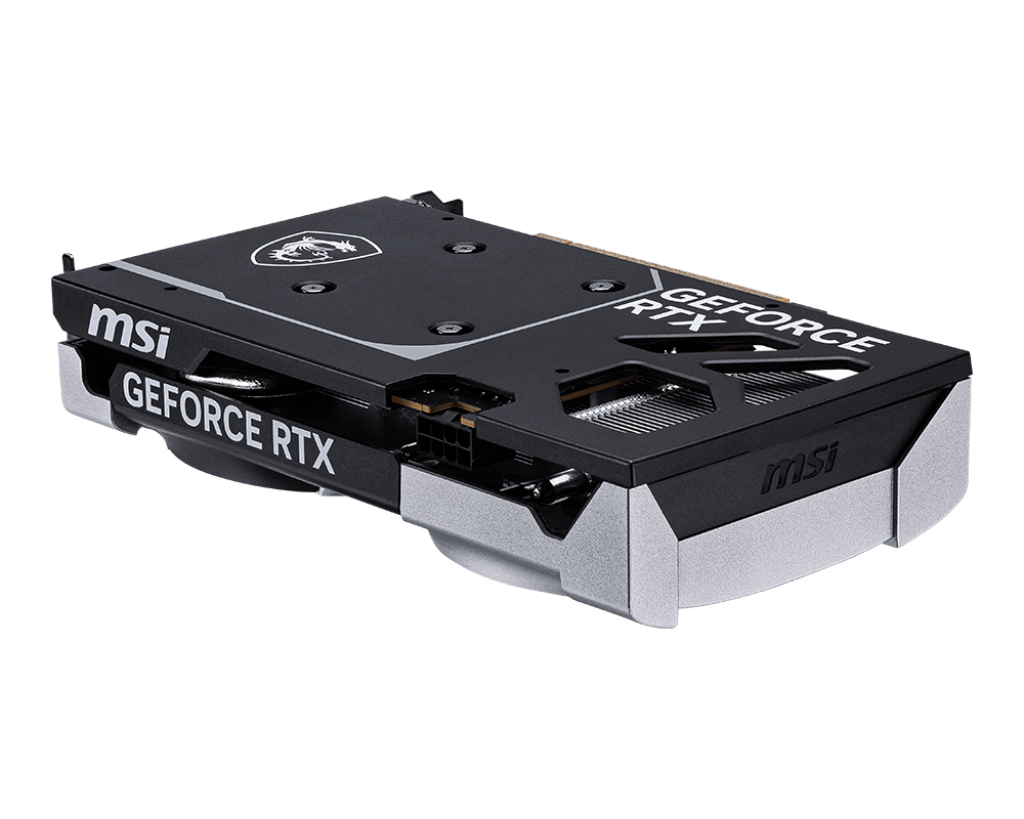

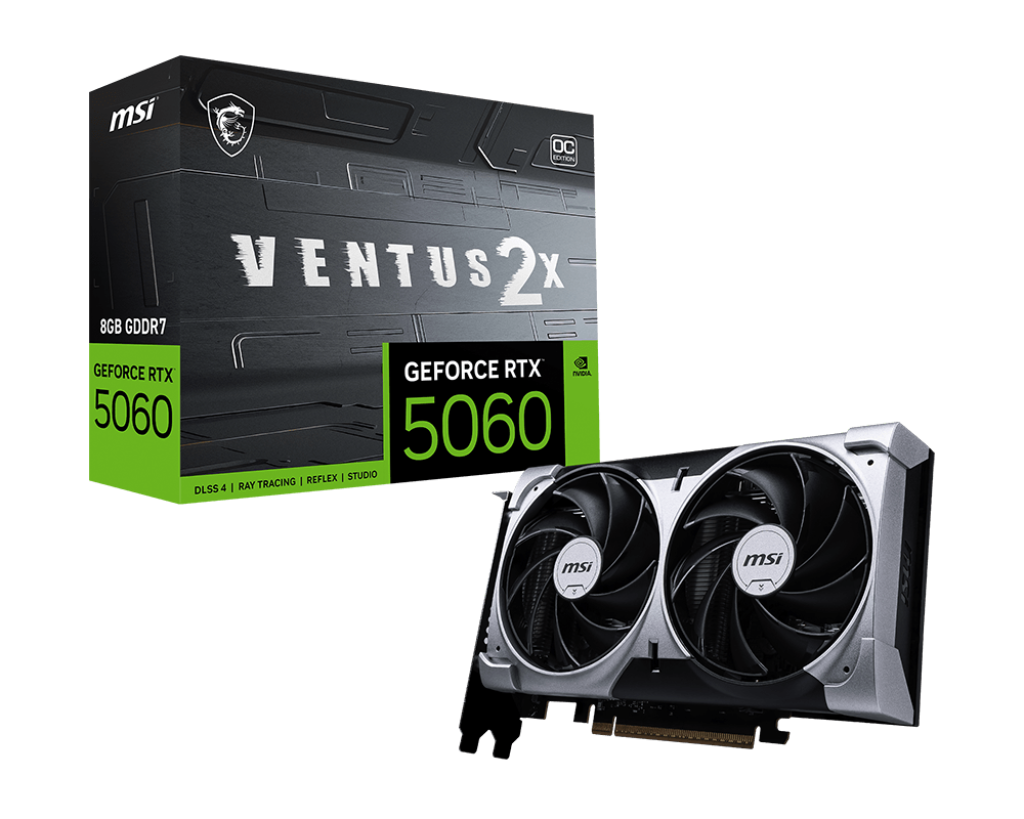

Marketing Name GeForce RTX™ 5060 8G VENTUS 2X OC
Model Name G5060-8V2C
Graphics Processing Unit NVIDIA® GeForce RTX™ 5060
Interface PCI Express® Gen 5 x16 (uses x8)
Core Clocks
Extreme Performance: 2535 MHz (MSI
Center)
Boost: 2527 MHz
CUDA® CORES 3840 Units
Memory Speed 28 Gbps
Memory 8GB GDDR7
Memory Bus 128-bit
Output

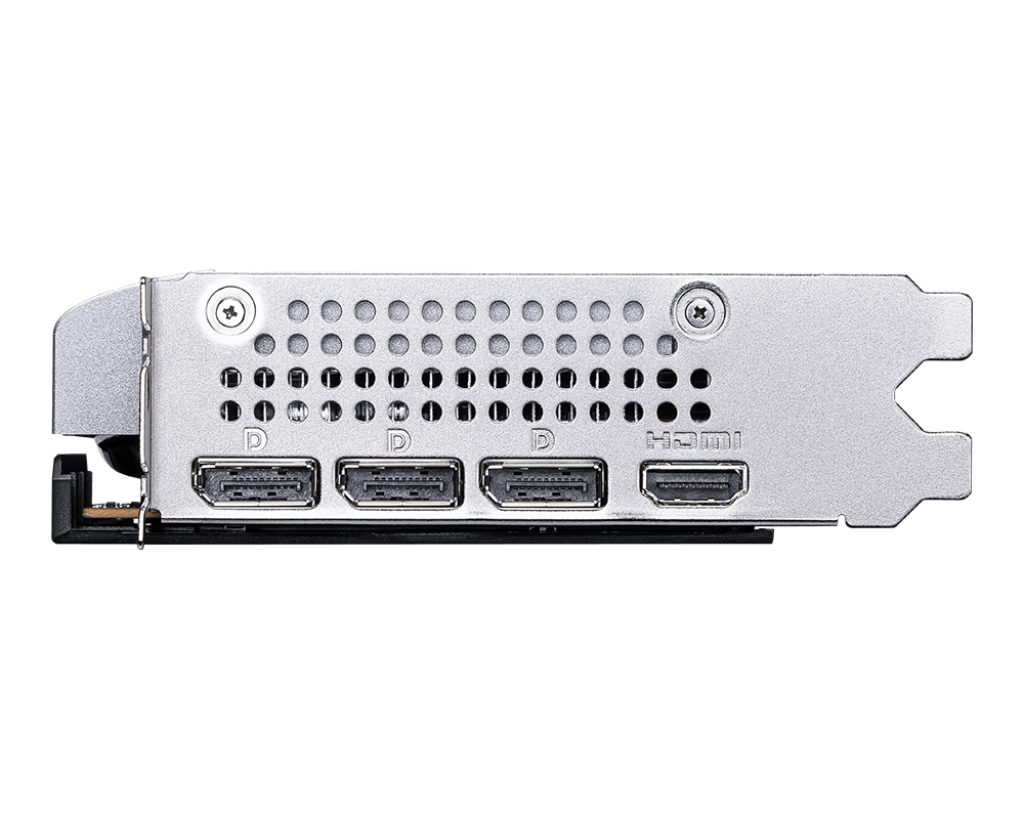

DisplayPort x 3 (v2.1b)
HDMI™ x 1 (As specified in HDMI™ 2.1b: up
to 4K 480Hz or 8K 120Hz with DSC, Gaming
VRR, HDR)
HDCP Support Y
Power consumption 145 W
Power connectors 8-pin x1
Recommended PSU 550 W
Card Dimension (mm) 197 x 120 x 41 mm
Weight (Card / Package) 511 g / 829 g
DirectX Version Support 12 Ultimate
OpenGL Version Support 4.6
Maximum Displays 4
G-SYNC® technology Y
Digital Maximum Resolution 7680 x 4320
