| Marketing Description |

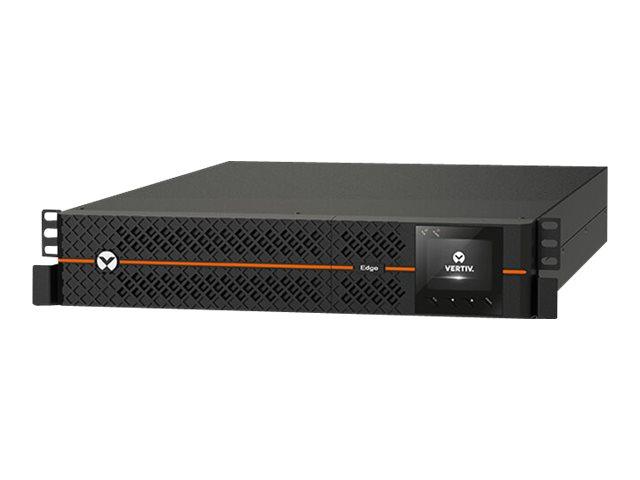

| The Vertiv EDGE uninterruptible power supply (UPS) is designed to protect and extend the life of your electronic devices in school, home and office. This 2200VA UPS offers cost-effective protection from downtime and damage caused by power outages, brownouts, sags, surges or noise interference. Automatic Voltage Regulation (AVR) extends battery life and safeguards critical equipment. Voltage regulation is from 144 to 290 VAC without using the battery. With advanced pure sine wave output, this line interactive UPS ensures availability of critical IT applications like network closets and small data centers. This battery backup allows orderly shutdown of critical equipment. It takes less than 6 milliseconds transfer time to battery. |
| Product Features |
- High output to maximize available power and protect more equipment
- High efficiency, up to 98% in line mode, to deliver energy savings
- Advanced AVR protection with 2x boost and 1x buck tap to protect the battery by smoothing out spikes, sags and brownouts
- Color graphic LCD display
- Add up to 6 extended run battery cabinets to increase runtime
- External battery cabinets with auto-detection
- Rack/tower 3kVA model with short depth for flexible installation
- "Green mode" operation: in battery mode with small loads, the UPS will automatically shut down to protect batteries, optimize energy savings
- Programmable outlets to disable non-critical loads, optimize battery runtime
- Input breaker device for additional protection to the load in worst case failures
- Smart fan speed control for lower audible noise
- Remote connectivity via network interface or serial connection to monitor power consumption and configure user-defined alert notifications to prevent downtime
|
| General |
| Device Type |
UPS - rack-mountable / external |
| Height (Rack Units) |
2U |
| Power Device |
| UPS Technology |
Line interactive |
| Input Voltage |
AC 230 V |
| Input Voltage Range |
AC 166 - 278 V |
| Frequency Required |
55 - 65 Hz |
| Input Connectors |
1 x power IEC 60320 C14 |
| Power Output Connectors Details |
6 x power IEC 60320 C13
1 x power IEC 60320 C19 |
| Output Voltage |
AC 200/208/220/230/240 V |
| Power Capacity |
1980 Watt / 2200 VA |
| Output Waveform |
Sinewave |
| Surge Suppression |
Yes |
| Surge Energy Rating |
624 Joules |
| Circuit Protection |
Circuit breaker |
| Efficiency |
97% line mode |
| Power Factor (PF) |
0.9 |
| Battery |
| Quantity |
6 |
| Technology |
Lead Acid |
| Capacity |
9 Ah |
| Run Time (Up To) |
4.4 min at full load
8 min at 70% load
14 min at 50% load
39 min at 20% load |
| Recharge Time |
3 hours |
| Transfer Time |
6 ms |
| Features |
Spill-proof, valve-regulated |
| Networking |
| Remote Management Interface |
USB |
| Expansion / Connectivity |
| Interfaces |
1 x USB |
| Expansion Slots |
1 (total) / 1 (free) x Liebert IntelliSlot |
| Miscellaneous |
| Included Accessories |
Tower stand, 4-post rail rack mounting kit |
| Cables Included |
USB cable |
| Features |
Emergency power off, LCD display, Automatic Voltage Regulation (AVR), programmable load outlets |
| Compliant Standards |
CB, RoHS, REACH, ISTA 2A, EN 60020-1:2008+A1:2013 |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - electrical components and functions - 2 years |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
40 °C |
| Humidity Range Operating |
20 - 90% |
| Dimensions & Weight |
| Width |
43.8 cm |
| Depth |
63 cm |
| Height |
8.8 cm |
| Weight |
27 kg |
| Dimensions & Weight (Shipping) |
| Shipping Width |
60 cm |
| Shipping Depth |
76 cm |
| Shipping Height |
24 cm |
| Shipping Weight |
33 kg |
