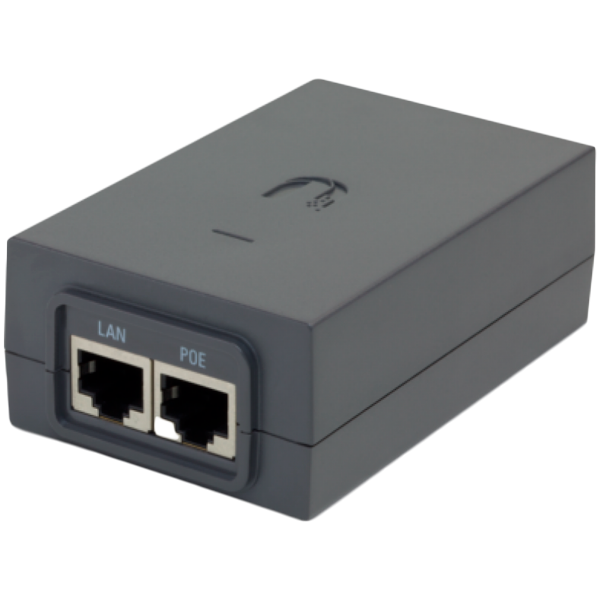

Ubiquiti PoE Injector, 24VDC, 24W, Gigabit
Ubiquiti PoE Injector, 24VDC, 24W, Gigabit

Ubiquiti PoE Injector, 24VDC, 24W, Gigabit

SKU: POE-24-24W-G-EU
ID: #35267
Цена: 33,00 лв.
Цената е с вкл. ДДС

Характеристики

Общ брой портове: 2
Power Over Ethernet (PoE): Да
Захранване: 24 V
Гаранция (месеца): 24

Бърза Поръчка

Описание

PoE Injector, 24VDC, 24W, Gigabit

POE-24-24W-G
Dimensions 88 x 57 x 33 mm (3.47 x 2.24 x 1.30")
Weight 158.5 g
Output Voltage 24VDC @ 1.0A
LAN Activity Indicator No
Gigabit LAN Port Yes
Remote Reset Capability Yes
Reset Button Yes
Rated Voltage 100-240VAC @ 50/60Hz
Input Current 0.6A @ 120VAC, 0.4A @ 240VAC
Inrush Current <60A Peak @ 120VAC, <120A Peak @ 230VAC
Efficiency 80+%
Output Ripple 1% Max.
Switching Frequency 65 kHz
Line Regulation ≤ 3%
Load Regulation ≤ 5%
2-Pair Powering Pins 4, 5 (+) and Pins 7, 8 (-)
4-Pair Powering -
Operating Temperature 0 to 40° C (32 to 104° F)
Storage Temperature -30 to 70°C (-22 to 158° F)
Operating Humidity 35 to 95% Noncondensing
AC Connector IEC-320 C6
Data IN / PoE RJ45 Shielded Socket
Surge Protection Difference and Common Mode
Clamping Protection 11V Data, 60V Power
Max. Surge Discharge 1500A (8/20 μs) Power
Peak Pulse Current 36A (10/1000 μs) Data
Shunt Capacitance <5 pF data
Response Time <1 ns
Certifications CE, FCC, IC, UL
