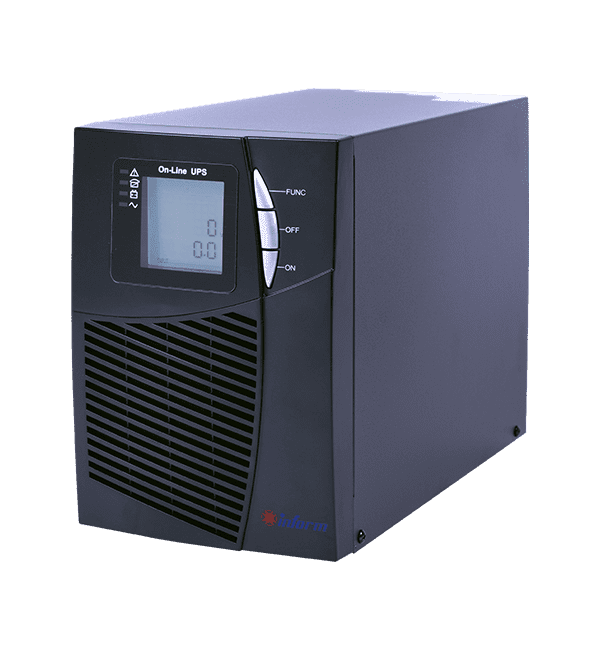

UPS Inform Sinus SES210 1000VA, On-Line, Tower
UPS Inform Sinus SES210 1000VA, On-Line, Tower

UPS Inform Sinus SES210 1000VA, On-Line, Tower

SKU: SES 210 / 879011001000
ID: #40404
Цена: 367,00 лв.
187,64 €
Цената е с вкл. ДДС

Характеристики

Капацитет: 1000VA
Тип: ON Line
Формфактор: Tower
Брой изводи: 3
Тип изводи: 2 x IEC 320 C13, 1 x Schuko (DIN)
Слотове за свързване: 1 x USB 2.0, 1 x Ethernet (RJ-45), 1 x RS232

Бърза Поръчка

Описание

Communication
Standard RS232, USB, RJ45 (power surge-lightning protection);Optional SNMP and Relay Card
Battery
Battery Type 12 V / Maintenance-free lead acid batteries;Charge Time 4 hour 90% capacity (typical);Charge Current 1A (max.);Voltage 24VDC;QTY 2 x 12V / 7Ah;Cold Start Present
Display
LED Display Utility or Bypass, Battery Low, Battery Abnormal, Overload, UPS Off, UPS Abnormal;LCD Display Input / Output Voltage and Frequency, Load %, Battery Voltage, Internal Temperature
Standarts
EN 62040-1-1 (safety), EN 62040-2 (EMC), EN 62040-3 (performance)
Auidible Alarms
Mains fault, Low Battery, Overload, UPS Failure
Environment
Operating Temperature / Storage Temperature 0°C ~ +40°C / -25OC ~ +55OC;Humidity 0 - 95% (non-condensing);Altitude 0 - 1500 m;Noise Level (1m distance) < 50 dBA;Protection Level IP20
Output
Power Factor 0.9;Output Voltage 200/ 208/ 220/ 230/ 240VAC;Voltage Regulation ±2%;Frequency 50/60 Hz;Frequency Regulation ±0.1%;Output Voltage Harmonic (THDv) ≤3% (linear load); ≤5% (non-linear load);Transfer Time Online Mode - Battery Mode: 0ms, Inverter - Bypass: 4ms (typical);Crest Factor 3:1;Overload 120% 60s, 150% 200ms;Efficiency > 88%;Outputs 2xIEC + 1xSchuko;ECO mode Present;Frequency Converter Present
Input
Input Voltage Range 110VAC - 300VAC;Nominal Voltage 200/ 208/ 220/ 230/240VAC;Frequency 50/60 Hz ±10% (Auto-sensing), 40-70Hz ( @generator mode );Phase 1Ph - N – PE;Power Factor ≥0.98
Weight
9.3 - 10.3
Dimensions
144x209x293
