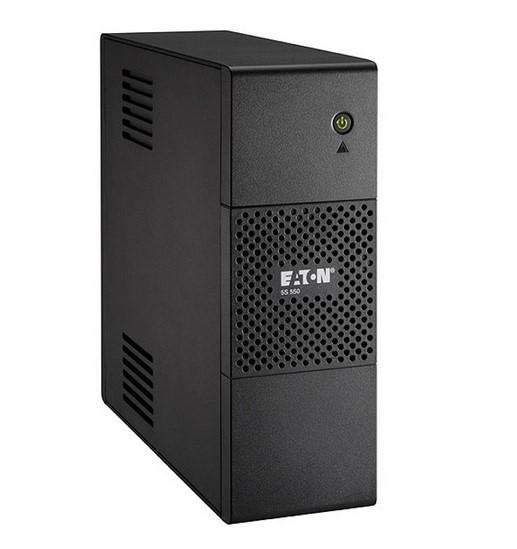

| Marketing Description |
| The Eaton 5S UPS provides cost effective line interactive backup power and automatic voltage regulation (AVR) for small and medium businesses. Suited for workstations, desktop PCs, telephone equipment, this product also brings internet and Ethernet protection With its 4 IEC outlets ( 3 with battery backup and surge protection and one with lightning protection only), It can be placed as a standalone tower or under a computer monitor and its slim line design saves space. Furthermore, the 5S possesses an audible alarm to warn you when there is a power problem. |
| Product Features |
- Power management: enhance your power protection capabilities and ensure safe system shutdown
- LCD display: access critical UPS information including battery time and outage tracking in a single screen view with the user friendly LCD
- Eco-control: save up to 30 percent on energy consumption by shutting down non-essential peripherals when the computer is turned off
- Convenient form factor: fit the 5S easily into tight spaces with its slim form factor
- Surge protection: provide surge protection for network phone lines, cable TV and satellite applications
|
| General |
| Device Type |
UPS - external |
| Colour |
Black |
| Power Device |
| UPS Technology |
Line interactive |
| Input Voltage |
AC 230 V |
| Input Voltage Range |
AC 175 - 275 V |
| Frequency Required |
50 - 60 Hz |
| Input Connectors |
1 |
| Power Output Connectors Details |
1 x power IEC 60320 C13 (surge)
3 x power IEC 60320 C13 (UPS and surge) |
| Output Voltage |
AC 230 V ± 10% |
| Power Capacity |
330 Watt / 500 VA |
| Dataline Surge Protection |
Network/phone line - RJ-45/RJ-11 - 1 input line / 1 output line |
| Surge Suppression |
Yes |
| Battery |
| Run Time (Up To) |
10 min at half load
6 min at 70% load |
| Networking |
| Remote Management Interface |
USB |
| Expansion / Connectivity |
| Interfaces |
1 x management (USB) - 4 pin USB Type B |
| Miscellaneous |
| Cables Included |
USB cable - external |
| Features |
Automatic Voltage Regulation (AVR) |
| Compliant Standards |
CB, IEC 62040-3, IEC 62040-1-1 |
| Software / System Requirements |
| OS Required |
Linux, Apple MacOS X, Microsoft Windows Vista / 7 / 8 |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 2 years
Limited warranty - batteries - 2 years |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
40 °C |
| Dimensions & Weight |
| Width |
8.7 cm |
| Depth |
26 cm |
| Height |
25 cm |
| Weight |
4.96 kg |
