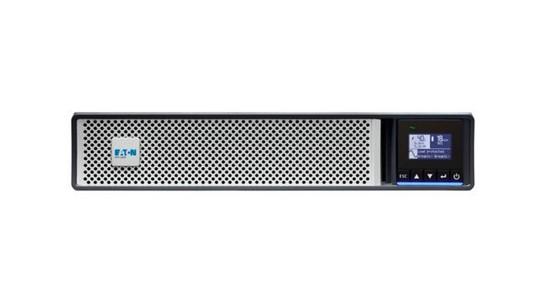

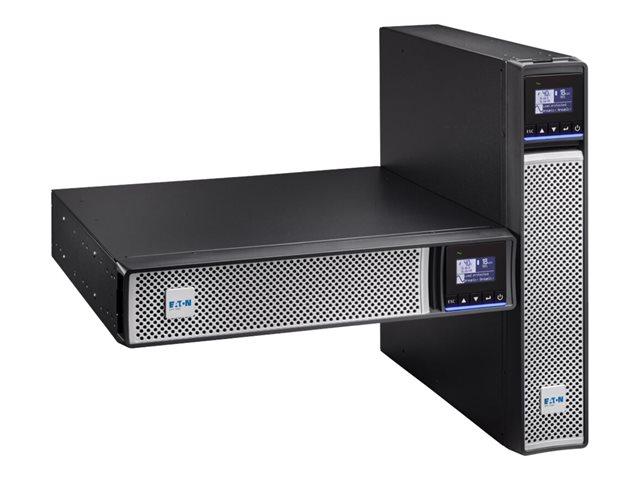

UPS EATON 5PX 2200i RT2U Netpack G2, 2200VA/2200W, Line-Interactive, Rack 2U / Tower

SKU: 5PX2200IRTNG2

ID: #40606

Цена: 3 541,00 лв.

Цената е с вкл. ДДС

Характеристики

Капацитет: 2200VA / 2200W

Тип: Line Interactive

Формфактор: Rack / Tower

Брой изводи: 11

Тип изводи: 1 x power IEC 60320 C20 / 2 x power IEC 60320 C19 / 8 x power IEC 60320 C13

Слотове за свързване: 1 x USB Type B, 1 x RS232, 1 x mini Terminal Block, 4 x dry contacts (DB9)

Гаранция (месеца): 24

Бърза Поръчка

Съгласявам се с общите условия и обработка на личните ми данни.

Добави за сравнение

Описание

EATON 5PX 2200i RT2U Netpack G2 2200 Watt 5min including Network management card


Manufacturer	EATON
Manufacturer Part No	5PX2200IRTNG2

Marketing Description
The Eaton 5PX UPS provides line-interactive, backup power and scalable runtimes for servers, storage systems, VoIP gear and network equipment. Designed with multiple managed outlet segments, you can monitor energy consumption and view it on the new LCD screen. It was also designed to provide more available power, has an efficiency rating of up to 99% and offers additional runtime with extended battery modules.
General
Device Type	UPS - rack-mountable / external
Height (Rack Units)	2U
Power Device
UPS Technology	Line interactive
Input Voltage Range	AC 160 - 294 V
Input Voltage Range (Adjustable)	AC 150 - 294 V
Frequency Provided	50/60 Hz ± 0.1Hz
Frequency Required	47 - 70 Hz
Input Connectors	1 x power IEC 60320 C20
Power Output Connectors Details	8 x power IEC 60320 C13 2 x power IEC 60320 C19
Output Voltage	AC 200/208/220/230/240 V + 6% / - 10% - 50/60 Hz
Power Capacity	2200 Watt / 2200 VA
Output Waveform	Sinewave
Battery
Run Time (Up To)	50 min at 300 Watts 28 min at 500 Watts 16 min at 800 Watts 9 min at 1200 Watts 4 min at 1800 Watts
Networking
Remote Management Interface	RS-232, USB, Ethernet 10/100/1000
Expansion / Connectivity
Interfaces	1 x management (RS-232) - RJ-45 1 x management (USB) - 4 pin USB Type B 1 x management (Gigabit Ethernet) - RJ-45
Expansion Slots	1 (total) / 0 (free) x Expansion Slot
Miscellaneous
Included Accessories	Tower stand
Rack Mounting Kit	Included
Features	Advance Battery Management (ABM), LCD display, hot-swappable batteries
Compliant Standards	FCC Class B certified, TUV, CISPR 22 Class B, UL 1778, CB, IEC 62040-2, cTUVus, CSA 22.2, EN 62040-2, EAC, IEC 62040-1, EN 62040-1, UL 2900-1, IEC 62443-4-2, UKCA
Environmental Standards
ENERGY STAR	Yes
Manufacturer Warranty
Service & Support	Limited warranty - 3 years Limited warranty - batteries - 2 years
Environmental Parameters
Min Operating Temperature	0 °C
Max Operating Temperature	40 °C
Sound Emission	40 dBA
Dimensions & Weight
Width	43.8 cm
Depth	60.3 cm
Height	8.55 cm
Weight	28.2 kg
