Точка за достъп Ubiquiti U7 Pro XG WiFi 7
Точка за достъп Ubiquiti U7 Pro XG WiFi 7
Точка за достъп Ubiquiti U7 Pro XG WiFi 7
Точка за достъп Ubiquiti U7 Pro XG WiFi 7
Точка за достъп Ubiquiti U7 Pro XG WiFi 7
Точка за достъп Ubiquiti U7 Pro XG WiFi 7
Точка за достъп Ubiquiti U7 Pro XG WiFi 7

Точка за достъп Ubiquiti U7 Pro XG WiFi 7

SKU: U7 PRO XG
ID: #42244
Цена: 421,00 лв.
Цената е с вкл. ДДС

Характеристики

Стандарт Wi-Fi: 802.11be (Wi-Fi 7)
Стандарти: 802.11a/b/g/n/ac/ax/be
Честота (GHz): 2.4 / 5.0 / 6 GHz
Скорост, Mbps: 688 + 5800 + 4300 Mbps
Портове: 1 x 10 GbE
Скорост на трансфер (Mb/s): 1000,2500,5000,10000 Mbps
Захранване: PoE+
Гаранция (месеца): 24

Бърза Поръчка

Описание

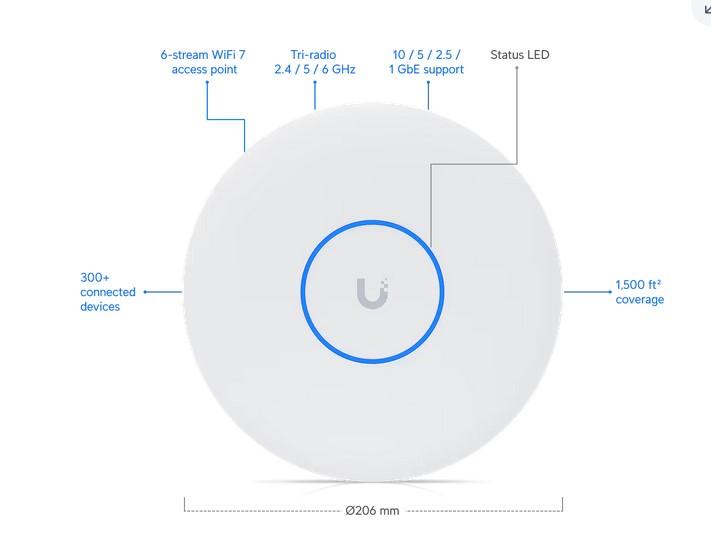

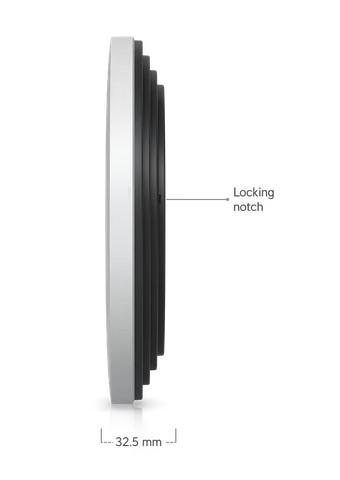

Dimensions
Ø206 x 32.5 mm (Ø8.1 x 1.3")
WiFi Standard
WiFi 7
Spatial Streams
6
Coverage Area
140 m² (1,500 ft²)
Max. Client Count
300+
Uplink
10 GbE

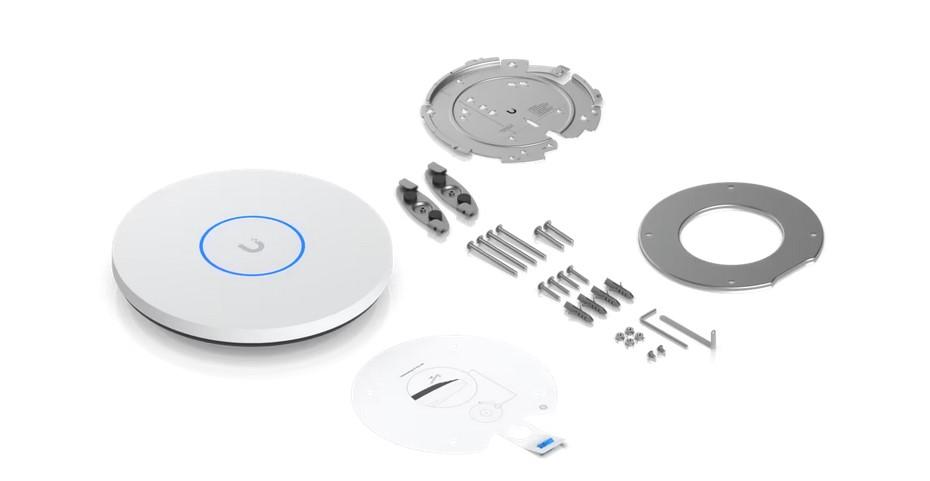

Mounting
Ceiling, Wall (Lite Mount Included)
Power Method
PoE+

Performance
MIMO


6 GHz
2 x 2 (DL/UL MU-MIMO)


5 GHz
2 x 2 (DL/UL MU-MIMO)


2.4 GHz
2 x 2 (DL/UL MU-MIMO)
Max. Data Rate


6 GHz
5.8 Gbps (BW320)


5 GHz
4.3 Gbps (BW240)


2.4 GHz
688 Mbps (BW40)
Antenna Gain


6 GHz
6 dBi


5 GHz
5 dBi


2.4 GHz
4 dBi
Max. TX Power


6 GHz
24 dBm


5 GHz
26 dBm


2.4 GHz
23 dBm
Max. BSSIDs
8 per Radio
Supported Data Rates


802.11be (WiFi 7)
6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320) 5 GHz: 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)


802.11ax (WiFi 6)
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)


802.11ac (WiFi 5)
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)


802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

Features
Wireless Meshing
Yes
Band Steering
Yes
802.11v BSS Transition Management
Yes
802.11r Fast Roaming
Yes
802.11k Radio Resource Management (RRM)
Yes
Advanced Radio Management
Yes
Passpoint (Hotspot 2.0)
Yes
Captive Hotspot Portal


Custom Branding Landing Page
Yes


Voucher Authentication
Yes


Payment-Based Authentication
Yes


External Portal Server Support
Yes


Password Authentication
Yes


Guest Network Isolation
Yes
Private Pre-Shared Key (PPSK)
Yes
WiFi Speed Limiting
Yes
Client Device Isolation
Yes
WiFi Schedules
Yes
RADIUS over TLS (RadSec)
Yes
Dynamic RADIUS-assigned VLAN
Yes

Hardware
Max. Power Consumption
22W
Supported Voltage Range
42.5—57V DC

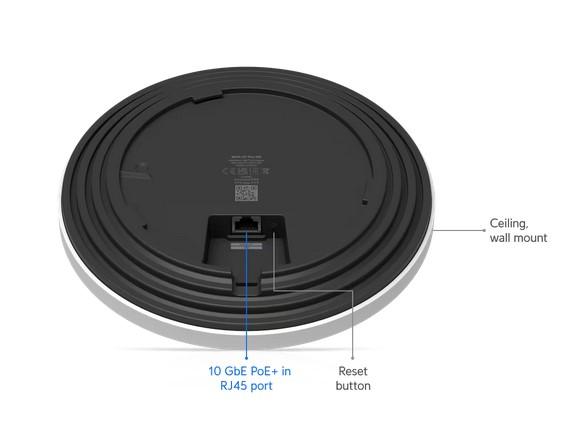

Networking Interface
(1) 10 GbE RJ45 port
Weight
750 g (1.7 lb)
Management
Ethernet
Enclosure Material
UV-stabilized polycarbonate, aluminum alloy
Mount Material
Stainless steel (SUS304), galvanized steel (SGCC)
LEDs


System
White/Blue
Channel Bandwidth
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)
Certifications
CE, FCC, IC
NDAA Compliant
Yes
Ambient Operating Temperature
-30 to 40° C (-22 to 104° F)
Ambient Operating Humidity
5 to 95% noncondensing

Software
Application Requirements


UniFi Network
Version 9.0.114 and later

https://eu.store.ui.com/eu/en/category/wifi-flagship/products/u7-pro-xg
