Сървър LENOVO ThinkSystem ST550, Xeon Silver 4210R 10C 2.4GHz 13.75MB Cache, 32GB 2933MHz RDIMM, 8x2.5in 9350-8i 2GB, 1x750W Titanium XCC Ent
изчерпан
Сървър LENOVO ThinkSystem ST550, Xeon Silver 4210R 10C 2.4GHz 13.75MB Cache, 32GB 2933MHz RDIMM, 8x2.5in 9350-8i 2GB, 1x750W Titanium XCC Ent
Сървър LENOVO ThinkSystem ST550, Xeon Silver 4210R 10C 2.4GHz 13.75MB Cache, 32GB 2933MHz RDIMM, 8x2.5in 9350-8i 2GB, 1x750W Titanium XCC Ent
Сървър LENOVO ThinkSystem ST550, Xeon Silver 4210R 10C 2.4GHz 13.75MB Cache, 32GB 2933MHz RDIMM, 8x2.5in 9350-8i 2GB, 1x750W Titanium XCC Ent
Сървър LENOVO ThinkSystem ST550, Xeon Silver 4210R 10C 2.4GHz 13.75MB Cache, 32GB 2933MHz RDIMM, 8x2.5in 9350-8i 2GB, 1x750W Titanium XCC Ent

Сървър LENOVO ThinkSystem ST550, Xeon Silver 4210R 10C 2.4GHz 13.75MB Cache, 32GB 2933MHz RDIMM, 8x2.5in 9350-8i 2GB, 1x750W Titanium XCC Ent

SKU: 7X10A0EKEA
ID: #34825

Характеристики

Серия: ThinkSystem ST550
Чипсет: Intel C621
Процесор, серия: Intel Xeon Silver (10-ядрен)
Процесор: Intel Xeon Silver 4210R 2.4/3.2 GHz
Памет, GB: 32GB DDR4 2933MHz
Максимална памет, GB: 768 GB (max)
Твърд диск, GB: Няма
Мрежа: 2x 1GbE
Мощност на захранващ блок (W): 750 W Platinum
Форм-фактор: 4U
Гаранция (месеца): 36

Направи запитване

Описание

LENOVO ThinkSystem ST550 Xeon Silver 4210R 10C 2.4GHz 13.75MB Cache 32GB 2933MHz RDIMM 8x2.5in 9350-8i 2GB 1x750W Titanium XCC Ent

Manufacturer LENOVO
Manufacturer Part No 7X10A0EKEA

Marketing Description
The Lenovo ThinkSystem ST550 2-socket 4U rack-mountable tower server provides outstanding performance and industry-leading reliability. It is ideal for small-to-medium businesses, distributed enterprises, retail, educational institutions and branch offices.
General
Type Server
Product Form Factor Tower - 4U
Embedded Security Trusted Platform Module (TPM 1.2 and TPM 2.0)
Server Scalability 2-way
Front Accessible Bays Qty 2
Hot-Swap Bays Qty 8
Localisation Region: EMEA
Processor / Chipset
CPU Intel Xeon Silver 4210R
Clock Speed 2.4 GHz
Max Turbo Speed 3.2 GHz
Number of Cores 10-core
CPU Qty 1
Max CPU Qty 2
Chipset Type Intel C621
Cache Memory
Installed Size L3 Cache - 13.75 MB
Cache Per Processor 13.75 MB
RAM
Installed Size 32 GB / 768 GB (max)
Technology DDR4 SDRAM - ECC
Effective Memory Speed 2400 MHz
Rated Memory Speed 2933 MHz
Form Factor DIMM 288-pin
Slots 12 (Total) / 11 (empty)
Features Registered, Memory Mirroring, Memory Sparing, low-voltage, mixing of different types of memory modules is not supported, slots 7 - 12 are available in two-processor configuration only, TruDDR4, 6-channel memory architecture
Configuration Features 1 x 32 GB
Hard Drive
Type No HDD
Storage Controller
Type 1 x RAID - PCIe 3.0 x8
Controller Interface Type SATA 6Gb/s / SAS 12Gb/s
Storage Controller Name ThinkSystem RAID 9350-8i
Channel Qty 8
RAID Level RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60
Buffer Size 2 GB
Optical Storage
Type No optical drive
Monitor
Monitor Type None.
Graphics Controller
Graphics Processor Matrox G200
Video Memory 16 MB
Video Interfaces VGA
Networking
Ethernet Ports 2 x Gigabit Ethernet
Ethernet Controller Intel X722
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol SNMP 3, CIM, IPMI 2.0
Remote Management Controller XClarity Controller (XCC) Enterprise
Features Wake on LAN (WoL)
Expansion / Connectivity

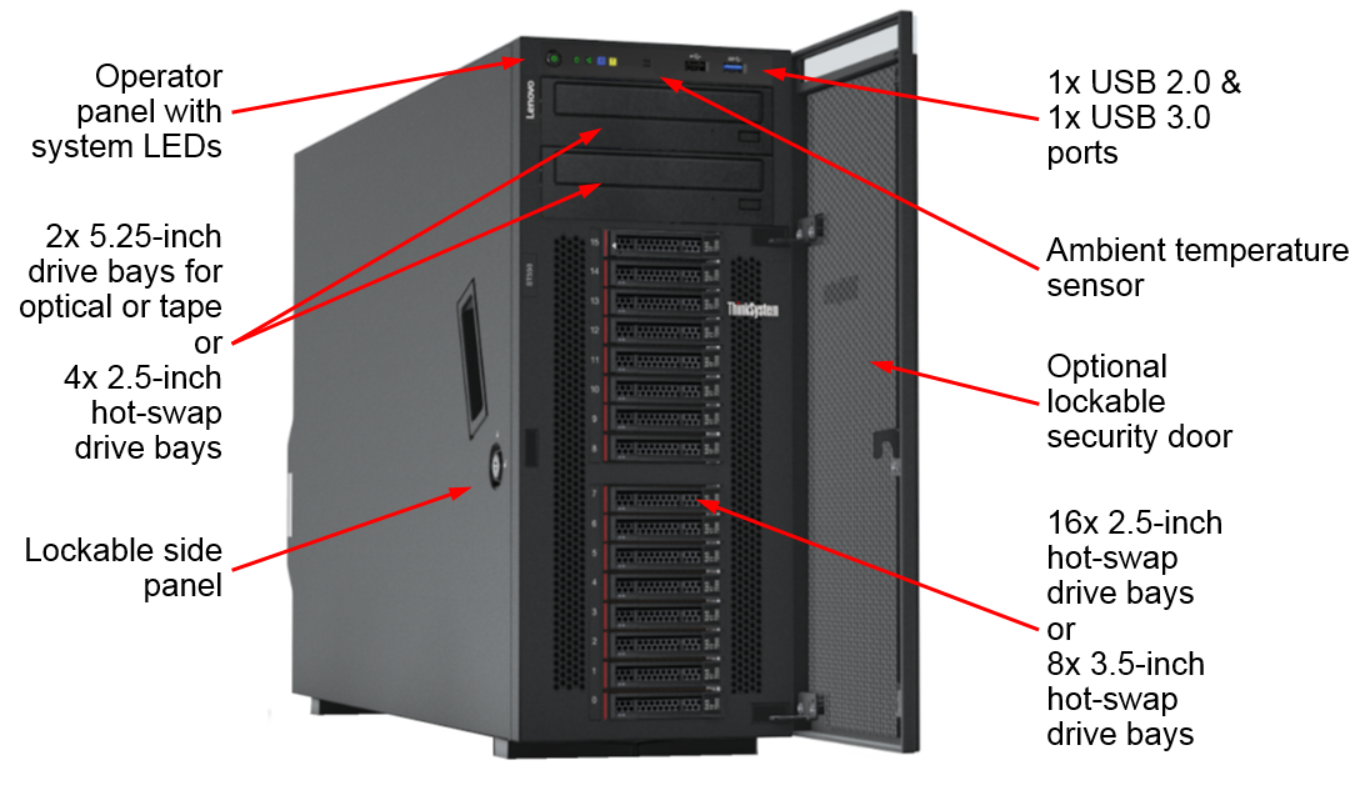

Bays 2 (total) / 2 (free) x external 5.25" x 1/2H
8 (total) / 8 (free) x hot-swap 2.5"
Slots 1 PCIe 3.0 x8 - half-length, full-height
1 (total) / 1 (free) x PCIe 3.0 x16 - half-length, full-height
1 (total) / 1 (free) x PCIe 3.0 x16 - full-length, full-height, double-width
1 (total) / 1 (free) x PCIe 3.0 x16 - full-length, full-height (x8 mode, 2 processors must be installed)
1 (total) / 1 (free) x PCIe 3.0 x16 - full-length, full-height, double-width (2 processors must be installed)
1 PCIe 3.0 x8 - full-length, full-height

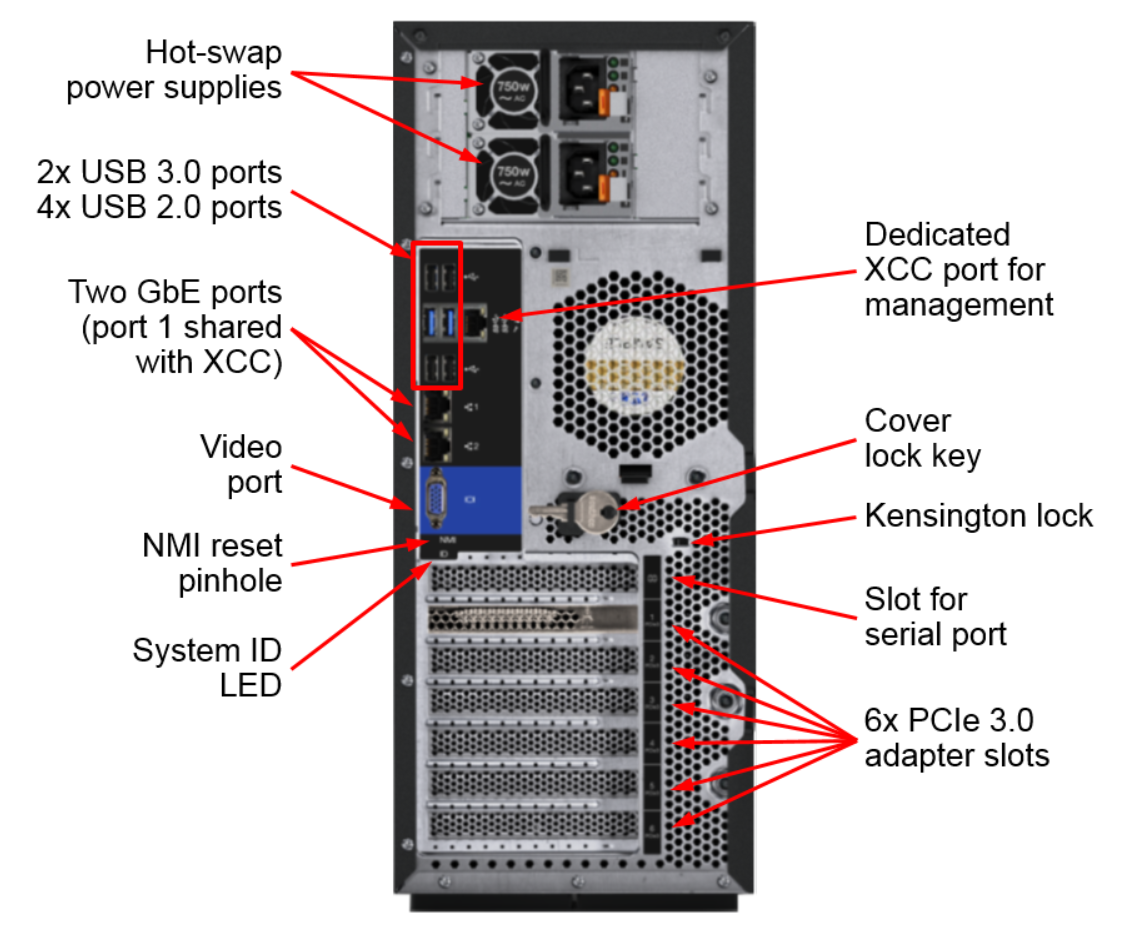

Interfaces 4 x USB 3.0 (1 front, 2 rear, 1 internal)
5 x USB 2.0 (1 front, 4 rear)
1 x VGA
1 x management - RJ-45
2 x LAN (Gigabit Ethernet) - RJ-45
Miscellaneous
Theft/Intrusion Protection Security lock slot (cable lock sold separately)
Security Slot Type Kensington security slot
Compliant Standards TUV GS, BSMI CNS 13438 Class A, EN 61000-3-2, EN 61000-3-3, EN55024, CB, AS/NZS 60950-1, CCC, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15 A, CSA C22.2 No. 60950-1, GB 17625.1, GB 9254 Class A, VCCI Class A, GB 4943.1, BSMI CNS 14336-1, NOM-019, EK1-ITB2000, Energy-Related Products (ErP) Lot 3, KN35, ICES-003 issue 6 Class A, AS/NZS CISPR 32 Class A, KN32 Class A, EN 55032 Class A, CISPR 32 Class A, EN 62368-1:2014, BSMI CNS 15663, TR CU 020/2011, TR CU 004/2011, JESL
Power
Device Type Power supply - hot-plug
Power Redundancy Optional
Power Redundancy Scheme 1+1 (with optional power supply)
Installed Qty 1
Max Supported Qty 2
Voltage Required AC 100-240 V (50/60 Hz)
Power Provided 750 Watt
80 PLUS Certification 80 PLUS Platinum
Operating System / Software
OS Provided No operating system
Sustainability Information
ENERGY STAR Certified Yes
ENERGY STAR Version 2.1
Manufacturer Warranty
Service & Support Limited warranty - 3 years - on-site - response time: next business day
Dimensions & Weight
Width 17.6 cm
Depth 66 cm
Height 43.8 cm
Weight 36 kg
Dimensions & Weight (Shipping)
Shipping Width 57.4 cm
Shipping Depth 98.2 cm
Shipping Height 37.2 cm

https://lenovopress.lenovo.com/lp1055-thinksystem-st550-server
