Сървър Fujitsu ThinkSystem ST250 V2 Intel Xeon E-2378 8C 2.6GHz 65W 16GB UDIMM , без твърд диск 8x2.5in RAID, 5350-8i PCIe, 12Gb 2x1Gb RJ45, 1x550W XCC Ent 7D8FA00HEA

SKU: 4511860

ID: #27026

Характеристики

Серия: ThinkSystem ST250

Чипсет: Intel C256

Процесор, серия: Intel Xeon (8-ядрен)

Процесор: Intel Xeon E-2378 2.6GHz, 16M Cache, 8C/16T, Turbo (65W), 3200 MT/s

Брой процесори: 1

Памет, GB: 16GB DDR4 3200MHz

Максимална памет, GB: up to 128GB

Твърд диск, GB: Няма

Поддръжка на RAID: SATA RAID 0, 1, 5, 10, 50

Видео карта, модел: Matrox G200

Мрежа: 2 x Gigabit Ethernet

Мощност на захранващ блок (W): 550W 80 PLUS

Форм-фактор: 4U Tower

Софтуер: Не

Гаранция (месеца): 36

Направи запитване

Количество: бр.

Доставка до адрес:

Имена:

E-mail:

Телефон:

Съгласие за обработване на личните ми данни за целите на директния маркетинг.

Добави за сравнение

Описание

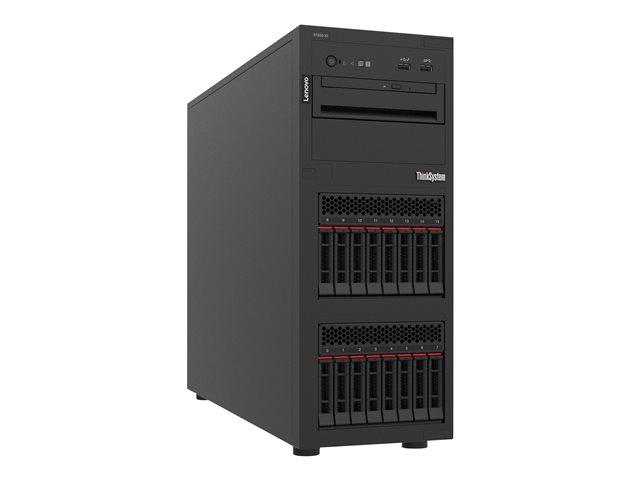

LENOVO ThinkSystem ST250 V2 Intel Xeon E-2378 8C 2.6GHz 65W 16GB UDIMM 8x2.5in RAID 5350-8i PCIe 12Gb 2x1Gb RJ45 1x550W XCC Ent


Manufacturer	LENOVO
Manufacturer Part No	7D8FA00HEA

Marketing Description
The Lenovo ThinkSystem ST250 V2 is a mainstream 1-socket tower server that also be rack mounted as a rack server. It is ideal for small-to-medium businesses, remote offices, branch offices, banking and public sector. The server supports the new Intel Xeon E-2300 Series processors, formerly codenamed "Rocket Lake".
Product Features
Up to four 3200 MHz DDR4 ECC UDIMMs provide speed and capacity of up to 128 GB Four PCIe slots for I/O expansion, one of which has the new PCIe Gen4 interface to maximize I/O performance New high-speed RAID controllers from Lenovo and Broadcom provide 12 Gb SAS connectivity to the drive backplanes Offers two 5.25-inch media bays with support for optical drives or backup drives Supports two M.2 drives for OS boot support with RAID redundancy The server has two integrated Gigabit Ethernet ports The server offers one PCIe 4.0 slot plus three PCIe 3.0 I/O expansion slots Support for a NVIDIA GPU for enhanced workload performance
General
Type	Server
Product Form Factor	Tower - 4U
Built-in Devices	Led panel
Embedded Security	Trusted Platform Module (TPM 2.0) Security Chip
Server Scalability	1-way
Front Accessible Bays Qty	2
Hot-Swap Bays Qty	8
Localisation	Region: EMEA
Processor / Chipset
CPU	Intel Xeon E-2378
Clock Speed	2.6 GHz
Max Turbo Speed	4.8 GHz
Number of Cores	8-core
CPU Qty	1
Max CPU Qty	1
Processor Main Features	Hyper-Threading Technology, Intel Virtualization Technology
CPU Socket	LGA1200 Socket
Chipset Type	Intel C256
Cache Memory
Installed Size	16 MB
Cache Per Processor	16 MB
RAM
Installed Size	16 GB / 128 GB (max)
Technology	DDR4 SDRAM - ECC
Effective Memory Speed	3200 MHz
Rated Memory Speed	3200 MHz
Form Factor	DIMM 288-pin
Slots	4 (Total) / 3 (empty)
Features	Unbuffered, TruDDR4
Configuration Features	1 x 16 GB
Hard Drive
Type	No HDD
Storage Controller
Type	1 x RAID - PCIe 3.0 x8
Controller Interface Type	SATA 6Gb/s / SAS 12Gb/s
Storage Controller Name	ThinkSystem RAID 5350-8i
Channel Qty	8
RAID Level	RAID 0, RAID 1, RAID 5, RAID 10, JBOD
Storage Controller (2nd)
Type	1 x RAID
Controller Interface Type	SATA 6Gb/s
Channel Qty	8
RAID Level	RAID 0, RAID 1, RAID 5, RAID 10, RAID 50
Optical Storage
Type	No optical drive
Monitor
Monitor Type	None.
Graphics Controller
Graphics Processor	Matrox G200
Video Memory	16 MB
Video Interfaces	VGA
Networking
Ethernet Ports	2 x Gigabit Ethernet
Ethernet Controller	Broadcom BCM5720
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller	XClarity Controller (XCC) Enterprise
Features	PXE support, Teaming support
Expansion / Connectivity
Bays	2 (total) / 2 (free) x external 5.25" x 1/2H 8 (total) / 8 (free) x hot-swap 2.5"
Slots	2 (total) / 2 (free) x PCIe 3.0 x4 - half-length, full-height 1 PCIe 4.0 x16 - half-length, full-height PCIe 3.0 x4 - half-length, full-height (x8 mode)
Interfaces	1 x USB 3.2 Gen 1 (1 in front) 1 x USB 2.0 (1 in front) 4 x USB 3.2 Gen 2 1 x serial 1 x VGA 2 x LAN (Gigabit Ethernet) - RJ-45 1 x management - RJ-45 1 x USB 3.0 (1 internal)
Miscellaneous
Theft/Intrusion Protection	Security lock slot (cable lock sold separately), padlock loop, chassis intrusion switch
Security Slot Type	Kensington security slot
Compliant Standards	UL, TUV GS, BSMI CNS 13438 Class A, EN 61000-3-2, GS, EN 61000-3-3, EN55024, CB, CCC, IEC 60950-1, FCC Part 15 A, GREENGUARD, GB 17625.1, CECP, VCCI Class A, EAC, GB 4943.1, INMETRO, NOM-019, EK1-ITB2000, KN35, UL 2819, AS/NZS CISPR 32 Class A, KN32 Class A, EN 62368-1, IEC 62368-1, EN 55032 Class A, LoA, NRCS, CISPR 32 Class A, UL 62368-1, Morocco, EN 55035, TP TC 004/2011, TP TC 020/2011, ASHRAE Class A2, CELP, HJ 2507-2011, Energy-Related Products (ErP) Lot 9, ANSI, TP EAC 037/2016, EN 50581-1, AS/NZS 62368.1, UKCA, ICES-003 issue 7 Class A, NSF/ANSI 426, GB/T9254, CQC3135, CSA C22.2 No. 62368-1, NIST SP800-147B
Power
Device Type	Power supply - hot-plug
Power Redundancy	Optional
Power Redundancy Scheme	1+1 (with optional power supply)
Installed Qty	1
Max Supported Qty	2
Voltage Required	AC 100-127/200-240 V (50/60 Hz)
Power Provided	550 Watt
80 PLUS Certification	80 PLUS Platinum
Operating System / Software
OS Provided	No operating system
Environmental Standards
EPEAT Compliant	EPEAT Bronze
ENERGY STAR Certified	Yes
ENERGY STAR Version	3.0
Manufacturer Warranty
Service & Support	Limited warranty - 3 years - on-site - response time: next business day
Dimensions & Weight
Width	17.6 cm
Depth	57.8 cm
Height	44.4 cm
Weight	23.6 kg
Environmental Parameters
Min Operating Temperature	10 °C
Max Operating Temperature	35 °C
Humidity Range Operating	8 - 80%
