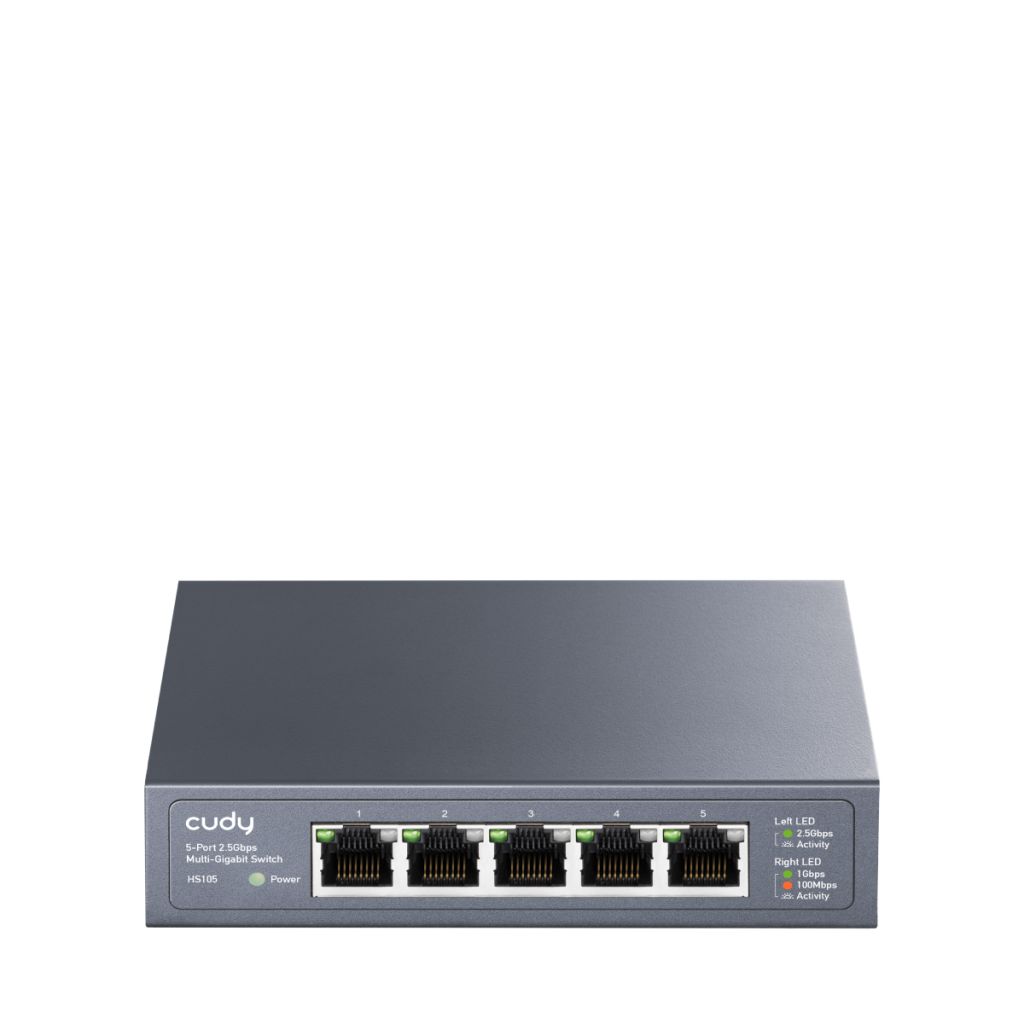

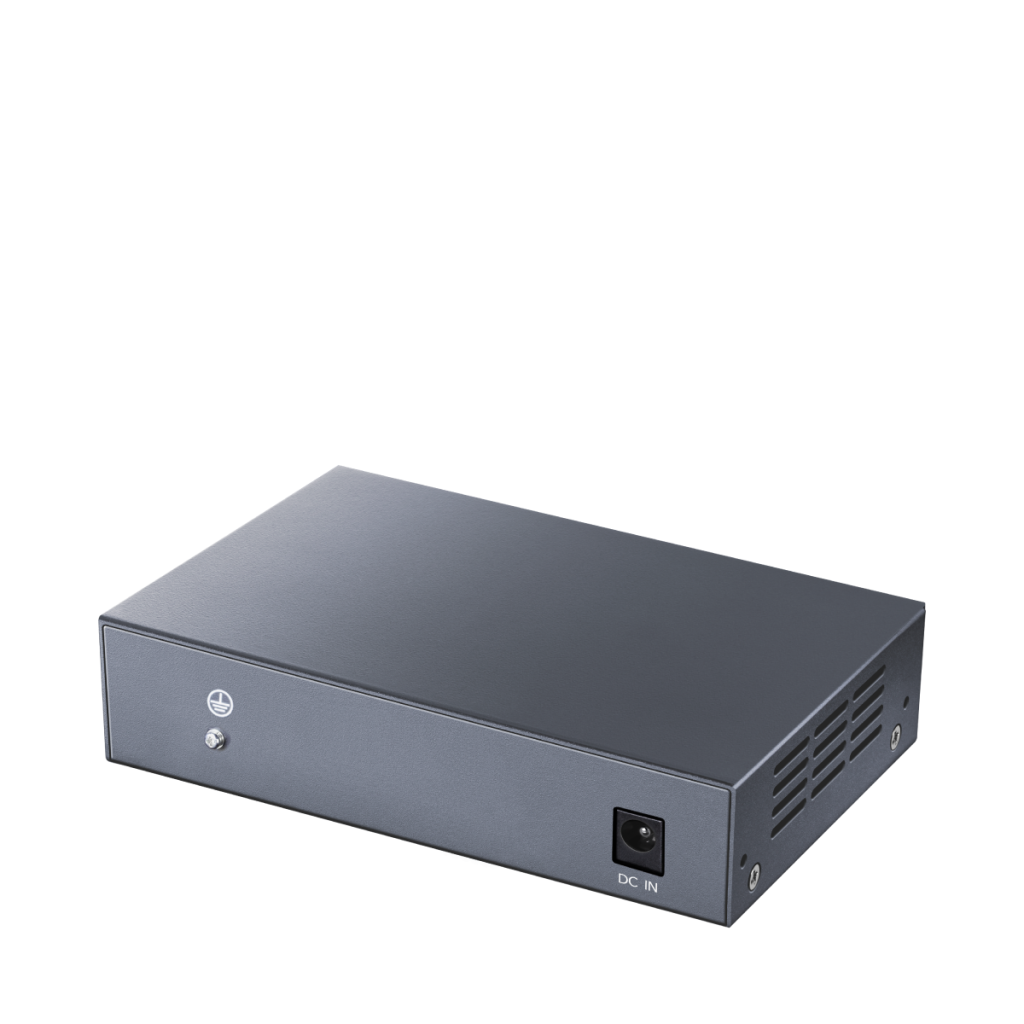

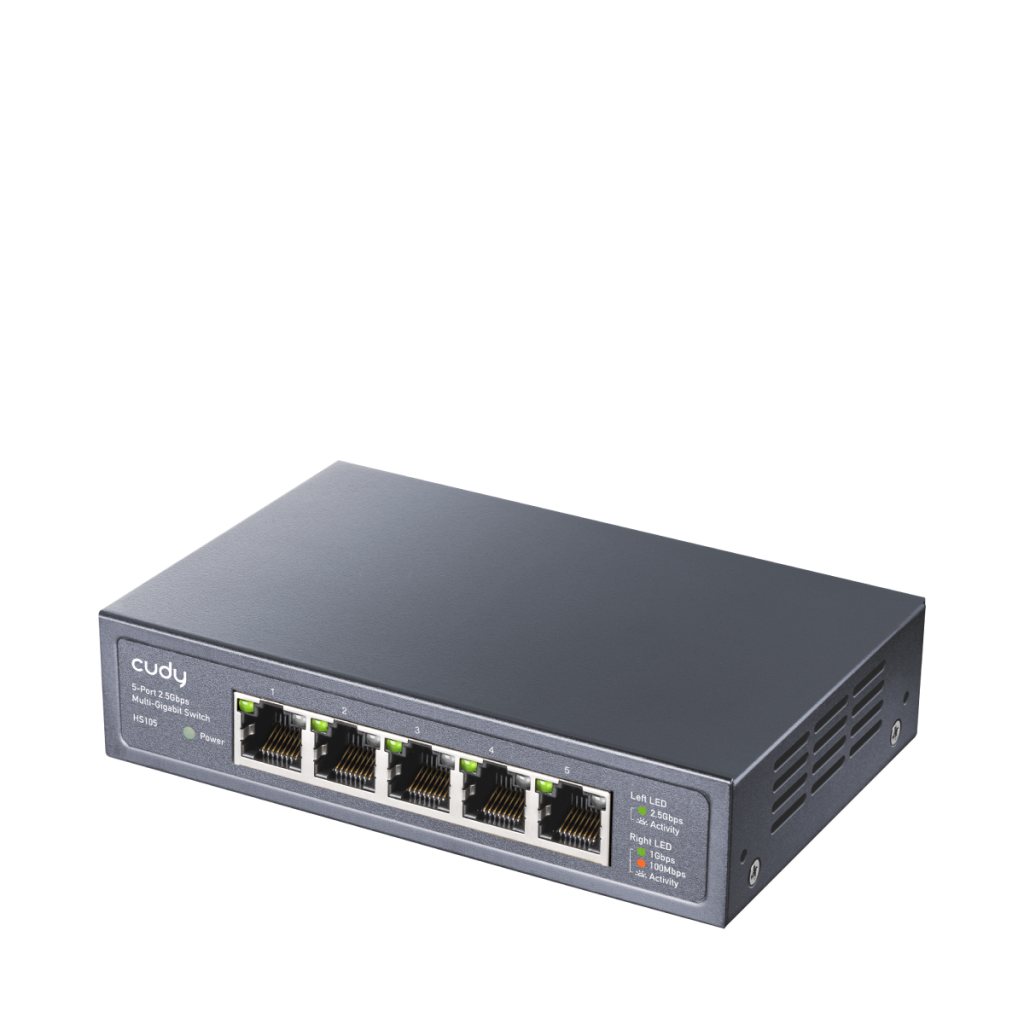

Суич Cudy HS105, 5x2.5G портов Gigabit Ethernet (RJ45), Метален корпус
Суич Cudy HS105, 5x2.5G портов Gigabit Ethernet (RJ45), Метален корпус
Суич Cudy HS105, 5x2.5G портов Gigabit Ethernet (RJ45), Метален корпус
Суич Cudy HS105, 5x2.5G портов Gigabit Ethernet (RJ45), Метален корпус

Суич Cudy HS105, 5x2.5G портов Gigabit Ethernet (RJ45), Метален корпус

SKU: HS105
ID: #39933
Цена: 70,00 лв.
Цената е с вкл. ДДС

Характеристики

Общ брой портове: 5
Основни портове, тип: 5 x 10/100/1000 Mbps
Стандарти: 802.3x, 802.3u, 802.3ab, 802.3bz
Управление: Не
Захранване: DC 12V 1A
Размери: 119 x 85 x 28 мм
Гаранция (месеца): 24

Бърза Поръчка

Описание

Model HS105
Protocols 802.3 Protocols
  • 802.3x Flow Control
  • 802.3u 100 Mbps over Twisted Pair
  • 802.3ab 1 Gbps over Twisted Pair
  • 802.3bz 2.5/5 Gbps over Twisted Pair
Advanced
  • IGMP Snooping
  • Loop Prevention
  • Loop Detection
Memory/Storage Flash/ROM 1 MB (8 Mbit) NOR
Interfaces 2.5G RJ45 Ports 5
  LED
  • Power
  • Speed/Link/ACT of Each Ethernet Port
  Power Input DC Jack
Performance Copper Speed and Distance
  • Cat. 5 or higher cable: 100 meters at 100 Mbps
  • Cat. 5e or higher cable: 100 meters at Gigabit
  • Cat. 5e cable: 50 meters at 2.5 Gbps
  • Cat. 6 or higher cable: 100 meters at 2.5 Gbps
  MAC Address Table 8192
  Max Switching Capacity 25 Gbps
  Max Forwarding Rate 18.6 Mpps
  Jumbo Frame 15 KB
  Packet Buffer 4 Mbits
Power Basic Power Saving True
  Power Methods DC
  DC 12V 1A
  Max Power Consumption (W) 10.5W
  Idle Power Consumption (W) 4.7W
Reliability Grounding Methods Grounding Point
  Lightning/Surge Protection 2kV
  ESD Contact Protection 4kV
  ESD Air Protection 8kV
  Environment Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing
Package Content
  • Main Product
  • Power Adapter
  • Installation Guide
  • Ethernet Cable
  • Mounting Kit
Mechanical Installation
  • Desktop
  • Wall-mount
  Casing Material Metal
  Dimension 119×85×28 mm
4.69×3.35×1.1 inches
Ordering Information Retail Package Dimension 165×123×60 mm
6.5×4.84×2.36 inches
  Retail Package Weight EU: 456 g (0 oz.)
  Carton Net Weight EU: 9.1 kg (20.06 lbs)
  Carton Gross Weight EU: 9.9 kg (21.83 lbs)
  Carton Dimension 376×264×338 cm
14.8×10.39×13.31 inch
