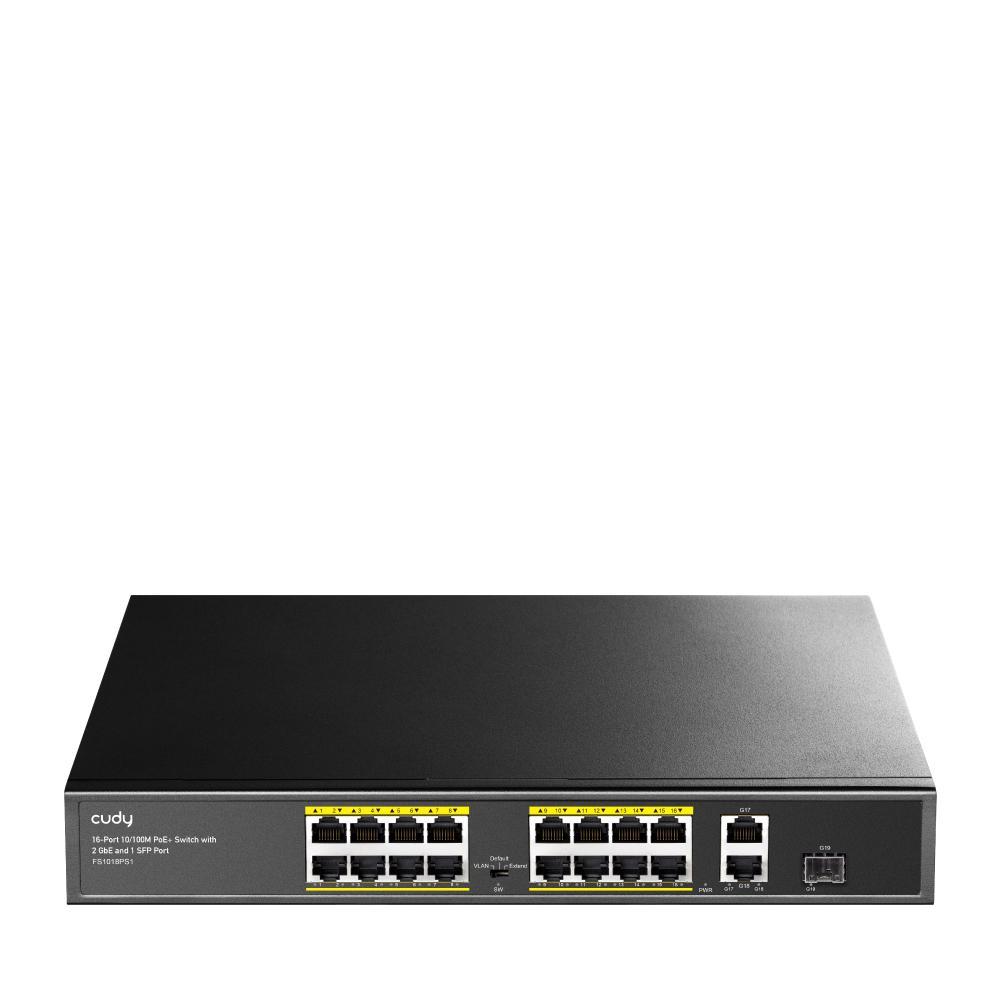

Суич Cudy FS1018PS1, 16 x 10/100 PoE+ Switch 190W, 2 x Gigabit порта, 1 x SFP Slot
Суич Cudy FS1018PS1, 16 x 10/100 PoE+ Switch 190W, 2 x Gigabit порта, 1 x SFP Slot
Суич Cudy FS1018PS1, 16 x 10/100 PoE+ Switch 190W, 2 x Gigabit порта, 1 x SFP Slot
Суич Cudy FS1018PS1, 16 x 10/100 PoE+ Switch 190W, 2 x Gigabit порта, 1 x SFP Slot
Суич Cudy FS1018PS1, 16 x 10/100 PoE+ Switch 190W, 2 x Gigabit порта, 1 x SFP Slot
Суич Cudy FS1018PS1, 16 x 10/100 PoE+ Switch 190W, 2 x Gigabit порта, 1 x SFP Slot

Суич Cudy FS1018PS1, 16 x 10/100 PoE+ Switch 190W, 2 x Gigabit порта, 1 x SFP Slot

SKU: CUDY-SWITCH-FS1018PS1
ID: #27359
Цена: 158,00 лв.
Цената е с вкл. ДДС

Характеристики

Общ брой портове: 16
Основни портове, тип: 8 x 10/100Mbps PoE
Uplink портове: 2 x 10/100/1000M uplink ports +1 SFP Port
Стандарти: IEEE 802.3af; 802.3at
Power Over Ethernet (PoE): Да
Захранване: Ac100~ 240V
Размери: 280 x 180 x 44 мм
Гаранция (месеца): 24

Бърза Поръчка

Описание

Mode FS1018PS1
Power Power Supply Built-in power supply
Voltage Range AC100~240V
Consumption 190W for 16 PoE
Ethernet Speed 1~16 Port: 10/100/Mbps
G17~G18 Port:10/100/1000Mbps
G19 Port: SFP 1.25bps
Transmission Distance 100Meter(328ft)for RJ-45
The distance is determined by the optical module
The optical module is optional
Network
Switch		 Ethenet Standard IEEE 802.3 802.3u 802.3ab 802.3af/at
Switching Capacity 7.2G
Transfer Rate 14880 pps for 10Mbps
148800 pps for 100Mbps
1488000 pps for 1000Mbps
MAC Adsress 4K MAC sddress table
Link/ACT On(Green) The port is connecting
Blinks The port is receiving or transmitting data.
Off The port is notl inked successfully with the device
POE On(Oranfe) PD is connected
Off No PD is connected or power forwarding fails
PoE Pin Assignmnet V+(RJ45 Pin 1, 2) - (RJ45 Pin 3,6)
Environment Working Temperature  0~40°C
Storage Temperature -40~70°C
Humidity Non Condesing 0~85%
Mechanical Dimension L*W*H 280*180*44mm
Color Gray
