| Marketing Description |
| Offering a standard data transfer rate that's double that of the previous 3.0 version, the US70 PCIe Gen 4x4 with 3D NAND flash memory and NVMe 1.3 support is exactly what combative gamers, competitive overclockers, professional designers/editors, and business users crave. With incredible read and write speeds up to 5,000MB/s and 4,400MB/s, respectively, the US70 is nearly 10 times faster than traditional SATA III SSDs. It provides next-level specs that will be competitively relevant for the future, while also being backwards-compatible with PCIe 3.0 too. |
| Product Features |
- Powered by multiple technologies for optimum performance
The US70 supports SLC Caching and DRAM Cache Buffer to improve sequential read/write and random read/write performance. It is engineered with low density parity check (LDPC) coding and an ECC algorithm to ensure accuracy of transmission and reliability of data access. Featuring E2E data protection and support for TRIM commands, the US70 efficiently manages reusable space and significantly reduces hard drive wear out.
- Wear leveling
Wear leveling equalizes the wear of each NAND flash block, avoiding damage or data loss caused by excess use.
- Over-provision (OP)
The built-in over-provision (OP) increases the SSD's reserved space and reduces NAND flash wear to ensure reliability and stability as well as achieve an optimal lifespan.
- Bad block management (BBM)
A bad block management (BBM) mechanism detects and marks bad blocks to avoid storage in those blocks and eliminate access errors.
- A powerful system upgrade with room for more

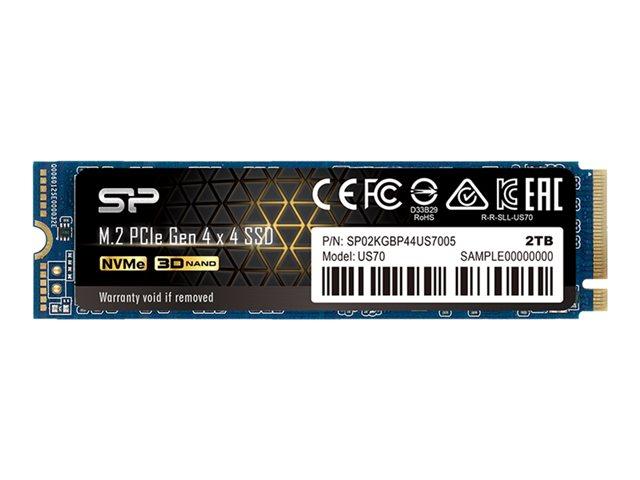

With an M.2 2280 (80 mm) form factor, the US70's compact size allows for easy installation in laptops, small form factor PC systems, and some Ultrabooks. Coupled with its massive storage capacity options, blazing speed, and numerous advanced technologies, it makes for an easy upgrade that will significantly improve your system's performance and storage potential, while also saving space for other components.
|
| General |
| Device Type |
Solid state drive - internal |
| Capacity |
2 TB |
| Form Factor |
M.2 2280 |
| Interface |
PCIe 4.0 x4 (NVMe) |
| Features |
TRIM support, Wear Leveling Support, DRAM cache, End-to-end data protection, Bad Block Management, Low-Density Parity Check, Over Provision, SLC cache, NVM Express (NVMe) 1.3, S.M.A.R.T. |
| Width |
22 mm |
| Depth |
80 mm |
| Height |
3.5 mm |
| Weight |
8 g |
| Performance |
| SSD Endurance |
3600 TB |
| Internal Data Rate |
5000 MBps (read) / 4400 MBps (write) |
| Reliability |
| MTBF |
1,700,000 hours |
| Expansion & Connectivity |
| Interfaces |
1 x PCI Express 4.0 x4 (NVMe) - M.2 Card |
| Compatible Bay |
M.2 2280 |
| Software & System Requirements |
| OS Required |
Windows 8.1 / 10 |
| Miscellaneous |
| Compliant Standards |
BSMI, FCC, RoHS, KCC, WEEE, Green Dot |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 5 years |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
70 °C |
| Shock Tolerance (operating) |
1500 g @ 0.5 ms |
