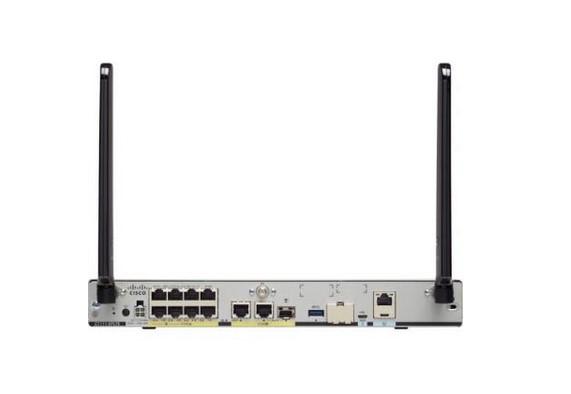

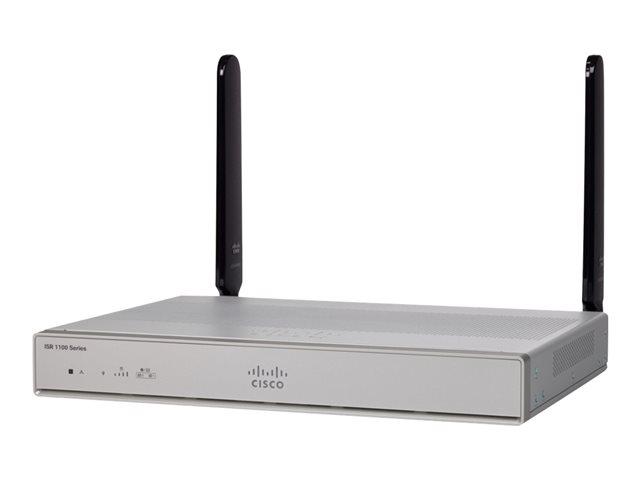

Рутер Cisco ISR 1100 8P C1111-8PLTEEA, 4G LTE, Wireless AC, 1x WAN 1000Base-T/1000Base-X, WAN 1 x 1000Base-T, 2x 10Base-T/100Base-TX/1000Base-T (PoE), 2x 10Base-T/100Base-TX/1000Base-T PoE+, 4x 10Base-T/100Base-TX/1000Base-T, 1 x USB 3.0

SKU: 3042293

ID: #21798

Характеристики

Тип: Жичен / Безжичен

Честота.: 2.4 / 5GHz

Стандарт Wi-Fi.: 802.11ac / 802.11i / 802.1ag / 802.3af / 802.3ah / 802.3at

Брой портове LAN (скорост): 8 x 10/100/1000Base-TX

Брой портове WAN (скорост): 1x WAN 1000Base-T/1000Base-X, WAN 1 x 1000Base-T

PoE: Да

Мрежови протоколи: PPPoE, DHCP, DNS, IGMP, SNMP, L2TP

Протоколи за сигурност: AES (Advanced Encryption Standard), 3DES, DMVPN

Антена, тип: 2 x Външни

Памет: 4 GB Флаш памет / 4 GB RAM

3G/4G: 3G/4G LTE - SIM

Слот за карти: Да

Портове USB: 1 x USB 3.0

Размери, mm: 320 x 224 x 44

Гаранция (месеца): 12

Направи запитване

Количество: бр.

Доставка до адрес:

Имена:

E-mail:

Телефон:

Съгласие за обработване на личните ми данни за целите на директния маркетинг.

Добави за сравнение

Описание

CISCO ISR 1100 8P Dual GE SFP Router w/ LTE Adv SMS/GPS EMEA & NA


Manufacturer	CISCO
Manufacturer Part No	C1111-8PLTEEA

Marketing Description
The Cisco ISR 1111 8-port router with LTE (EMEAR and North America) with a small form factor is best suited for small and midsize businesses, enterprise branches, and as customer premises equipment in managed services environments; it can be used in ATMs, retail stores, and kiosks. The C1111-8PLTEEA model comes with eight LAN ports and supports Power over Ethernet (PoE) and PoE+ to power branch devices such as IP phones and cameras. It has high performance with Gigabit Ethernet packet forwarding capabilities and the multicore architecture has separate cores for the data plane and control plane so your network ensures an optimized user experience. You can easily deploy this router with zero-touch provisioning using the plug-and-play capability. This model is configured for EMEAR and North America.
Product Features
Consistent, high application performance levels The router can run multiple services simultaneously with minimal performance degradation. USB-based console access A micro USB console port supports management connectivity when traditional serial ports are not available.
General
Device Type	Router - 8-port switch (integrated)
Enclosure Type	Desktop
Connectivity Technology	Wireless, wired
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ac Wave 2
Performance	Crypto performance: 250 Mbps
Network / Transport Protocol	IPSec, PPPoE, DHCP, DNS, L2TPv3
Routing Protocol	OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, DVMRP, VRRP, PIM-SM, static IP routing, IGMPv3, GRE, PIM-SSM, policy-based routing (PBR), MPLS, Bidirectional Forwarding Detection (BFD), RSVP
Remote Management Protocol	SNMP, RMON, CLI, TR-069
Encryption Algorithm	Triple DES, SHA, MD5, AES, WPA2, 128-bit AES, 256-bit AES, 1024-bit RSA, 2048-bit RSA, 384-bit SHA-2, 256-bit SHA, 512-bit SHA, 748-bit AES, ECDSA 256-bit, ECDSA 384-bit
Authentication Method	RADIUS
Features	DHCP support, power over Ethernet (PoE), load balancing, MPLS support, VLAN support, Syslog support, IPv6 support, Dying Gasp support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Virtual Route Redundancy Protocol (VRRP) support, Access Control List (ACL) support, Quality of Service (QoS), Dynamic Multipoint VPN (DMVPN), SMS alert, Bidirectional Forwarding Detection (BFD), IPv4 support, NetFlow, Maximum Ratio Combining (MRC), Hot Standby Router Protocol (HSRP) support, Call Home function support, IPFIX, Generic Routing Encapsulation (GRE), automatic Internet Key Exchange, cyclic shift diversity (CSD), Location ID Separation Protocol (LISP), packet aggregation A-MPDU, packet aggregation A-MSDU, Application Visibility and Control (AVC), 3G MIB, failover protection, Field Programmable Gate Array, AES encryption, policy based routing, Authentication, Authorization and Accounting (AAA), Dynamic Frequency Selection (DFS), Hierarchical Quality of Service (HQoS), Layer 3 VPN (L3VPN) support, Embedded Event Manager (EEM), Multigroup HSRP (MHSRP), Ethernet Virtual Connections (EVC), Cisco IOS IP Service-Level Agreements (IPSLA), Network-Based Application Recognition (NBAR), Multichannel-Interface-Processor (MIP), dual SIM support
Compliant Standards	IEEE 802.3af, IEEE 802.11i, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.3at, IEEE 802.11r, IEEE 802.11ac Wave 2, CISPR 24, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, CB, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, FCC CFR47 Part 15, UL 60950-1 Second Edition, VCCI V-3, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS CISPR 22, CNS 13438, EN 301 489-7, EN 301 489-1, FCC CFR47 Part 22, FCC CFR47 Part 24, CAN/CSA C22.2 No. 60950-1 Second Edition, EN 300 386, EN 301 489-24, EN 301 908-1, EN 301 908-2, EN 301 511, EN 301 908-13
RAM	4 GB
Flash Memory	4 GB
Status Indicators	Status
Communications
Type	Wireless cellular modem
Mobile Communication Protocol	UMTS, TD-SCDMA, HSPA+, DC-HSPA+, LTE Advanced, FDD LTE, TDD LTE
Internet of Things (IoT)
Communications Technology	LTE Cat 6
Expansion / Connectivity
Interfaces	WAN: 1 x 1000Base-T/1000Base-X - RJ-45/SFP WAN: 1 x 1000Base-T - RJ-45 LAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45 LAN: 2 x 10Base-T/100Base-TX/1000Base-T (PoE) - RJ-45 LAN: 2 x 10Base-T/100Base-TX/1000Base-T (PoE+) - RJ-45 USB 3.0: 1 x console Antenna: 1 x GPS connector
Expansion Slots	1 (total) / 1 (free) x SIM
Power
Voltage Required	AC 120/230 V (50/60 Hz)
Power Consumption Operational	66 Watt
Miscellaneous
Localisation	Canada, Middle East, United States, Europe
Software / System Requirements
OS Provided	Cisco IOS XE Universal
Dimensions & Weight
Width	32.3 cm
Depth	24.4 cm
Height	4.4 cm
Weight	2.59 kg
Environmental Parameters
Min Operating Temperature	0 °C
Max Operating Temperature	65 °C
Humidity Range Operating	5 - 95% (non-condensing)
