Тип:

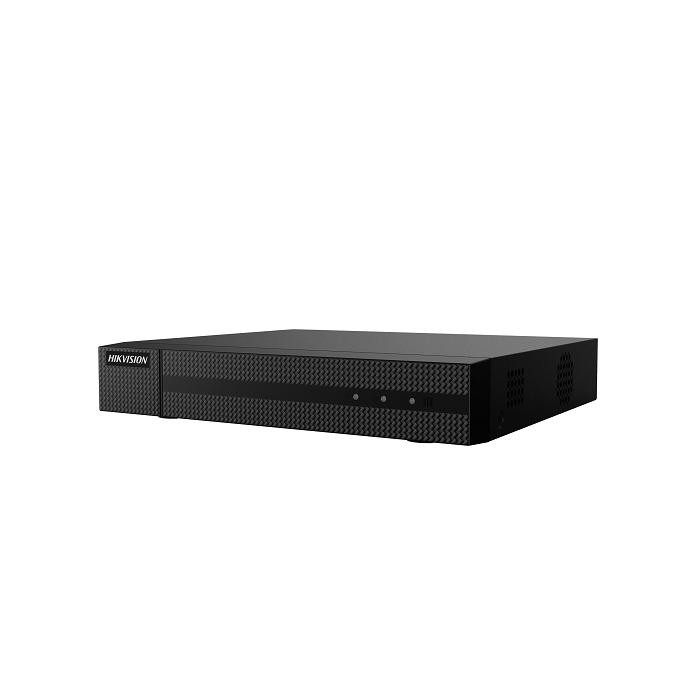

Hybrid Recorder
Аудио компресия:
G.711u
Брой канали:
32-ch Analog video input, 8-ch (up to 40-ch) IP video input
HDMI:
Out: 1-ch, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
VGA:
Out: 1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
Видео изходен режим:
Video, Video & Audio;
Капацитет:
32 Kbps to 6 Mbps
Видео компресия:
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Резолюция на запис:
When 1080p lite mode is not enabled: 4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode is enabled: 4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF
Дистанционна връзка:
128
Мрежови протоколи:
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
Мрежов интерфейс:
1x RJ45 10M/100M/1000M self-adaptive Ethernet interface
Спомагателен интерфейс:
2 SATA interfaces (Up to 10 TB capacity for each disk); Front panel: 1x USB 2.0, Rear panel: 1x USB 3.0
Захранване:
12 VDC, Consumption (without HDD): <=65 W
Power Over Ethernet (PoE):
Не
Размери (Ш, Д, В), mm:
380 x 320 x 48 mm
Тегло, g:
<=2kg
Аудио:
In: 1-ch, RCA (2.0 Vp-p, 1 kOm); Out: 1-ch, RCA (Linear, 1 kOm); Two-way audio: 1-ch, RCA (2.0 Vp-p, 1 kOm) (using the first audio input)
Други:
HDTVI/AHD/HDCVI/CVBS input
Гаранция (месеца):
24
