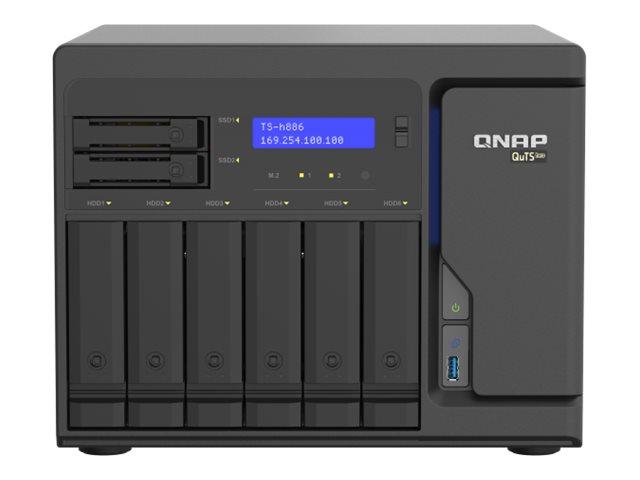

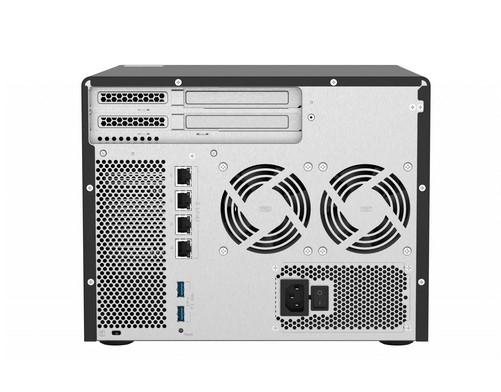

QNAP TS-H886-D1602-8G NAS, Intel Xeon D1602 built-in, 2x M.2 NVMe Gen3, Serial ATA III 6Gb/s , 8GB RAM
изчерпан
QNAP TS-H886-D1602-8G NAS, Intel Xeon D1602 built-in, 2x M.2 NVMe Gen3, Serial ATA III 6Gb/s , 8GB RAM
QNAP TS-H886-D1602-8G NAS, Intel Xeon D1602 built-in, 2x M.2 NVMe Gen3, Serial ATA III 6Gb/s , 8GB RAM

QNAP TS-H886-D1602-8G NAS, Intel Xeon D1602 built-in, 2x M.2 NVMe Gen3, Serial ATA III 6Gb/s , 8GB RAM

SKU: TS-H886-D1602-8G
ID: #38435

Характеристики

Процесор: Intel® Xeon® D-1602 Dual-Core (3M Cache, 3.2 GHz)
Памет, GB: 8GB
Памет, тип: DDR4
Памет, слотове: 4
M.2 слот: 2 M.2 SSD slot (NVMe PCIe Gen3)
Брой поддържани твърди дискове: 8
RAID: RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60, RAID TP, RAID TM
Мрежа: 4 x 2.5 Gigabit Ethernet (RJ-45)
Гаранция (месеца): 36

Направи запитване

Описание

QNAP TS-H886-D1602-8G 8-Bay QuTS hero NAS Intel Xeon D1602 built-in 2 M.2 NVMe Gen3 port SATA 8GB RAM

Manufacturer QNAP SYSTEMS
Manufacturer Part No TS-H886-D1602-8G

Marketing Description
Delivering enterprise performance at SMB prices, the TS-h886 features an Intel Xeon D processor and DDR4 ECC (Error Correcting Code) memory (expandable to 128 GB) with dependable reliability. With the ZFS-based QuTS hero operating system, the TS-h886 ensures data integrity and supports block-level inline data deduplication and compression, near-limitless snapshots, and real-time SnapSync. The TS-h886 helps your business achieve reliable service-level agreement performance in various use cases, including mission-critical file servers, virtualization servers, collaborative video editing, or efficient data backup and recovery applications.
Product Features
  • Powerful Intel Xeon D processor with up to 128 GB DDR4 ECC memory
    The TS-h886 uses an Intel Xeon D-1600 series processor and DDR4 ECC memory that can detect and correct single-bit memory errors as they occur to prevent downtime and data loss. Supporting up to 128 GB RAM to cope with higher workloads, the TS-h886 provides a high-performance and reliable NAS solution for demanding business IT environments.
  • Set SSD caching to boost IOPS with M.2 NVMe SSD
    While SSD prices continue to fall, and SSD capacity and performance continue to increase, organizations can easily take advantage of SSD strengths. The TS-h886 comes with two 2.5-inch SSD drive bays and two M.2 NVMe Gen3 x4 SSD slots that allow you to flexibly configure SSD caching to increase IOPS performance and reduce storage volume latency. This is especially perfect for databases and virtual machine applications. Without occupying any 3.5-inch drive bays, the TS-h886 allows you to maximize both your storage capacity and performance.
  • Quad-port 2.5GbE meets today's high-bandwidth demands
    Featuring four native 2.5GbE RJ45 LAN ports (backwards compatible with 1G/100M), the TS-h886 allows you to use existing CAT5e cables to upgrade network speeds from 1 Gigabit to 2.5 Gigabit. The support of Port Trunking and failover further satisfies bandwidth and reliability demanding applications including virtualization, large file transfers, high-speed backup/restoration, and any real-time application. QNAP also offers numerous options of managed and unmanaged 10GbE/2.5GbE switches, assisting organizations in implementing high-speed, secure and scalable network environments without going over budget.
  • ZFS-based QuTS hero operating system enhances NAS performance and data integrity
    QuTS hero combines the app-based QTS with the 128-bit ZFS file system to provide flexible storage management, comprehensive data protection, and optimized performance to tackle the complexity and performance demands of modern IT. From storage management, virtualization, to collaborative media workflows, QuTS hero streamlines your business-critical tasks.
  • Inline data deduplication, compression, and compaction drives big data storage efficiency
    QuTS hero supports advanced block-based data reduction technologies (including inline data deduplication, compression, and compaction) to reduce file sizes, conserve storage capacity, and optimize performance. For example, if 20 virtual machines on a NAS are replicated using the same template, then storage space requirements for all 20 virtual machines can be reduced by up to 95%. Whether acting as primary or backup storage, the TS-h886 optimizes storage utilization to provide a reliable storage cornerstone in the Big Data era.
  • Real-time SnapSync ensures minimal RPO with real-time disaster recovery
    Real-time SnapSync ensures that both the primary and secondary NAS maintain identical data. When data is written to the source, it is immediately written to the destination. If the primary NAS goes offline, IT staff can simply adjust the privilege settings of the secondary NAS to ensure continuous operations. SnapSync provides the strongest support for nonstop business operations and helps users to reduce the risk of data loss.
  • All-in-one virtual machine and container hosting solution
    You can count on Virtualization Station and Container Station for comprehensive virtualization support. Coupled with the Network & Virtual Switch app that boosts interoperability between virtual machines, containers, QNAP NAS, and other physical devices on the network, you can flexibly allocate physical and virtual network resources to simplify network deployment.
  • PCIe expansion for upgrading 10GbE transmission or enabling GPGPU computing
    The TS-h886 features two PCIe Gen 3 x8 slots (each slot provides up to 64 Gb/s bandwidth) and supports installing expansion cards to enable additional functions and greater application potential.
  • Move business data to the cloud and enjoy low latency access to cloud-based data
    The TS-h886 perfectly integrates NAS with mainstream cloud services. By deploying cloud storage gateways and enabling local caching on the TS-h886 using M.2 SSD slots (M.2 SSDs purchased separately), organizations can seamlessly use the cloud for storage, backup, and data recovery with low-latency access. This greatly helps in realizing cost-effective, flexible and secure hybrid cloud applications.
  • Switch operating systems to upgrade current storage
    The TS-h886 can also switch to using QTS - QNAP's standard NAS operating system. This allows you to migrate drives from your current QTS-based NAS to the more powerful TS-h886 to upgrade your storage infrastructure.
General
Device Type NAS server
Host Connectivity 2.5 Gigabit Ethernet
Total Storage Capacity 0 TB
Installed Devices / Modules Qty 0 (installed) / 8 (max)
Width 29.29 cm
Depth 31.98 cm
Height 23.19 cm
Weight 8.5 kg ()
Processor / Memory
Processors Installed 1 x Intel Xeon D-1602
Number of Cores Dual-Core
Max Supported Qty 1
Max Turbo Speed 3.2 GHz
RAM 8 GB (installed) / 128 GB (supported) - DDR4
Features Unbuffered, ECC
Flash Memory Installed 5 GB
Storage Controller
Type RAID
Interface Type SATA 6Gb/s
RAID Level RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60, RAID TP, RAID TM
Networking
Data Link Protocol 100Mb LAN, 1GbE, 2.5GbE
Network / Transport Protocol TCP/IP, PPTP, L2TP, IPSec, iSCSI, FTP, SMB, DDNS, NFS, SFTP, HTTP, HTTPs
Remote Management Protocol SNMP 2, SNMP 3, HTTP, HTTPS, SSH, SFTP, LDAP
Network Services Compatibility DDNS, Microsoft CIFS, FTP, Server Message Block (SMB), Apple File Protocol (AFP), HTTP, HTTPS, Web-based Distributed Authoring and Versioning (WebDAV), SFTP
Performance Concurrent connections (CIFS): 10000 - (with maximum memory)
Features Firewall protection, DHCP server, Network Access Protection (NAP), Domain Controller, port trunking, hybrid backup sync, Qfiling, Qsirch, Q'center (NAS CMS), SQL Server, Network Recycle Bin, VJBOD Cloud, Qsync, QuMagie, Smart Fan, QmailAgent, QuWAN, Storage Pool, SED Storage Pool, JBOD Expansion, Disk, Enclosure Locate, Disk S.M.A.R.T. Scan, Disk S.M.A.R.T. Data Migration, Disk Roaming, Disk Standby, Mount Smart Phone (MTP), group quota, folder quota, Resource Monitor, Virtual Switch, Allow/Deny List, Access Protection, Service binding, fibre channel service, LUN snapshot, RAID Hot Spare, domain security, security counselor, malware remover, HybridMount, Boxafe, Windows ACL, schedule on/off, iSCSI service, Zettabyte file system (ZFS), Secure Erase, QVPN Service, End-to-End Data Integrity, silent error detection and self-healing, Shared Folder WORM, user quota
Encryption Algorithm SSL, TLS, FIPS 140-2, 256-bit AES, AES-NI
Expansion / Connectivity
Expansion Bays 6 (total) / 6 (free) x hot-swap - 3.5"
2 (total) / 2 (free) x hot-swap - 2.5"
Expansion Slots 2 (total) / 2 (free) x PCI Express 3.0 x8
2 (total) / 2 (free) x M.2 22110/2280
Interfaces 3 x USB 3.1 Gen 2
4 x 2.5 Gigabit Ethernet
Miscellaneous
Cables Included 2 x network cable
Features Security lock slot (cable lock sold separately), built-in 3 cooling fans, dual boot, LDAP support, alarm buzzer
Security Slot Type Kensington security slot
Compliant Standards FIPS 140-2, TLS v1.2, TLS, TLS v1.0, TLS v1.1, SSL, TLS v1.3
Included Accessories 2 x M.2 SSD heatsink, 18 x flat head screws (for 2.5" HDD), 18 x flat head screws (for 3.5" HDD), power cable, 2 x drive tray keys
Power
Power Device Internal power supply
Voltage Required AC 100-240 V
Power Consumption Operational 75.79 Watt (with drives fully populated)
Power Provided 250 Watt
Software / System Requirements
Storage Operating System QNAP QuTS hero h4.5.1 / QTS 5.0.1
OS Required UNIX, Microsoft Windows Server 2008 R2, IBM AIX 7, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Ubuntu 14.04, Red Hat Enterprise Linux 6.6, Microsoft Windows Server 2016, CentOS 7.0, Microsoft Windows Server 2019, SuSE Linux 12 or later, Oracle Solaris 10 or later, Microsoft Windows 7 / 8 / 10 / 11, Apple macOS 10.10 or later
Manufacturer Warranty
Service & Support Limited warranty - 3 years
Dimensions & Weight (Shipping)
Shipping Weight 10.11 kg
Environmental Parameters
Min Operating Temperature 0 °C
Max Operating Temperature 40 °C
Humidity Range Operating 5 - 95% RH (non-condensing)
Technical data provided by third party. We assume no liability for errors within these data.
