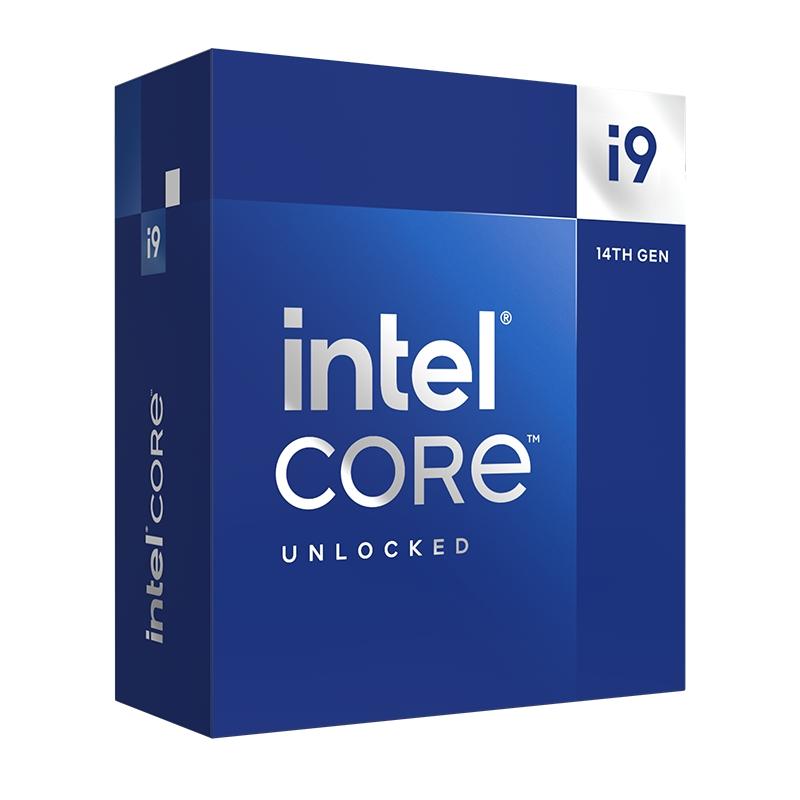

Процесор Intel Raptor Lake i9-14900K 24C (3.2/5.6GHz, 36MB Cache), 125W, LGA1700, BOX, без охлаждане

Cores

24 (8C+16c)

Threads

32 (16+16)

Turbo Clock

6.00GHz (Thermal Velocity Boost), 5.80GHz (Turbo Boost Max 3.0), 5.60GHz (P-Core), 4.40GHz (E-Core)

Base Clock

3.20GHz (P-Core), 2.40GHz (E-Core)

TDP

125W (Processor Base Power), 253W (maximum Turbo Power)

Graphics

yes (Intel UHD Graphics 770)

Socket

Intel 1700 (LGA1700), "Socket V"

chipset suitability

B660, B760, H610, H670, H770, W680, Z690, Z790

Codename

Raptor Lake-S

Architecture

Raptor Cove (P-Core) + Gracemont (E-Core)

Manufacturing Process

Intel 7

L2 cache

32MB (8x 2MB + 16x 1MB)

L3 cache

36MB

Memory controller

Dual Channel DDR5-5600 (PC5-44800), DDR4-3200 (PC4-25600), 89.6GB/​s, max. 192GB

ECC support

yes

SMT

yes (P-Core, Intel Hyper-Threading)

Remote management

yes (Intel vPro Essentials, Intel vPro Enterprise)

Unlocked

yes

CPU-Features

AES-NI, AMT, AVX, AVX2, Boot Guard, CET, DL Boost, EIST, Flex Memory Access, GNA 3.0, Hardware Shield, Idle States, Instruction set 64bit (Intel 64), Intel Adaptive Boost Technology, ISM, MBEC, One-click Recovery, OS Guard, RPE, Secure Key, SIPP, Speed shift, SSE4.1, SSE4.2, TDT, Thermal Monitoring, Thread Director, total Memory encryption - Multi Key, TVB, TXT, VMD, VT-d, VT-rp, VT-x, VT-x EPT, XD bit

Scalability

1 socket (1S)

PCIe Lanes

16x PCIe 5.0, 4x PCIe 4.0

chipset Interface

DMI 4.0, 16GT/s (PCIe 4.0 x8)

iGPU-Model

Intel UHD Graphics 770

iGPU-Clock

0.30-1.65GHz

iGPU-Units

32EU /​ 256 Shader

iGPU-Architecture

Gen 12.2, Codename "Raptor Lake GT1"

iGPU Interface

DP 1.4a (7680x4320@60Hz), eDP 1.4b (5120x3200@120Hz), HDMI 2.1 (4096x2160@60Hz)

iGPU-Features

4x display support, 2x Multi-format codec Engine, Intel clear Video HD, Intel Quick Sync Video, AV1 decode, H.265 encode/​decode, VP9 encode/​decode, HDCP 2.3, DirectX 12, OpenGL 4.5, OpenCL 3.0, Vulkan 1.0

iGPU processing Power

0.8704 TFLOPS (FP32)

Scope of Delivery

without CPU cooler

Launch

2023/​Q4 (16.10.2023)

Segment

desktop (Mainstream)

Stepping

B0, Spec Code: SRN48

Max Temperature

100°C (Tjunction)

Thermal Interface material

metal/​soldered
