Name

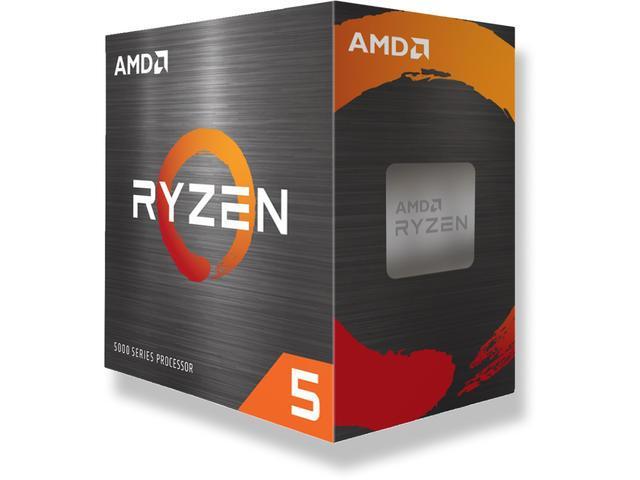

AMD Ryzen™ 5 5600T
Family
Ryzen
Series
Ryzen 5000 Series
Form Factor
Desktops , Boxed Processor
Market Segment
Mainstream Desktop
Consumer Use
Yes
Regional Availability
Global , China , NA , EMEA , APJ , LATAM
Former Codename
Vermeer
Architecture
Zen 3
# of CPU Cores
6
Multithreading (SMT)
Yes
# of Threads
12
Max. Boost Clock
Up to 4.5 GHz
Base Clock
3.5 GHz
L1 Cache
384 KB
L2 Cache
3 MB
L3 Cache
32 MB
Default TDP
65W
Processor Technology for CPU Cores
TSMC 7nm FinFET
Processor Technology for I/O Die
12nm (Globalfoundries)
CPU Compute Die (CCD) Size
74mm²
I/O Die (IOD) Size
125mm²
Package Die Count
2
Unlocked for Overclocking
Yes
CPU Socket
AM4
Supporting Chipsets
X570 , X470 , X370 , B550 , B450 , B350 , A520
CPU Boost Technology
Precision Boost 2
Instruction Set
x86-64
Supported Extensions
AES , AMD-V , AVX , AVX2 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Thermal Solution (PIB)
AMD Wraith Stealth
Max. Operating Temperature (Tjmax)
95°C
Native USB 3.2 Gen 2 (10Gbps) Ports
4
Native USB 3.2 Gen 1 (5Gbps) Ports
0
Native USB 2.0 (480Mbps) Ports
0
Native SATA Ports
2
PCI Express® Version
PCIe® 4.0
Native PCIe® Lanes (Total/Usable)
24 , 20
Additional Usable PCIe Lanes from Motherboard
NVMe Support
Boot , RAID0 , RAID1 , RAID10
System Memory Type
DDR4
Memory Channels
2
Max. Memory
128 GB
System Memory Subtype
UDIMM
System Memory Specification
Up to 3200 MT/s
Max Memory Speed
