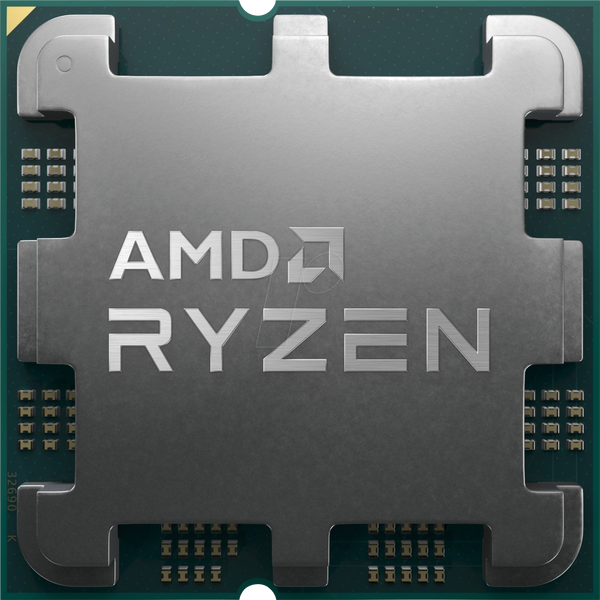

Процесор AMD RYZEN 5 7600X3D 6C (4.1/4.7GHz, 96MB Cache), AM5, 65W, TRAY, без охлаждане

Name

AMD Ryzen™ 5 7600X3D

Family

Ryzen

Series

Ryzen 7000 Series

Form Factor

Desktops , Boxed Processor

Market Segment

Enthusiast Desktop

AMD PRO Technologies

No

Consumer Use

Yes

Regional Availability

China , NA , EMEA

Former Codename

Raphael AM5

Architecture

Zen 4

# of CPU Cores

6

Multithreading (SMT)

Yes

# of Threads

12

Max. Boost Clock

Up to 4.7 GHz

Base Clock

4.1 GHz

L1 Cache

384 KB

L2 Cache

6 MB

L3 Cache

96 MB

Default TDP

65W

Processor Technology for CPU Cores

TSMC 5nm FinFET

Processor Technology for I/O Die

TSMC 6nm FinFET

CPU Compute Die (CCD) Size

71mm²

I/O Die (IOD) Size

122mm²

Package Die Count

2

AMD EXPO™ Memory Overclocking Technology

Yes

Precision Boost Overdrive

Yes

Curve Optimizer Voltage Offsets

Yes

AMD Ryzen™ Master Support

Yes

CPU Socket

AM5

Supporting Chipsets

A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850

CPU Boost Technology

Precision Boost 2

Instruction Set

x86-64

Supported Extensions

AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64

Thermal Solution (PIB)

Not Included

Recommended Cooler

Liquid cooler recommended for optimal performance

Max. Operating Temperature (Tjmax)

89°C

*OS Support

Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

•

  Native USB 3.2 Gen 2 (10Gbps) Ports

  4

  Native USB 3.2 Gen 1 (5Gbps) Ports

  0

  Native USB 2.0 (480Mbps) Ports

  1

  Native SATA Ports

  0

  PCI Express® Version

  PCIe® 5.0

  Native PCIe® Lanes (Total/Usable)

  28 , 24

  Additional Usable PCIe Lanes from Motherboard

  X670E

  12x Gen4

  X670

  12x Gen4

  B650E

  8x Gen4

  B650

  8x Gen4

  NVMe Support

  Boot , RAID0 , RAID1 , RAID10

  System Memory Type

  DDR5

  Memory Channels

  2

  Max. Memory

  128 GB

  System Memory Subtype

  UDIMM

  Max Memory Speed

  2x1R

  DDR5-5200

  2x2R

  DDR5-5200

  4x1R

  DDR5-3600

  4x2R

  DDR5-3600

  ECC Support

  Yes (Requires mobo support)
