DESCRIPTION
SPECIFICATIONS
KF560C30BBEAK2-64
64GB (32GB 4G x 64-Bit x 2 pcs.)
DDR5-6000 CL30 288-Pin DIMM Kit
Continued >>
FEATURES

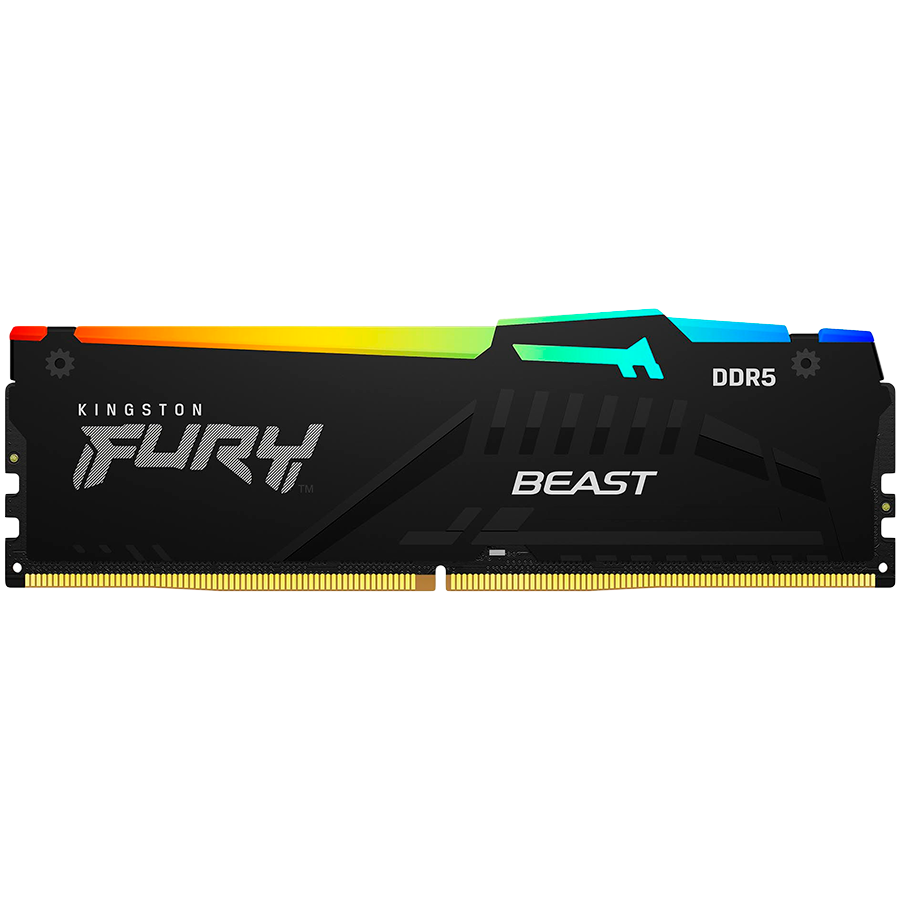

Kingston FURY KF560C30BBEAK2-64 is a kit of two 4G x 64-bit
(32GB) DDR5-6000 CL30 SDRAM (Synchronous DRAM) 2Rx8,
memory module, based on sixteen 2G x 8-bit FBGA components per
module. Each module kit supports AMD® EXPO v1.1 and
Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Total kit
capacity is 64GB. Each module has been tested to run at
DDR5-6000 at a low latency timing of 30-36-36 at 1.4V. The SPDs
are programmed to JEDEC standard latency DDR5-4800
timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold
contact fingers. The JEDEC standard electrical and
mechanical specifications are as follows:
FACTORY TIMING PARAMETERS
• Default (JEDEC): DDR5-4800 CL40-39-39 @1.1V
• EXPO Profile #0: DDR5-6000 CL30-36-36 @1.4V
• EXPO Profile #1: DDR5-5600 CL40-40-40 @1.25V
• XMP Profile #1: DDR5-6000 CL30-36-36 @1.4V
• XMP Profile #2: DDR5-5600 CL40-40-40 @1.25V
