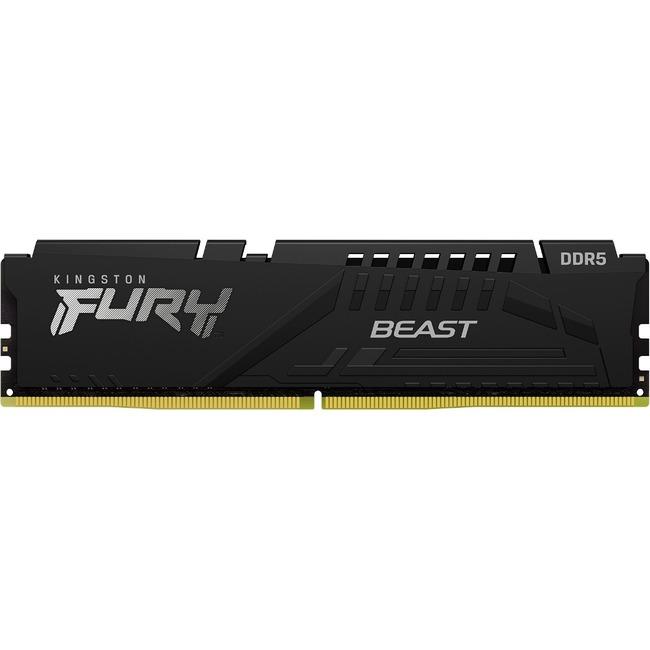

Памет Kingston FURY Beast Black EXPO 8GB DDR5 5600MHz, CL40, 1.25 V

DESCRIPTION

Kingston FURY KF556C36BBE-8 is a 1G x 64-bit (8GB) DDR5-5600
CL36 SDRAM (Synchronous DRAM) 1Rx16, memory module,
based on four 1G x 16-bit FBGA components per module. The
module supports AMD® EXPO v1.0 and Intel® Extreme
Memory Profiles (Intel® XMP) 3.0. Each module has been
tested to run at DDR5-5600 at a low latency timing of 36-38-38 at
1.25V. The SPDs are programmed to JEDEC standard latency
DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM
uses gold contact fingers. The JEDEC standard electrical
and mechanical specifications are as follows:

SPECIFICATIONS

CL(IDD) 40 cycles
Row Cycle Time (tRCmin) 48ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin) 295ns(min.)
Row Active Time (tRASmin) 32ns(min.)
UL Rating 94 V - 0
Operating Temperature 0 C to +85 C
Storage Temperature -55 C to +100 C

FEATURES

• Power Supply: VDD = 1.1V Typical
• VDDQ = 1.1V Typical
• VPP = 1.8V Typical
• VDDSPD = 1.8V to 2.0V
• On-Die ECC
• Height 1.37” (34.9mm), w/heatsink

FACTORY TIMING PARAMETERS

• Default (JEDEC): DDR5-4800 CL40-39-39 @1.1V
• EXPO Profile #0: DDR5-5600 CL36-38-38 @1.25V
• EXPO Profile #1: DDR5-5200 CL40-40-40 @1.25V
• XMP Profile #1: DDR5-5600 CL36-38-38 @1.25V
• XMP Profile #2: DDR5-5200 CL40-40-40 @1.25V
