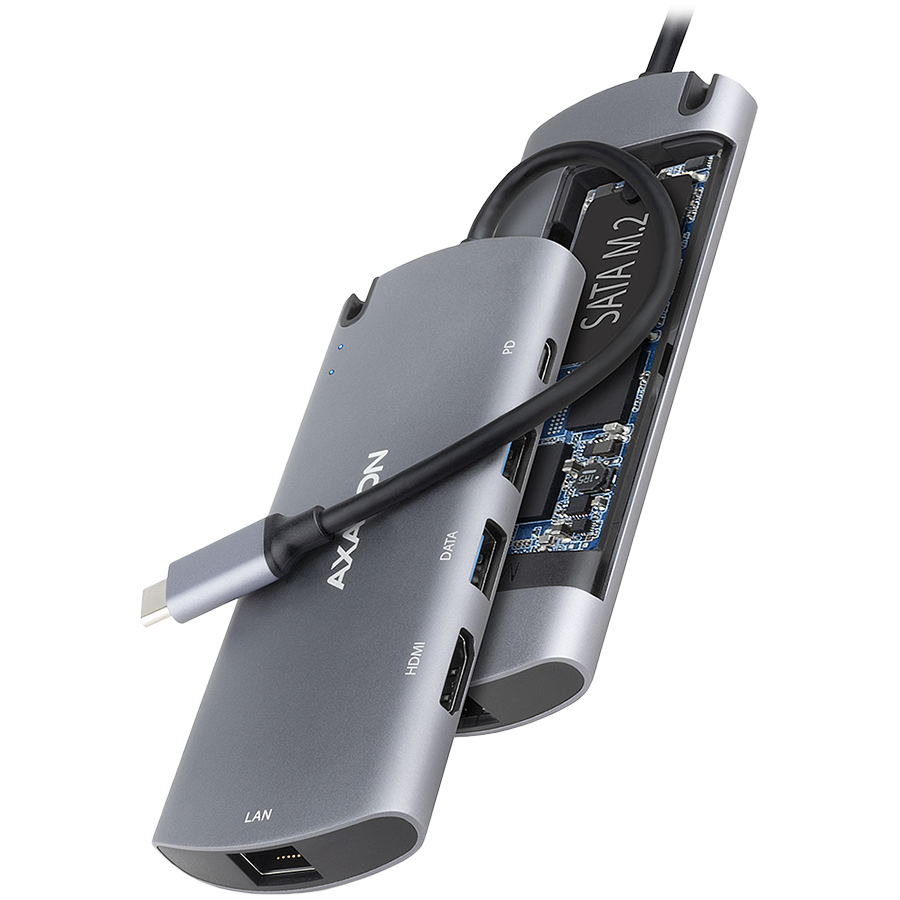

Мултипортов адаптер Axagon HMC-6M2, 1x USB-C вход, 1x HDMI, 1x USB-C, 2x USB-A 3.1, 1x RJ-45, 1x SATA M.2 (2280)
топ продукт

Мултипортов адаптер Axagon HMC-6M2, 1x USB-C вход, 1x HDMI, 1x USB-C, 2x USB-A 3.1, 1x RJ-45, 1x SATA M.2 (2280)

SKU: HMC-6M2
ID: #36303
Цена: 98,00 лв.
Цената е с вкл. ДДС

Характеристики

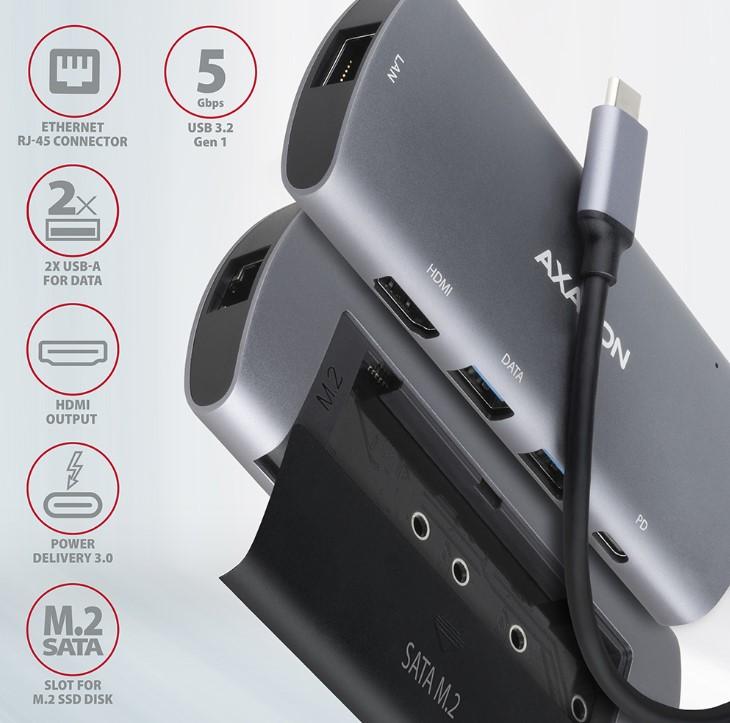

Портове: USB 3.2 Gen 1, M.2 SATA, SATA 6G, UASP, HDMI, Ethernet
Гаранция (месеца): 24

Бърза Поръчка

Описание

interface USB 3.2 Gen 1 / USB 3.1 Gen 1 / USB 3.0 / USB 2.0
interface USB-C (DisplayPort Alternate Mode)
rate 5000 / 480 / 12 / 1.5 Mbit/s (super / high / full / low speed)

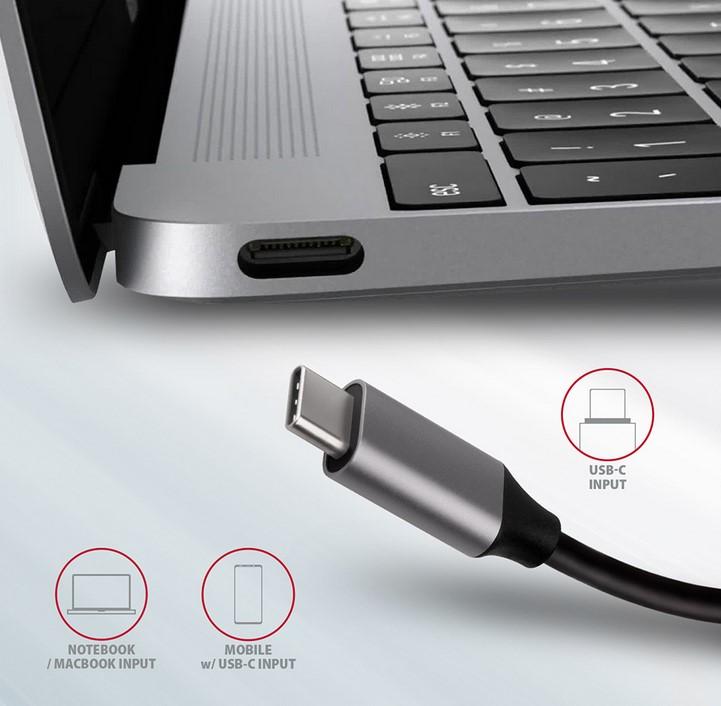

connector USB Type C male (on the cable)
cable 18 cm
Output

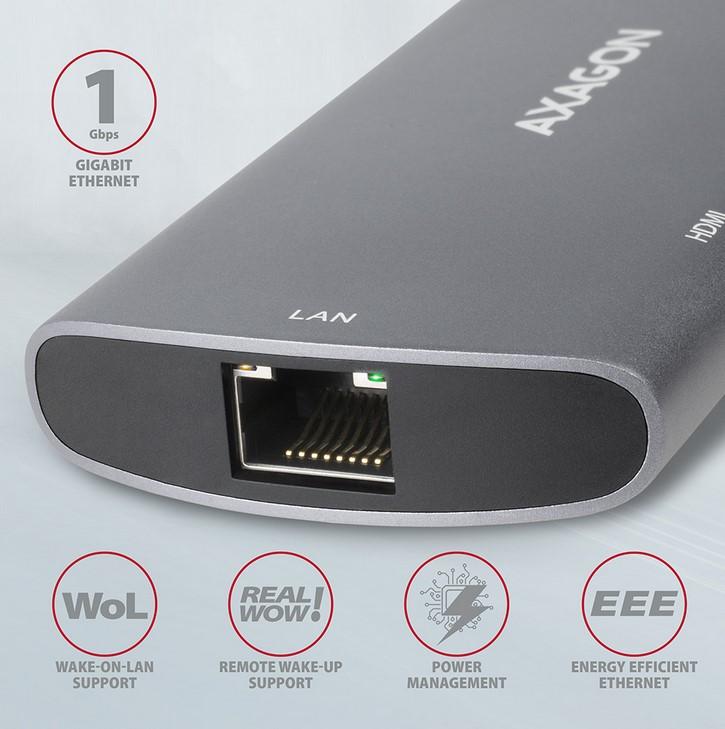

interface Gigabit Ethernet
interface SATA M.2 (AHCI)
interface USB 3.2 Gen 1
interface HDMI
output power 100W - 20V/5A
connector RJ-45
connector 75-pin M.2 B-key
connector USB-A 2x
connector HDMI A

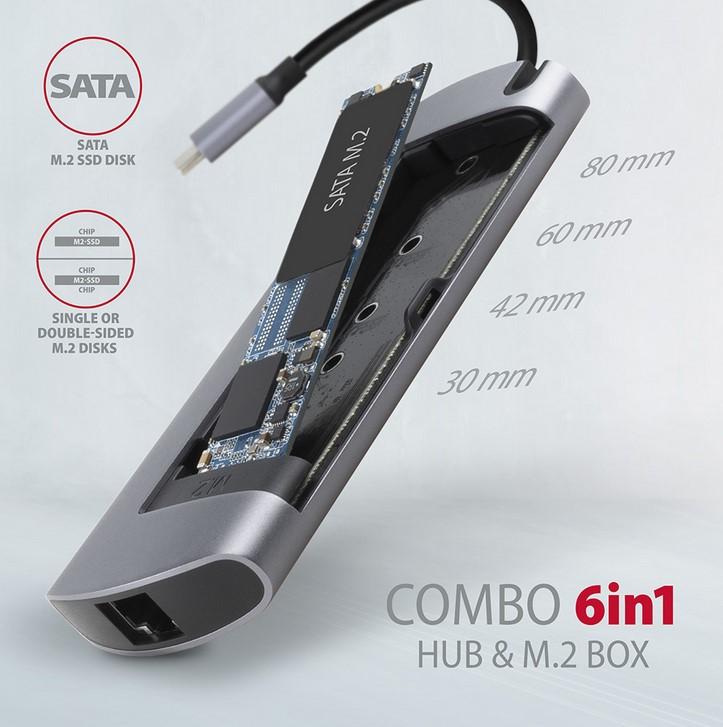

compatibility all SATA M.2 SSD B-key / B+M-key
Supported device
M.2 22110 -
M.2 2280 yes
M.2 2260 yes
M.2 2242 yes
M.2 2230 yes
max. disk capacity all, without limitations
Supported features
max. charging current / port 0.5 A (5V)
total charging current 1.8 A (5V)
UASP yes
TRIM yes
boot from connected disk yes
USB Power Delivery yes
overload protection yes

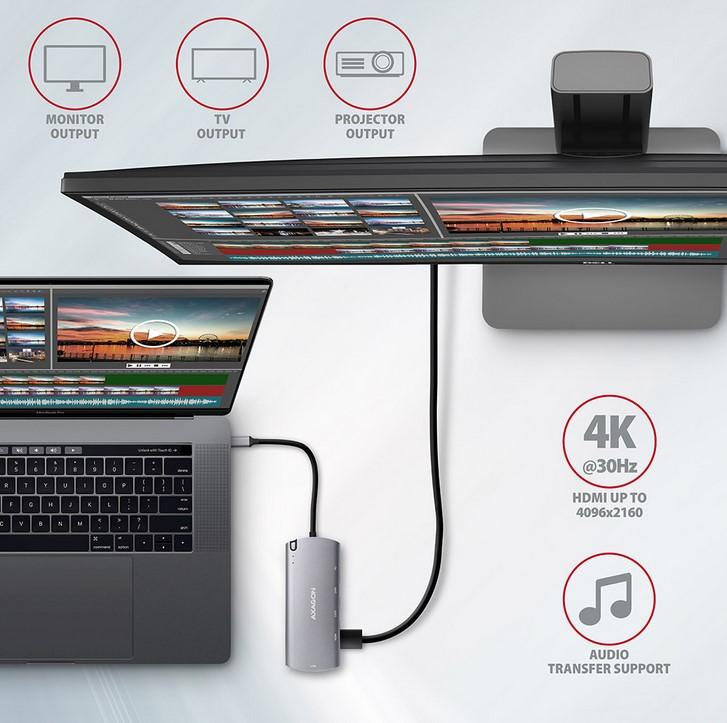

max. resolution 4096 x 2160 @30Hz 4K x 2K
display modes mirroring / extending the primary monitor area
sound transmission yes

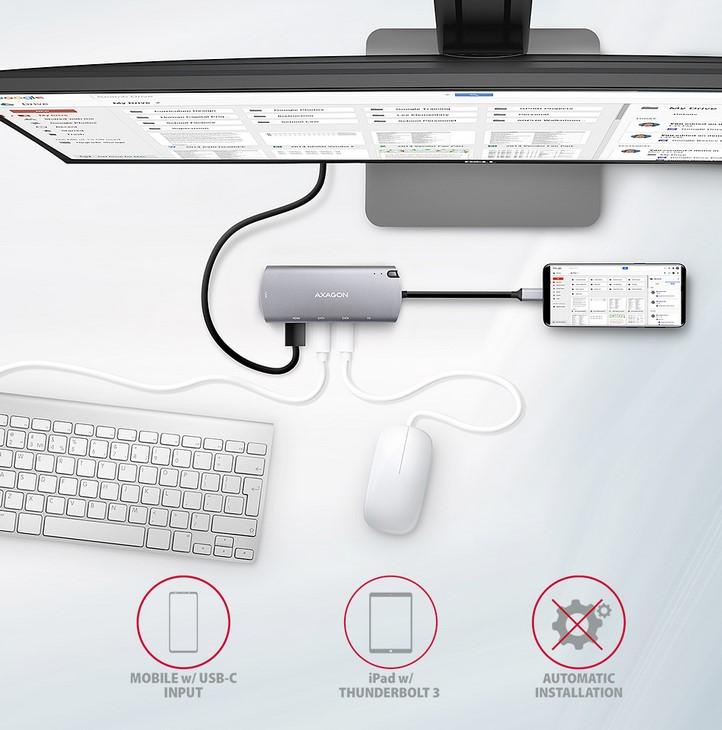

automatic installation yes
bandwidth management ano (IEEE 802.1P Layer 2 priority encoding & decoding)
Virtual LAN yes (IEEE 802.1Q VLAN tagging)
Wake on LAN yes (incl. AMD Magic Packet, Microsoft Wake-up frame)
Hot Plug Detect yes (HPD - connecting / disconnecting device when running)
Plug and Play yes
Hot Plug yes
Other features

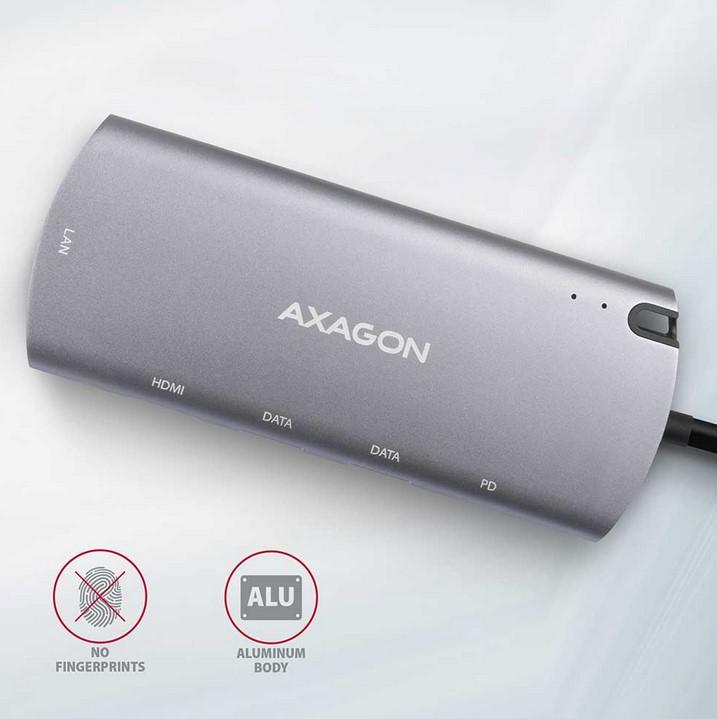

design metal
screwless mounting yes
indication 2 LED
dimensions 123 x 51 x 14 mm
weight 72 g
Power supply
on the bus USB bus power
through power adapter Power Delivery
OS support
MS Windows 10
Mac OS yes
Android yes
Chrome yes

https://www.axagon.eu/en/produkty/hmc-6m2
