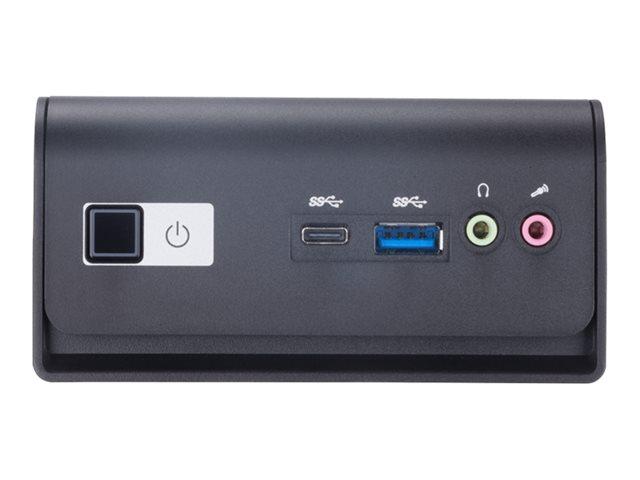

Mini компютър Barebone Gigabyte GB-BMCE-5105, Intel Celeron N5105 2.0/2.9 GHz, 1x SODIMM DDR4, 1x SATA, LAN, Wi-Fi, miniDisplayPort, HDMI

SKU: 4327881

ID: #19222

Характеристики

Серия: Barebone

Процесор, серия: Intel Celeron (4-ядрен)

Видео карта, модел: Intel UHD Graphics 605

Памет, GB: Няма

Гаранция (месеца): 24

Направи запитване

Количество: бр.

Доставка до адрес:

Имена:

E-mail:

Телефон:

Съгласие за обработване на личните ми данни за целите на директния маркетинг.

Добави за сравнение

Описание

GIGABYTE GB-BMCE-5105 Intel Celeron N5105 1xSO-DIMM DDR4 1xM.2 WiFi BRIX


Manufacturer	GIGABYTE
Manufacturer Part No	GB-BMCE-5105

Product Features
Ultra compact PC design at only 0.67L (56.22x103x116.52mm) 1st 10 nm small core CPU Support M.2 2280 slot for SSD (support PCI-e x2+SATA) Supports 2.5" HDD/SSD, 7.0/9.5 mm thick (1 x 6 Gbps SATA 3) 1 x SO-DIMM DDR4 slots support 2933MHz, Max 16GB 802.11ac, Dual Band Wi-Fi & Bluetooth 4.2 Realtek 8111HS Gigabit LAN HDMI 2.0b support 4K@60P HDR10 MDP 1.4b support 4K@60P HBR2 Realtek ALC255 Codec 4 x USB 3.1 (1 x USB Type-C) Headphone Jack Mic-phone Jack VESA Mounting Bracket (75 x 75mm + 100 x 100mm) AC-DC adapter: 100-240V input, 19V 65W OS Support: Microsoft Windows 10 64Bit 1x Kensington Lock slot System Environment Operating Temperature: 0°C to +35°C System Storage Temperature: -20°C to +60°C
General
Type	PC barebone
Product Form Factor	Ultra compact mini PC
Processor / Chipset
CPU	Intel Celeron N5105
Clock Speed	2 GHz
Max Turbo Speed	2.9 GHz
Number of Cores	Quad-Core
CPU Qty	1
Max CPU Qty	1
Cache Memory
Installed Size	4 MB
Cache Per Processor	4 MB
RAM
Installed Size	0 GB / 16 GB (max)
Technology	DDR4 SDRAM
Form Factor	SO-DIMM 260-pin
Slots	1 (Total) / 1 (empty)
Hard Drive
Type	No HDD
Storage Controller
Type	1 x SATA
Controller Interface Type	SATA 6Gb/s
Channel Qty	1
Optical Storage
Type	No optical drive
Monitor
Monitor Type	None.
Graphics Controller
Graphics Processor	Intel UHD Graphics 605
Video Interfaces	HDMI, DisplayPort
Audio Output
Sound Output Mode	Stereo
Networking
Ethernet Controller	Realtek RTL8111HS
Wireless LAN Supported	Yes
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 4.2
Expansion / Connectivity
Bays	1 (total) / 1 (free) x internal 2.5"
Slots	1 (total) / 0 (free) x M.2 Card - 2230 (Key A-E) 1 (total) / 1 (free) x M.2 Card - 2280
Interfaces	3 x USB 3.0 (1 front, 2 rear) 1 x HDMI 1 x Mini DisplayPort 1 x LAN (Gigabit Ethernet) 1 x headphones (1 in front) 1 x microphone (1 in front) 1 x USB-C 3.0 (1 in front)
Miscellaneous
Included Accessories	VESA wallmount adapter
Theft/Intrusion Protection	Security lock slot (cable lock sold separately)
Security Slot Type	Kensington security slot
VESA Mounting Interface	100 x 100 mm, 75 x 75 mm
Power
Device Type	Power adapter
Voltage Required	AC 100-240 V
Power Provided	65 Watt
Operating System / Software
OS Provided	No operating system
Dimensions & Weight
Width	11.26 cm
Depth	11.94 cm
Height	4.68 cm
Environmental Parameters
Min Operating Temperature	0 °C
Max Operating Temperature	35 °C
