S T O R A G E

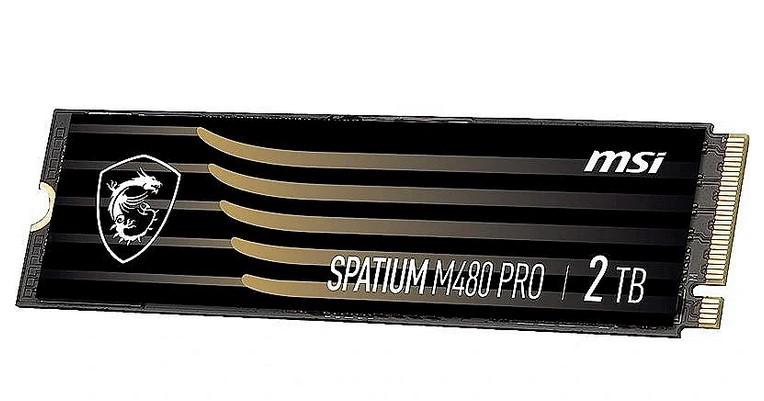

SPATIUM M480 PRO PCIe 4.0 NVMe M.2
© 2023 Micro-Star Int'l Co.Ltd. MSI is a registered trademark of Micro-Star Int'l Co.Ltd. All rights reserved.
SPECIFICATIONS
Model Name SPATIUM M480 PRO PCIe 4.0 NVMe M.2
Capacity 2TB
Controller PHISON E18
Flash Memory 3D NAND
DRAM Cache 2GB DDR4
Form Factor M.2 2280
Interface PCIe Gen4 x4, NVMe 1.4
Compatibility PCIe Gen4 / Gen3 / Gen2 / Gen1
Dimensions 80.00mm (L) x 22.00mm (W) x 2.15mm (H)
Sequential Read up to
(MB/s) 7400
Sequential Write up to
(MB/s) 7000
Random Read 4KB up to
(IOPS) 1,000,000
Random Write 4KB up to
(IOPS) 1,000,000
Maximum Operating Power
(W) 10.5
Idle Power PS3 (mW) 45
Low Power L1.2 (mW) 3
Operating Temperatures 0°C – 70°C
Storage Temperatures -40°C – 85°C
Terabytes Written (TBW) 1400
Mean Time Between Failure
(MTBF) Up to 1,600,000 Hours
