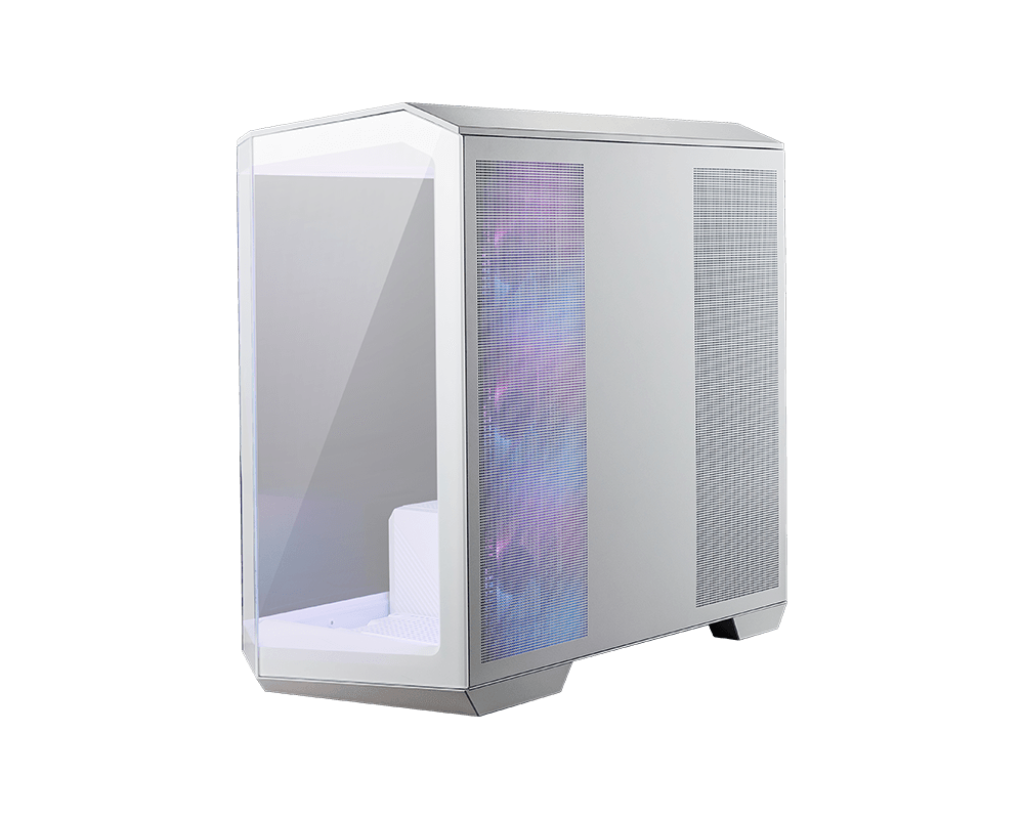

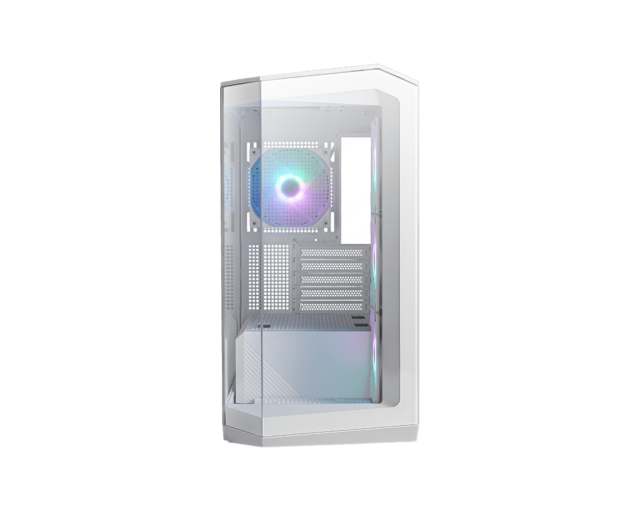

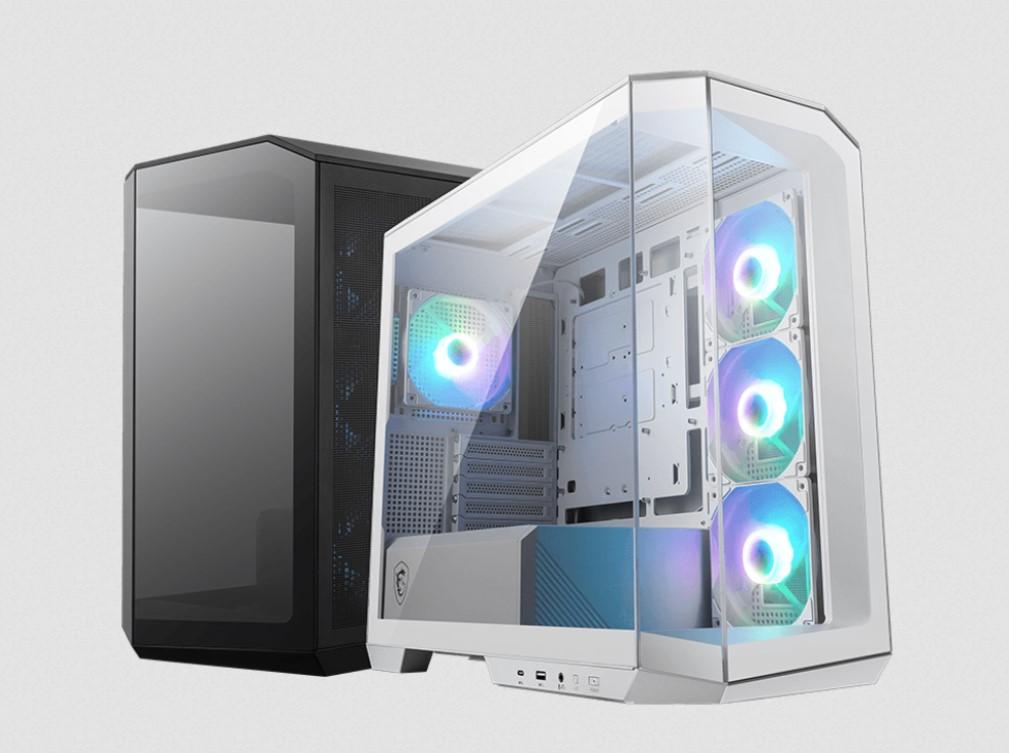

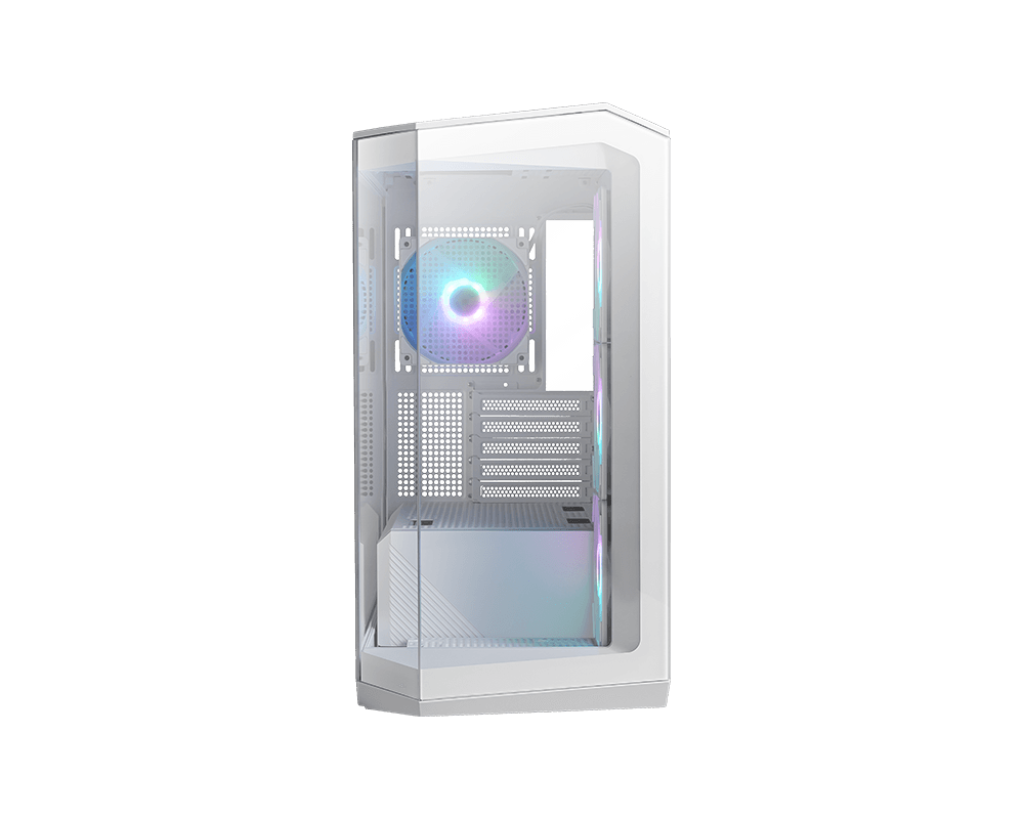

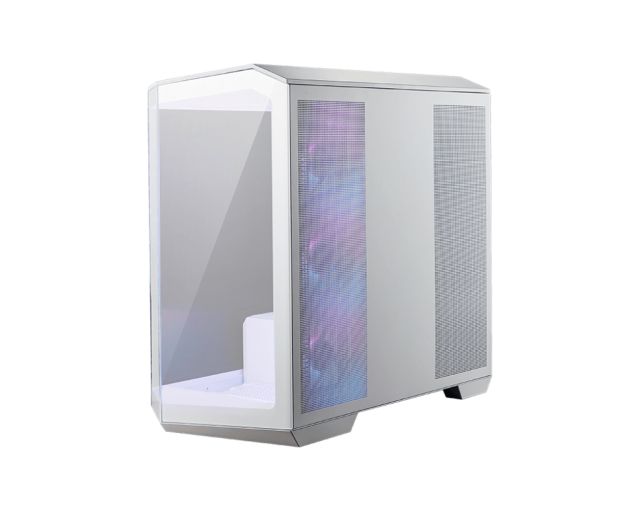

Product Name MAG PANO M100R PZ / WHITE
Case Form Factor Micro- ATX Tower
Motherboard Form Factor
Support M-ATX(Back-connect supported) / ITX
I/O Ports
1 x USB 3.2 Gen 1 Type-A
1 x USB 3.2 Gen 2x2 Type-C
1 x Audio-Out / Mic-in
1 x LED Switch Button
1 x Power Button
Drive Mount Support
1 x 2.5”
1 x 2.5”/3.5” combo (up to 2 x 2.5” or 1 x
2.5”+ 1 x 3.5”)
Expansion Slots 5
Maximum GPU Length 390 mm / 15.35 inches *Support horizontal
installation only.
Maximum CPU Cooler Height 175 mm / 6.9 inches
Power Supply Support ATX
Maximum PSU Length 200 mm / 7.87 inches
Fan Size Support
Top: 3 x 120 mm / 2 x 140 mm
Front: NA
Rear: 1 x 120 mm / 1 x 140 mm
Side: 3 x 120 mm
Bottom: 1 x 120 mm
PSU Shroud: 2 x 120 mm
Pre-installed Fan Size Side: 3 x 120 mm
Rear: 1 x 120 mm
Pre-installed Fan Type Side: 3 x ARGB Fan (Reverse-blade)
Rear: 1 x ARGB Fan
Radiator Size Support
Top: 120 / 240 / 360 mm
Front: NA
Rear: 120 / 140 mm
Side: NA
Bottom: NA
Dimensions (DxWxH) 440 x 235 x 405 mm / 17.32 x 9.25 x 15.94
inches
Net Weight 8.66 kg
Gross Weight 11.29 kg
