Кутия ASUS AP201 PRIME, 2 x USB 3.2, 1 x USB 3.2 Gen 2 Type-C, 1 x Audio Out, 1 x Audio In, mATX, Бяла

SKU: 90DC00G3-B39010

ID: #28435

Характеристики

Включени вентилатори: Зад.панел: 1 x 120 мм

Брой 3.5“ гнезда: 3

Брой 2.5“ SSD гнезда: 3

Захранване: Не

Форм фактор: Micro ATX

Цвят: White

Гаранция (месеца): 36

Направи запитване

Количество: бр.

Доставка до адрес:

Имена:

E-mail:

Телефон:

Съгласие за обработване на личните ми данни за целите на директния маркетинг.

Добави за сравнение

Описание

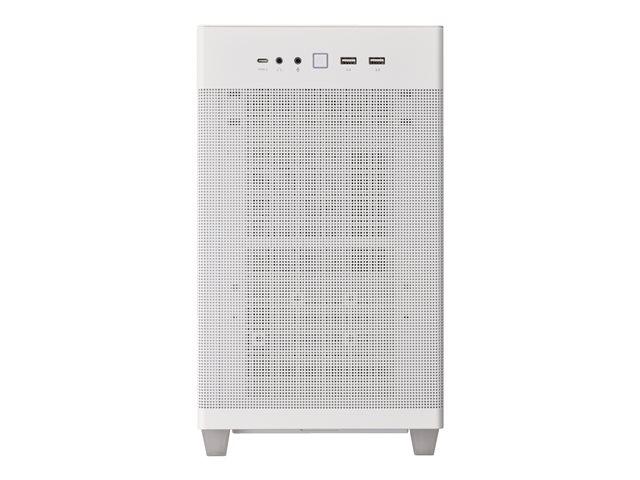

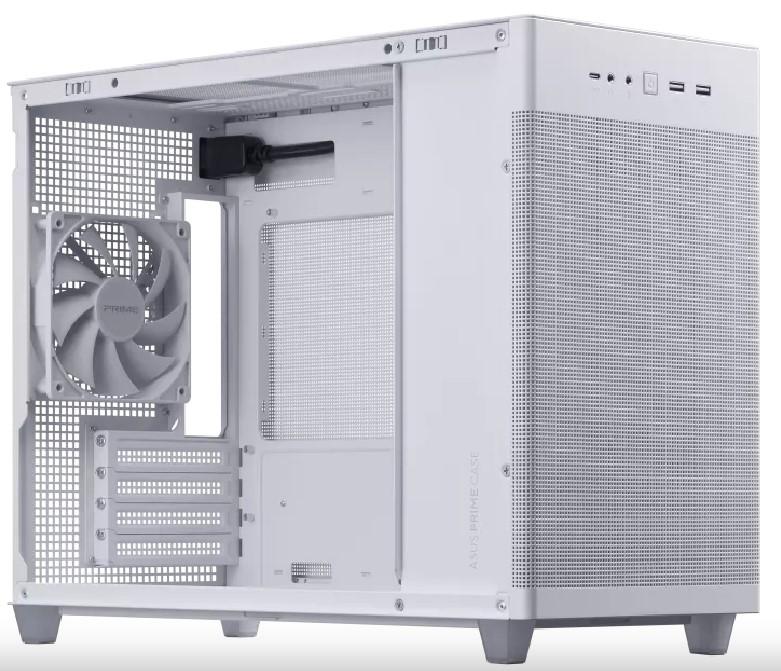

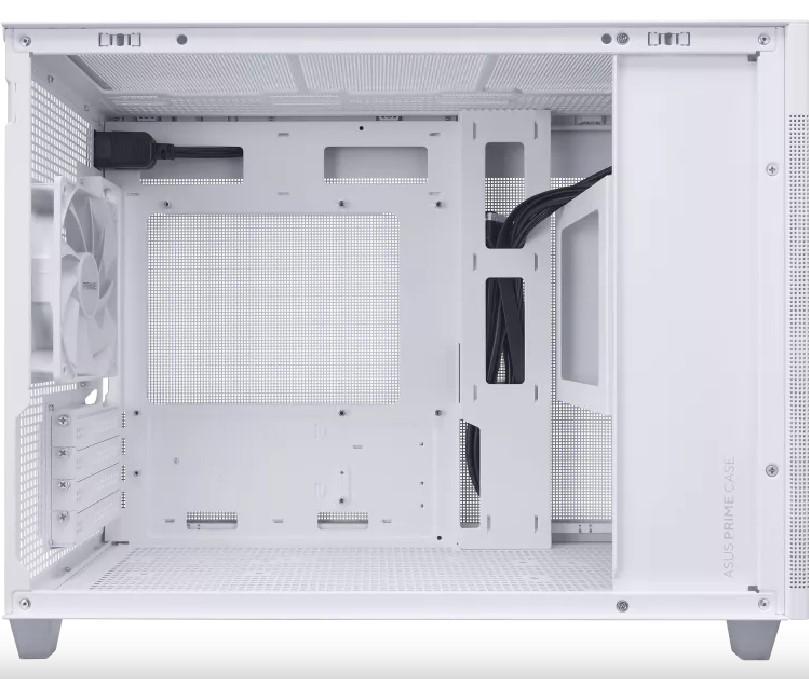

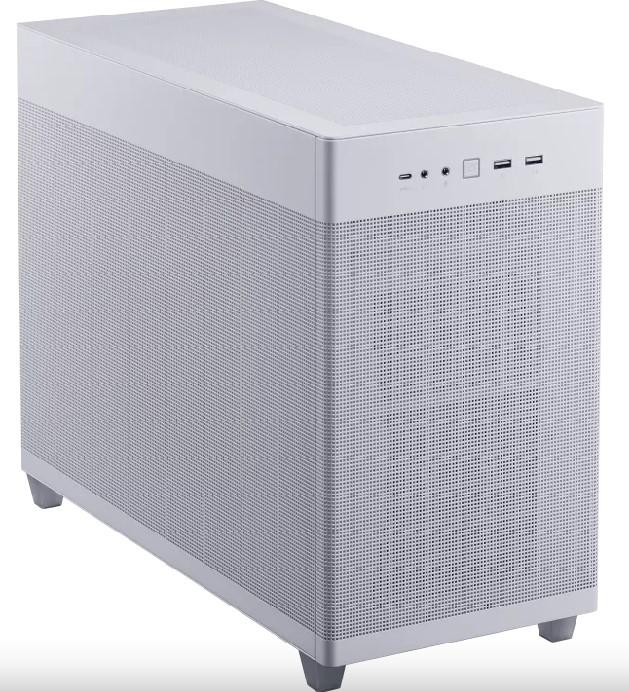

ASUS AP201 PRIME mATX CASE MESH TG WHITE


Manufacturer	ASUS
Manufacturer Part No	90DC00G3-B39010

Marketing Description
The ASUS Prime AP201 is a stylish microATX case with tool-free side panels and a quasi-filter mesh, with support for 360 mm coolers, graphics cards up to 338 mm long, and standard ATX PSUs.
Product Features
Go big, stay compact The ASUS Prime AP201 is a microATX chassis design, delivering a high-performance platform that invites 360 mm AIO coolers and graphics cards up to 338 mm long, all within a compact space. Tool-free side panels with a quasi-filter mesh also provide easy access and enhanced airflow, and they complete a tasteful, minimalist aesthetic that can be the centerpiece of any DIY PC build. Quasi-filter mesh panels The AP201 mesh design is comprised of over 57000 precision-machined 1.5 mm holes, structured to increase airflow, reduce dust ingress, and collectively provide a compelling view of the components within your build. Stay chilled With support for 280 and 360 mm radiators and up to 6 fans, the AP201 is primed to deal with the thermal onslaught of high-performance hardware. Removable dust filter The two 120 mm fan mounts at the bottom of the AP201 include a dust filter that can be removed for easy cleaning, or to enhance airflow even further. Load up Despite its compact size, the AP201 supports standard ATX power supplies up to 180 mm long, graphics cards up to 338 mm long, custom liquid cooling setups, and a spread of storage devices. Tool-free side panels Instead of making you wrestle with screws or potentially awkward hinges, the side panels of the AP201 both use a simple but secure clip mechanism to attach to the case. This makes them easy to remove when you want to access the interior of the chassis, and resistant to being accidentally dislodged. Sizeable cable management The AP201 features an extended motherboard tray with strategically placed cutouts and a 32 mm gap, giving builders ample room to tuck cables out of sight and create a clean aesthetic for their DIY PC.
General
Form Factor	Small tower
Windowed Side Panel	Yes
Windowed Side Panel Material	Tempered glass
Max Mainboard Size	Micro ATX
Supported Motherboards	microATX, Mini-ITX
Internal Bays Qty	4
Colour	White
Cooling System	Top: 120 mm fan mount x 3 / 2 x 140 mm fan or 120/140/240/280/360mm radiator supported Rear: 120 mm fan x 1 / 120 mm radiator supported
CPU Cooler Max Height	170 mm
Video Card Max Length	338 mm
Power Supply Max Length	180 mm
System Cabinet Features	Meshed front panel, meshed side panel, tool-less side panels, bottom removable dust filter, cable management system (32 mm clearance)
Expansion / Connectivity
Expansion Bays	1 (total) / 1 (free) x internal - 2.5" 3 (total) / 3 (free) x internal - 2.5" / 3.5" shared
Expansion Slots	4
Interfaces	2 x USB 3.2 Gen 1 Headphones Microphone USB-C 3.2 Gen 2
Power
Power Device	No power supply
Dimensions & Weight
Width	20.5 cm
Depth	46 cm
Height	35 cm
Weight	5.8 kg
Manufacturer Warranty
Service & Support	Limited warranty - 2 years
