A L L - I N - O N E P C S

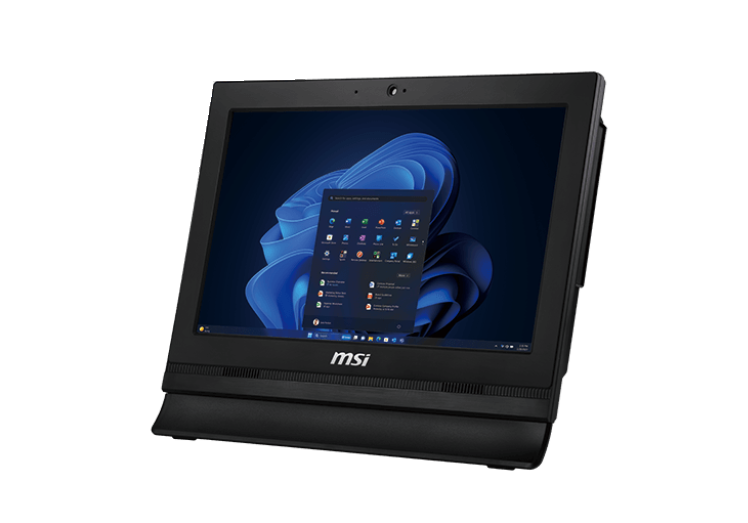

PRO AP162T ADL
Panel Resolution:
15.6" IPS Grade Panel LED Backlight (1920 x 1080 FHD)
CPU
Intel Processor N100 0.8GHz Cores 4 6W, Cache 6MB, Threads 4
Graphics Intel® UHD Graphics
Chipset Intel® SoC
Memory 1x DDR4 3200MHz SO-DIMMs, up to 16GB
Storage 256GB 1x M.2 SSD (PCIE)
1x 2.5” HDD with HDD Caddy
LAN 2x Realtek RTL8111H
Wireless LAN Intel® Wi-Fi 6E AX211
Intel® Wi-Fi AC 9462 (either one)
Bluetooth 5.3 (AX211) / 5.1 (AC 9462)
Audio Realtek® ALC256
Audio Speaker 2x 2.5W
I/O

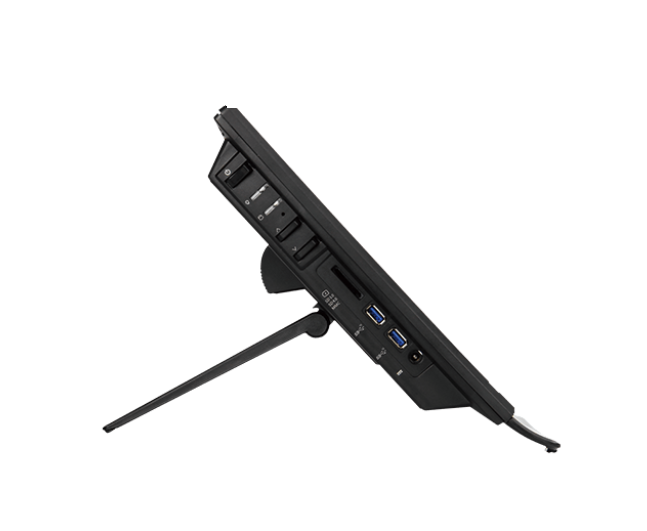

Side:
1x Card reader
2 x USB 3.2 Gen 2 Type A

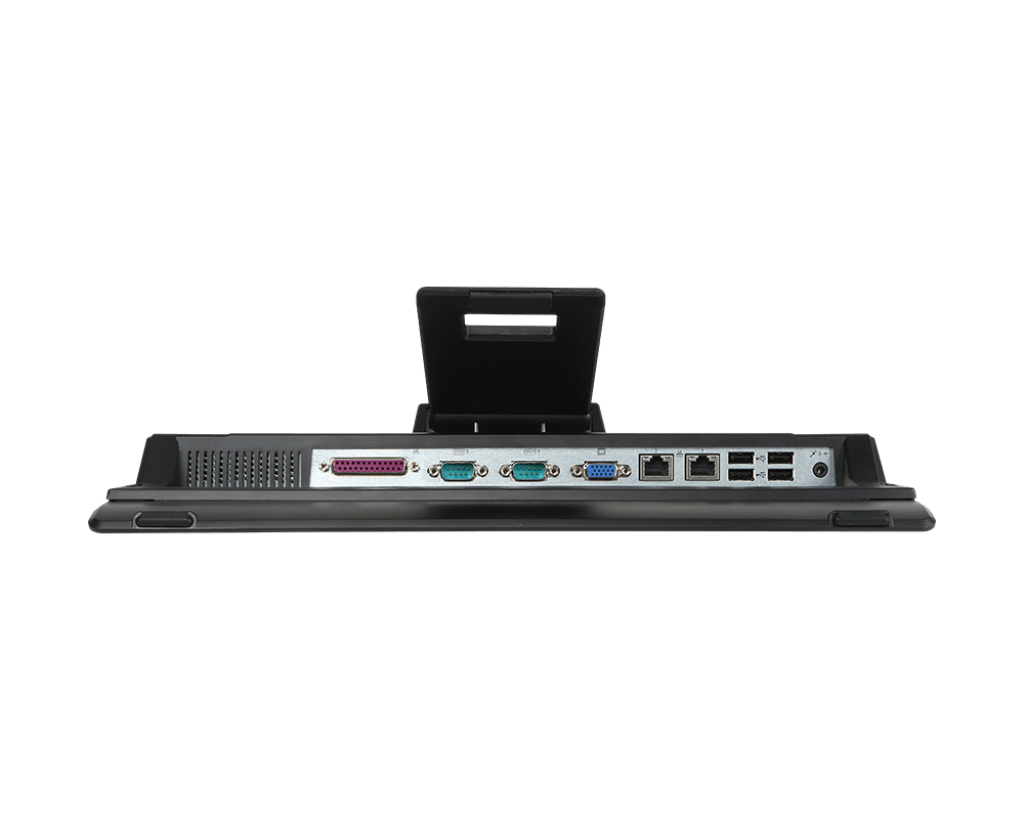

Rear:
1 x Line-out/Microphone-in
4 x USB 2.0 Type A
2 x RJ-45 LAN
1 x VGA Port
2 x Serial Port (COM Port)
1 x Parallel Port (Printer Port)
Webcam Built-in HD Webcam
Touch Panel Resistive Single Touch (PRO AP162T ADL)
Non-touch (PRO AP162 ADL)
Panel Resolution 15.6" IPS Grade Panel LED Backlight (1920 x 1080
FHD)
AC Adapter 65W
AIO Wall Mount Kit III VESA standard (STD 100*100mm) (Optional)
DIMENSION (WxDxH) 399.5 x 69.2 x 313.9 mm (15.73 x 2.72 x 12.36
inch)
Net Weight 3.94 kg (8.69 lbs)
Gross Weight 5.78 kg (12.74 lbs)
SECURITY UTILITY &
DEVICE MSI Center: System Diagnosis
Certificates FCC, CB/CE, UL & CUL, VCCI, RCM
