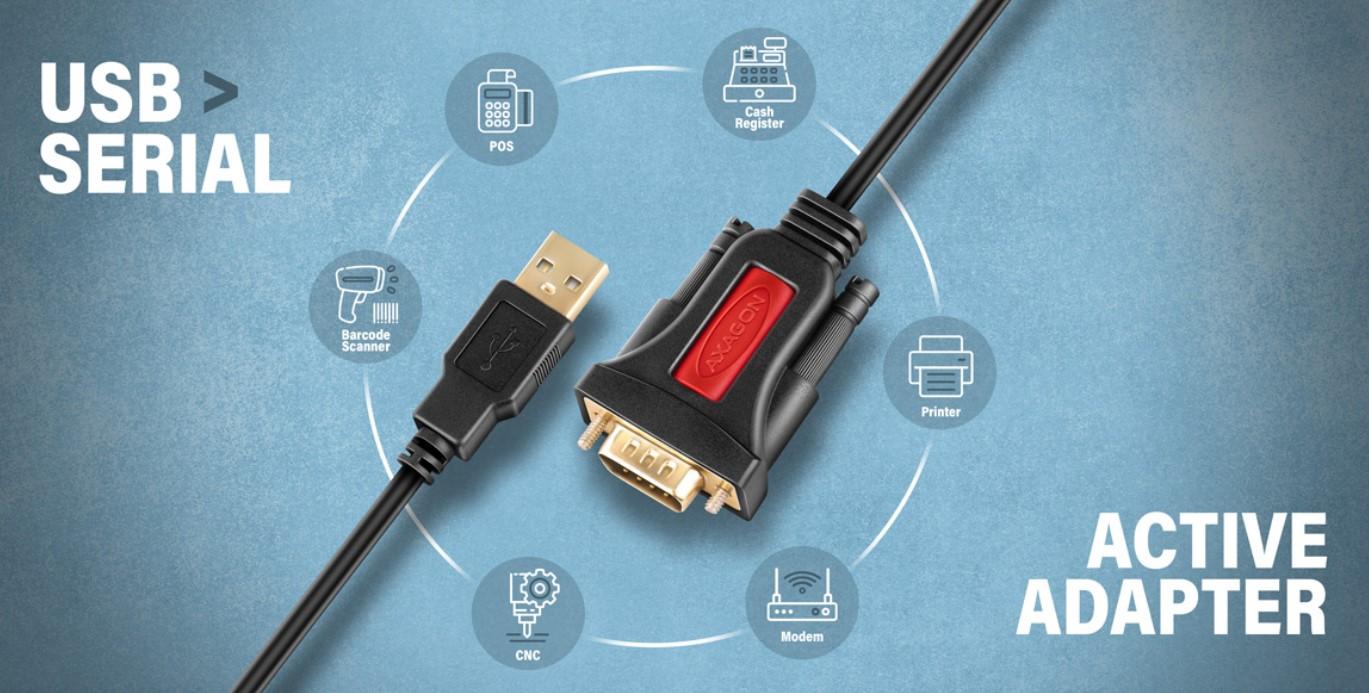

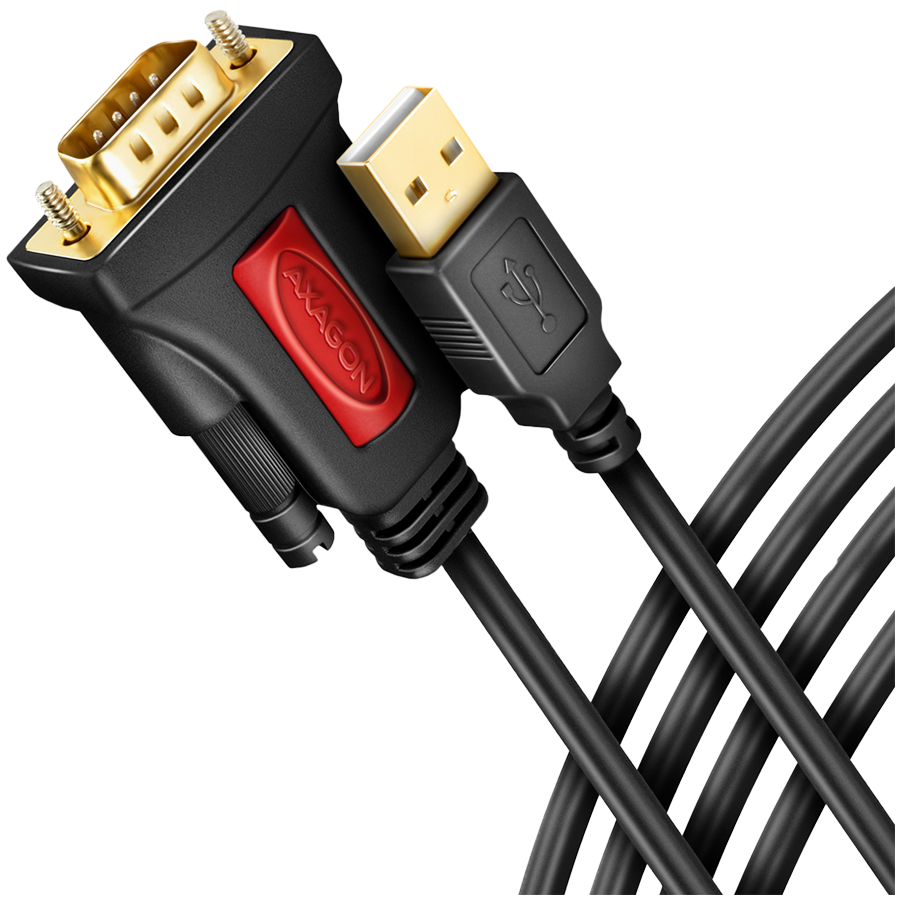

Кабел Axagon Active USB-A 2.0 към RS 232
изчерпан
Кабел Axagon Active USB-A 2.0 към RS 232
Кабел Axagon Active USB-A 2.0 към RS 232

Кабел Axagon Active USB-A 2.0 към RS 232

SKU: ADS-1PSN
ID: #36305

Характеристики

Конектор 1: USB-A
Конектор 2: RS232 9 Pin мъжко
Гаранция (месеца): 24

Направи запитване

Описание

interface USB 2.0 / USB 1.1
rate 12 / 1.5 Mbit/s (full / low speed)
connector USB Type A male (on the cable)
cable 1.5 m, permanently connected
Output
interface serial RS-232
rate 75 bit/s - 1000 kbit/s
connector DB9 male
compatibility UART 16C950 / 16C850 / 16C750 / 16C650 / 16C550
Supported features
automatic installation yes (Windows Update)
adjustable flow control yes (Xon/Xoff, hardware, none)
adjustable word length yes (4, 5, 6, 7 or 8 bits)
adjustable parity yes (even, odd, none, mark, space), 1, 1.5, or 2 stop bits
adjustable latency no
adjustable interruption no
Plug and Play yes
Other features
gold-plated connectors yes
shielding yes
buffer yes (FIFO sending 768B / receiving 256B)
indication no
chipset Prolific PL2303GT
dimensions 35 x 56 x 17 mm
weight 83 g (including USB cable)
Power supply
on the bus yes (USB bus power)
through power adapter no
OS support
MS Windows 11 / 10 / 8.1 / 8 / 7 / Vista / XP (all 32- and 64-bit versions)
MS Windows Server 2022 / 2019 / 2016 / 2012 / 2008 / 2003 (all 32- and 64-bit versions)
Mac OS 10.4.x and higher
Linux kernel 2.6.x and higher
Android yes
