| Computer Connections |
2 |
| Connectors |
| Computer |
CPU1:
1 x USB Type C Female
CPU2:
1 x USB Type C Female |
| Device |

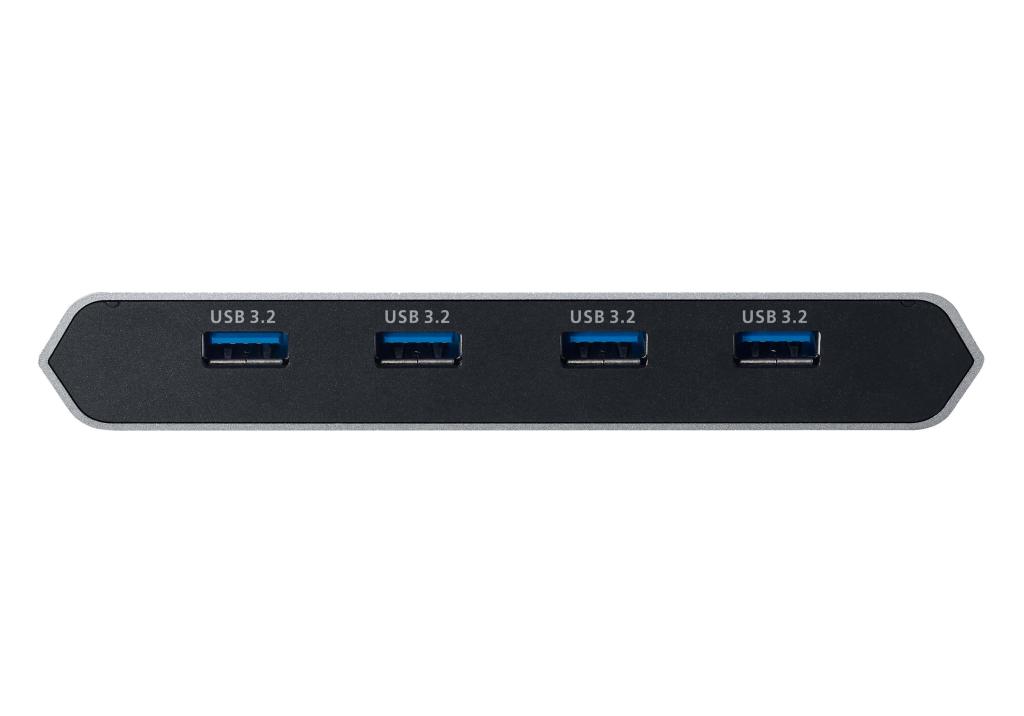

4 x USB 3.2 Gen 1 Type-A Female |
| Video Output |
1 x DisplayPort Female |
| Power |
1 x DC jack for 12V 3.3A
1 x USB-C Female*
Port 1 : Supports USB-C PD laptop charging at 5V, 9V, 15V, 20V output
Port 2 : Supports max. 5V, 3A output
*Supports maximum 100W USB-C PD power adapter input. |
| Port Selection |
| Input |
Port Switch Button |
| Video Resolution |
3840 x 2160@60
3840 x 2160@120
3840 x 2160@144
7680 x 4320
Note: Please make sure your host device and its accessories meet the Thunderbolt 4 or USB 4.0, with DP 1.4 specifications to deliver up to 4K @ 144 / 120 Hz and 8K resolutions. The USB bandwidth may be limited to USB 2.0 when the video output resolution is over 4K @ 60 Hz. |
| System Requirements |
Windows 10 and above, USB-C enabled computer with DP Alt Mode*
* With Intel 7th-Generation Core Processor (Kaby-Lake) and above. More info about CPU generation, please find: https://www.intel.com/content/www/us/en/processors/processor-numbers.html
Mac OS X 10.12 and later, USB-C enabled computer
Android 8.0 and later, USB-C enabled Smartphone with DP Alt Mode**
**Only Samsung and Huawei support PC-like operation, others only support mirror mode. For a list of supporting mobile device, refer to US3311's user manual.
iPadOS 13.1 and later, iPad Pro (USB-C)*
*Support video output in mirror mode
iOS 17.1 and later*
*Compatible with the Apple iPhone 15 Pro series. |
| Power |
| Maximum Input Power Rating |
DC12V, 3.3A |
| Power Consumption |
DC12V:1.68W:117BTU |
| LEDs |
| Selected |
2 (White) |
| Environmental |
| Operating Temperature |
0–40°C |
| Storage Temperature |
-20–60°C |
| Humidity |
0–80% RH, Non-condensing |
| Physical Properties |
| Housing |
Aluminum |
| Weight |
0.35 kg ( 0.77 lb ) |
| Dimensions (L x W x H) |
14.30 x 11.90 x 2.38 cm
(5.63 x 4.69 x 0.94 in.) |
