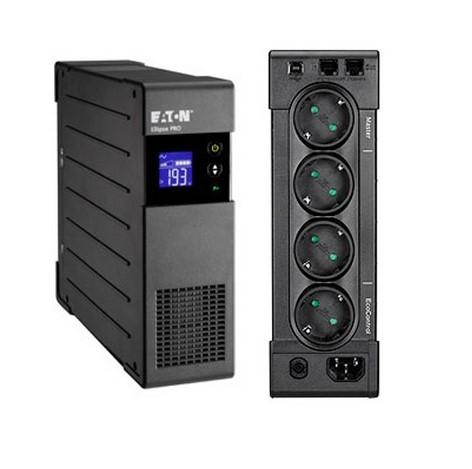

Eaton Ellipse PRO UPS 650 USB IEC, 650VA/400W, Rack / Tower, Line Interactive

SKU: ELP650DIN

ID: #40573

Цена: 354,00 лв.

Цената е с вкл. ДДС

Характеристики

Капацитет: 650VA / 400W

Тип: Line Interactive

Формфактор: Rack / Tower

Брой изводи: 5

Тип изводи: 1 x power IEC 60320 C14, 3 x power CEE 7/7 (UPS and surge), 1 x power CEE 7/7 (surge)

Гаранция (месеца): 36

Бърза Поръчка

Съгласявам се с общите условия и обработка на личните ми данни.

Добави за сравнение

Описание

Eaton UPS Ellipse PRO 650 USB IEC (rack/tower) - AC 230 V - 400 Watt - 650 VA - USB - IEC-320-C13 4 Output - 2U - 19inch


Manufacturer	EATON
Manufacturer Part No	ELP650DIN

Marketing Description
The Eaton Ellipse PRO 650 650VA is a line interactive UPS specifically developed to protect workstations running demanding applications. The Ellipse PRO features a LCD display for real time status and measurements, 4 outlets ( 3 with battery backup and lightning protection and one with lightning protection. This unit includes Eco Control power outlets, which enable energy savings up to 20 percent and Advanced Surge Reduction (ASR) that complies fully with the requirements of the IEC 616431-1 standard. This UPS can be either placed as a tower, in a rack or be wall mounted. The Ellipse PRO also includes the Eaton Intelligent Power Manager software. It is an ideal protection for all business computers.
General
Device Type	UPS - external
Height (Rack Units)	2U
Rack Size	19"
Power Device
UPS Technology	Line interactive
Input Voltage	AC 230 V
Input Voltage Range	AC 165 - 285 V
Input Voltage Range (Adjustable)	AC 150 - 285 V
Frequency Provided	50/60 Hz
Frequency Required	50/60 Hz
Input Connectors	1 x power IEC 60320 C14
Power Output Connectors Details	3 x power CEE 7/7 (UPS and surge) 1 x power CEE 7/7 (surge)
Output Voltage	AC 220/230/240 V + 15% / - 20% - 50/60 Hz
Power Capacity	400 Watt / 650 VA
Dataline Surge Protection	Network/phone line - RJ-45/RJ-11 - 1 input line / 1 output line
Surge Suppression	Yes
Circuit Protection	Circuit breaker
Battery
Technology	Lead Acid
Capacity	7 Ah
Run Time (Up To)	9 min at half load 5 min at 70% load
Networking
Remote Management Interface	USB
Expansion / Connectivity
Interfaces	1 x management (USB) - 4 pin USB Type B
Miscellaneous
Cables Included	USB cable - external
Rack Mounting Kit	Optional
Features	Wall mountable, LCD display, Automatic Voltage Regulation (AVR), deep discharge protection, cold-start function, EcoControl Master/Control outlets
Compliant Standards	CB, IEC 62040-1-1, IEC 62040-2, IEC 61643-1, EN 62040-1-1, EN 62040-2
Software / System Requirements
Software Included	Eaton UPS Companion
Manufacturer Warranty
Service & Support	Limited warranty - 3 years Limited warranty - batteries - 3 years
Environmental Parameters
Min Operating Temperature	0 °C
Max Operating Temperature	35 °C
Humidity Range Operating	0 - 85%
Dimensions & Weight
Width	8.2 cm
Depth	28.5 cm
Height	26 cm
Weight	6.6 kg
