CPU Support
Support Intel Core Ultra Processors (Series 2)
CPU Socket
LGA 1851
Chipset
Intel H810 Chipset
Expansion Slots
1 x PCIe 5.0 x16 slot
2 x PCIe 4.0 x1 slots
Display Interface
Support 4K@60Hz as specified in HDMI 2.1
DisplayPort 1.4 – Requires Processor Graphics
Memory
Support 2 DIMMs, Dual Channel DDR5 - 6400 MT/s (MAX)
• 1DPC 1R Max speed up to 6400 MT/s
• 1DPC 2R Max speed up to 6400 MT/s
Supports Intel POR Speed and JEDEC Speed
Supports Intel XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM
• The DIMM slots on this motherboard have double-sided latches.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration.
Storage
1 x M.2 Gen4 x4 64Gbps slot
4 x SATA 6Gbps ports

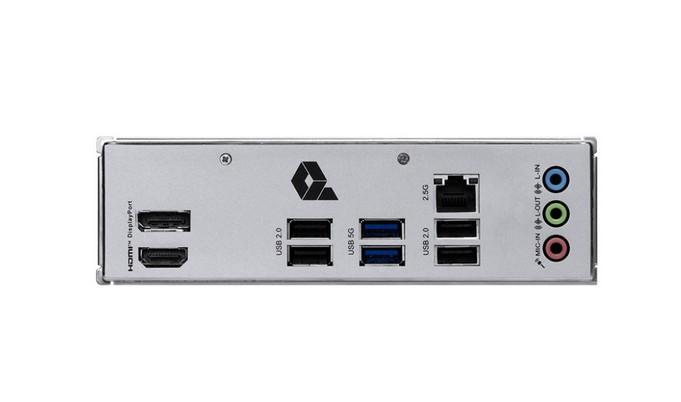

USB ports
1 x USB 10Gbps (1 Type-C)
4 x USB 5Gbps (4 Type-A)
8 x USB 2.0
LAN
Realtek 8125 2.5Gbps
Audio
8-Channel (7.1) HD Audio with Audio Boost (Realtek ALC897 Codec)
PCB Info
mATX
220mmx243.84mm
