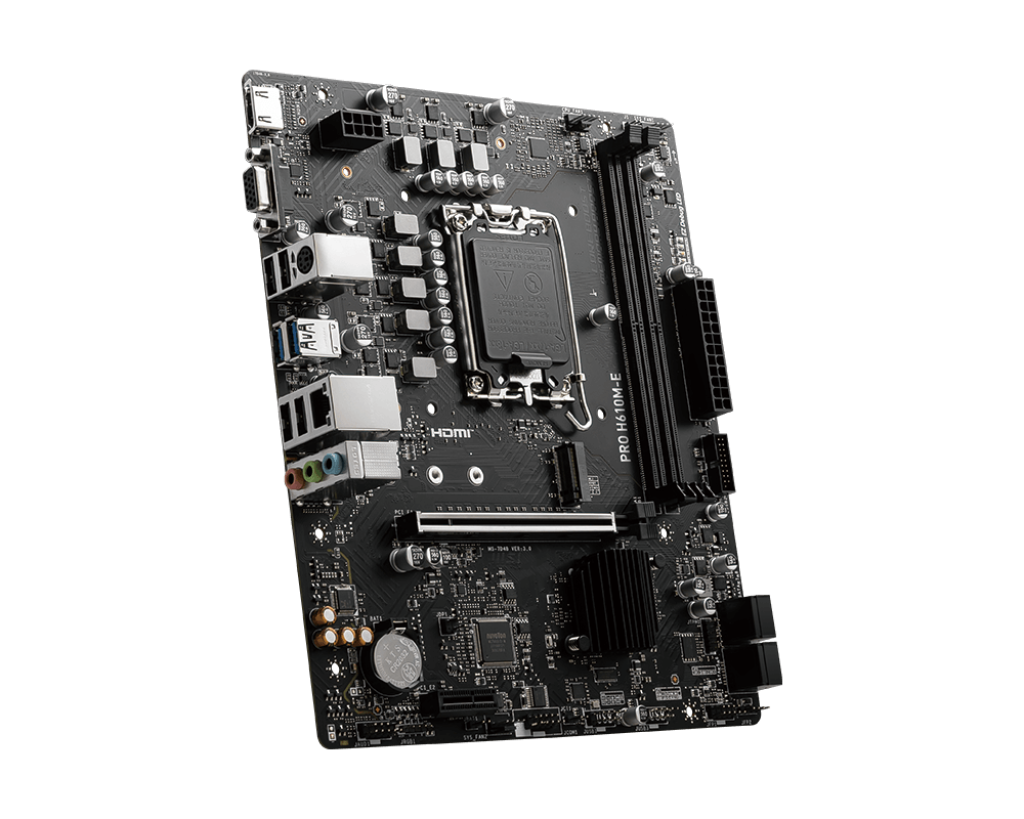

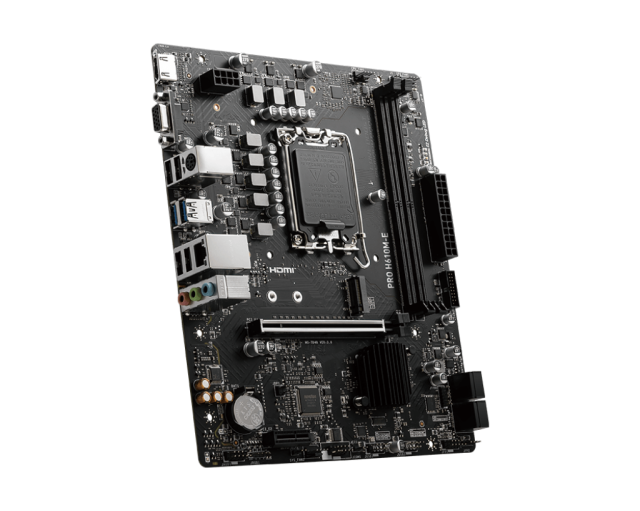

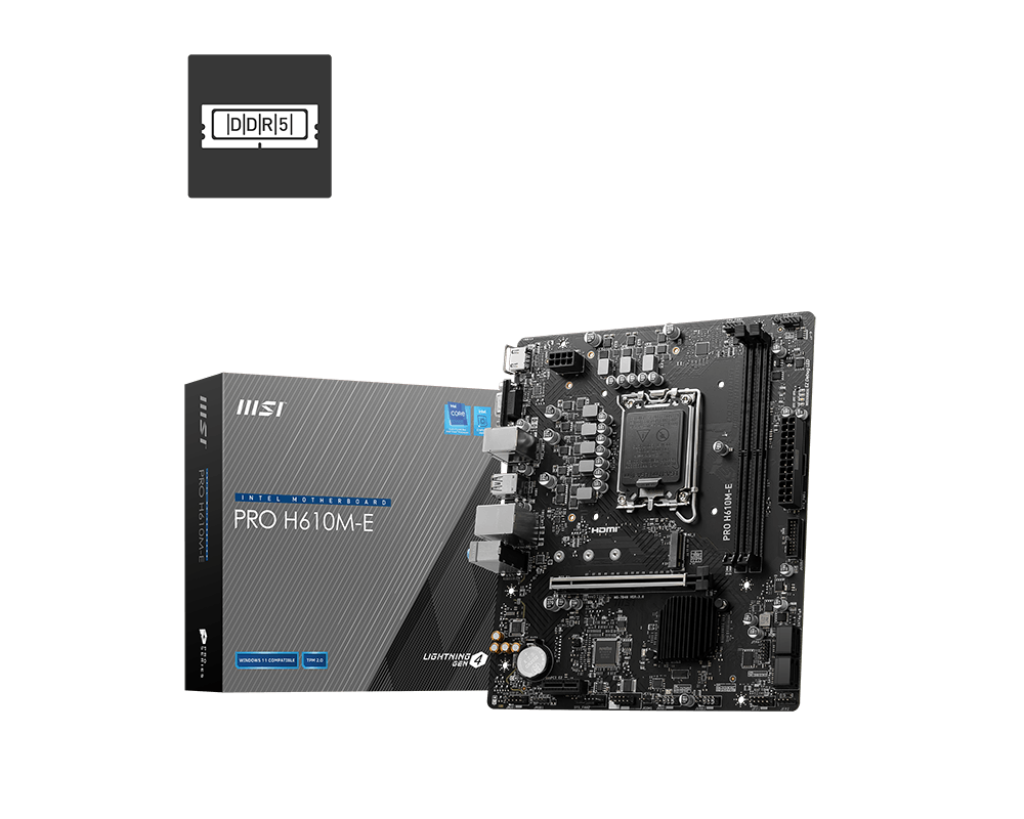

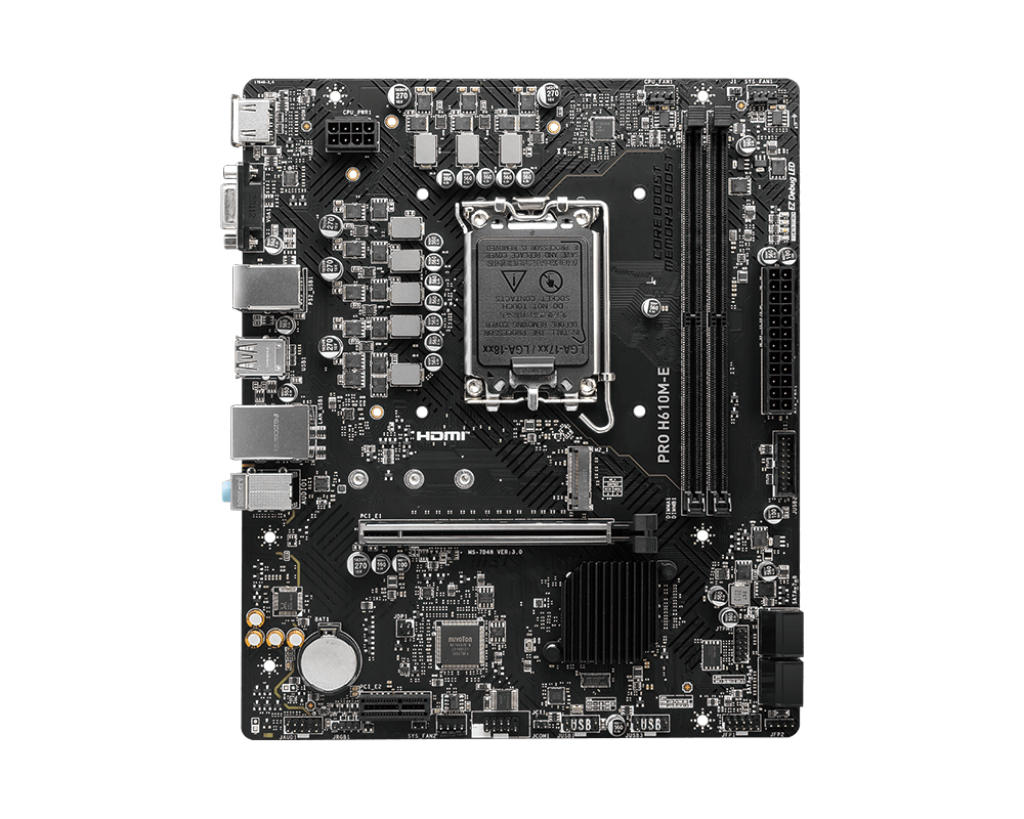

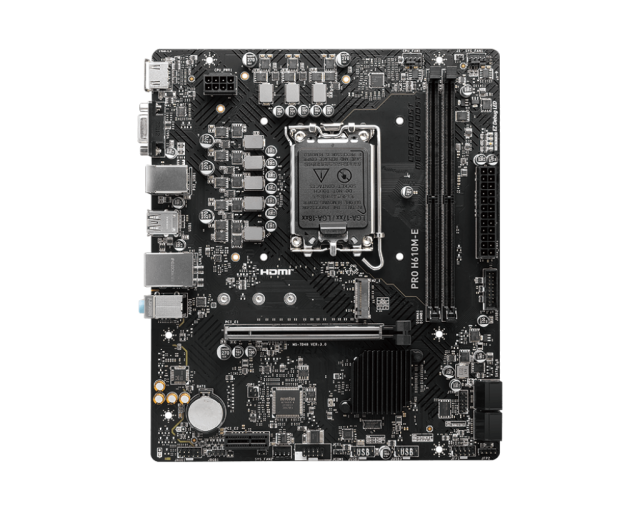

Дънна платка MSI PRO H610M-E, Socket 1700, 4x DDR5, 1x M.2 slot, 1x HDMI, 1x VGA, mATX

Дънна платка MSI PRO H610M-E, Socket 1700, 4x DDR5, 1x M.2 slot, 1x HDMI, 1x VGA, mATX

SKU: PRO H610M-E / 911-7D48-019
ID: #34641

Характеристики

Поддържани процесори: Intel® LGA 1700 socket: Ready for Intel® Core™ 14th & 13th Gen Intel® Core™ processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors
CPU Socket: Intel LGA1700
Чипсет: Intel H610
Максимален капацитет RAM памет: 4x DDR5, Maximum Memory Capacity 192GB
Памет, слотове: 2 slots
Поддържана памет: DDR5
M.2 слот: 1 M.2 2280 PCIe 3.0x4
Graphics технология: Няма
Мрежа: 10/100/1000 Mbps
Wi-Fi Mодул: Не
HDMI: 1
VGA: 1
Форм фактор: Micro ATX
Гаранция (месеца): 36

Направи запитване

Описание

Model Name PRO H610M-E
CPU Support Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel®
Pentium® Gold and Celeron® Processors
CPU Socket LGA 1700
Chipset Intel® H610 Chipset
Expansion Slots 1x PCIe 4.0 x16 slot
1x PCIe 3.0 x1 slot
Display Interface Support 4K@30Hz as specified in HDMI™ 1.4, VGA– Requires
Processor Graphics
Memory Support 2 DIMMs, Dual Channel DDR5-5600MHz(MAX)
Storage 1x M.2 Gen3 x4 32Gbps slot,
4x SATA 6Gbps ports

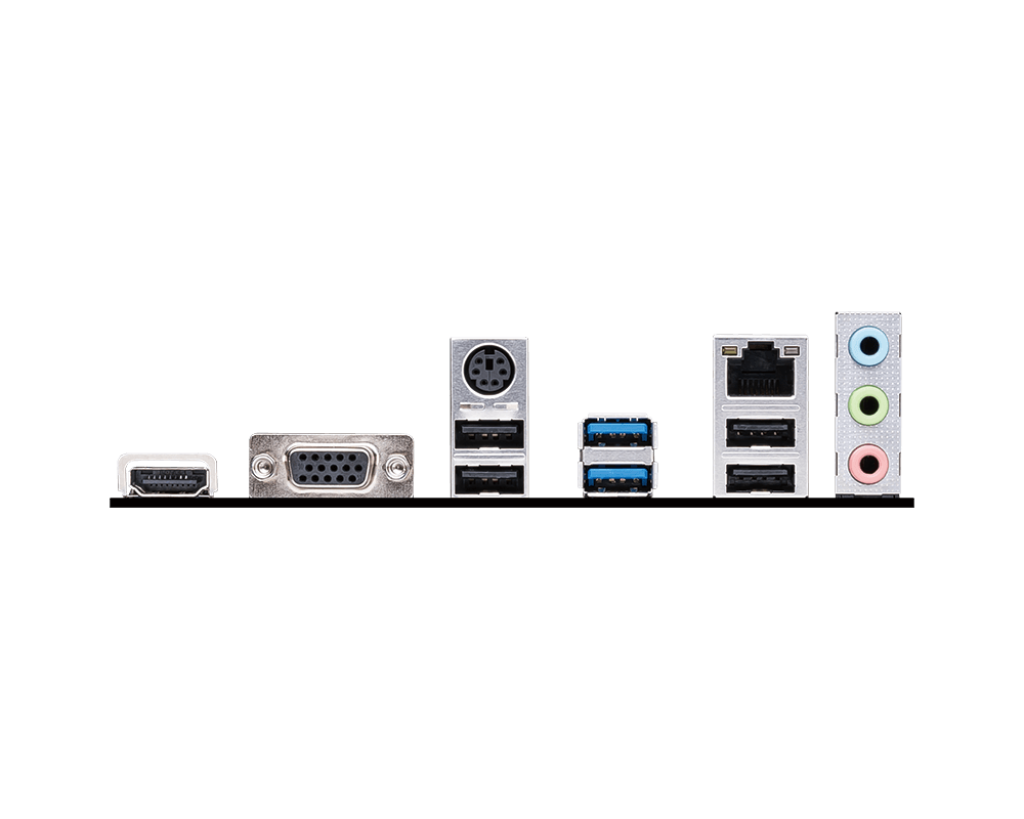

USB ports 4x USB 3.2 Gen 1 5Gbps (4 Type-A),
8x USB 2.0
LAN Realtek® RTL8111H Gigabit LAN
Audio 8-Channel (7.1) HD Audio with Audio Boost
