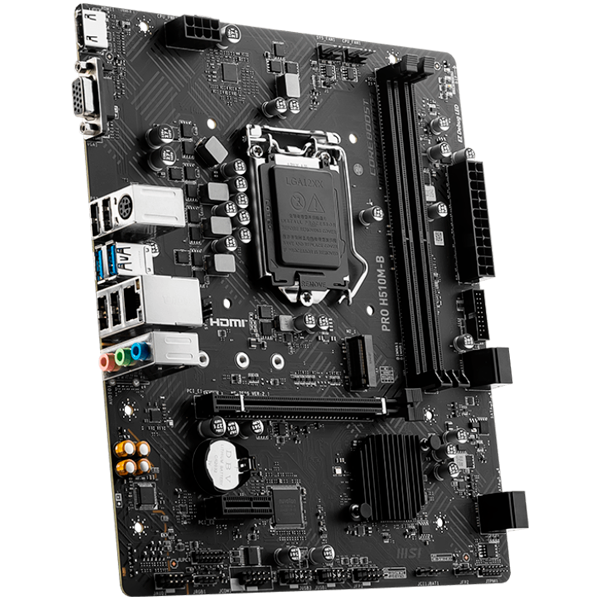

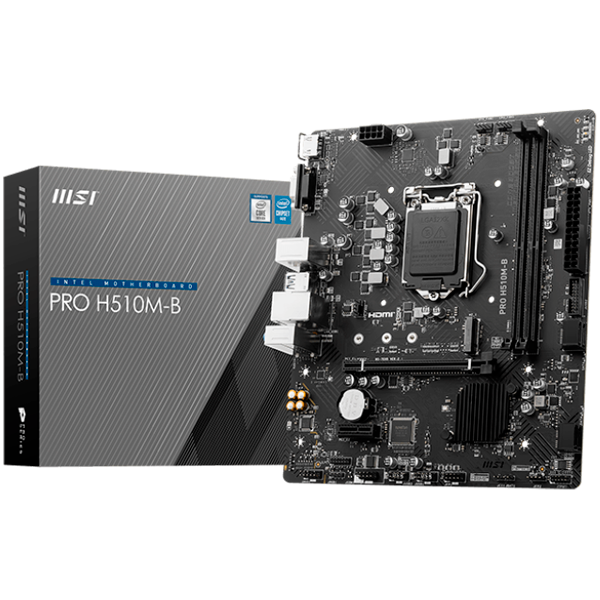

Дънна платка MSI PRO H510M-B DDR4, H470, LGA1200, 2x DDR4, 1x M.2 slots, 1x PCIe x16 slots, 1x HDMI, 1x VGA, mATX
Дънна платка MSI PRO H510M-B DDR4, H470, LGA1200, 2x DDR4, 1x M.2 slots, 1x PCIe x16 slots, 1x HDMI, 1x VGA, mATX
Дънна платка MSI PRO H510M-B DDR4, H470, LGA1200, 2x DDR4, 1x M.2 slots, 1x PCIe x16 slots, 1x HDMI, 1x VGA, mATX

Дънна платка MSI PRO H510M-B DDR4, H470, LGA1200, 2x DDR4, 1x M.2 slots, 1x PCIe x16 slots, 1x HDMI, 1x VGA, mATX

SKU: PRO H510M-B
ID: #35134
Цена: 136,00 лв.
Цената е с вкл. ДДС

Характеристики

Поддържани процесори: Supports 10th Gen Intel® Core™ Processors (Socket 1200)
CPU Socket: Intel LGA1200
Чипсет: Intel H470
Максимален капацитет RAM памет: 64 GB
M.2 слот: 1 M.2 2280 NVMe PCIe 3.0 x4
Graphics технология: Няма
Мрежа: 1 x 10/100/1000 Mbps (RJ-45)
Wi-Fi Mодул: Не
HDMI: 1
VGA: 1
Форм фактор: Micro ATX
Гаранция (месеца): 36

Бърза Поръчка

Описание

MSI PRO H510M-B DDR4, mATX, Chipset H470 (supports only 10th Intel processors), Socket 1200, Dual Channel DDR4 up to 2933MHz, 1x PCIe x16 slots, 1x M.2 slots, 1x HDMI, 1x VGA, 2x USB 3.2 Gen 1, 4x USB 2.0, 7.1 HD Audio, 1Gbps LAN, EZ Debug LED

Chipset INTEL H470
CPU Supports 10th Gen Intel Core and Pentium Gold/Celeron processors for LGA 1200 Socket
Memory 2x DDR4, Maximum Memory Capacity 64GB
Memory Support 2933/ 2666/ 2400/ 2133 MHz
Supports 1R 2133/ 2666/ 2933 MHz for Intel® Core™ i9/ Core™ i7 CPU
Supports 1R 2133/ 2666 MHz for Intel® Core™ i5/ Core™ i3/ Pentium® Gold and Celeron® CPU
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
Onboard Graphics 1x HDMI™
Support HDMI™ 1.4, maximum resolution of 4K 30Hz*
1x VGA
Support VGA, maximum resolution of 2048x1536 50Hz, 1920x1200 60Hz
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot 1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Storage 1x M.2
M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
USB 4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
LAN Realtek® 8111H Gigabit LAN
Audio Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Internal IO 1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
LED FEATURE 4x EZ Debug LED
BACK PANEL PORTS
  1. HDMI™
  2. VGA
  3. Keyboard / Mouse
  4. USB 3.2 Gen 1 5Gbps (Type-A)
  5. LAN port
  6. Audio Connectors
  7. USB 2.0
  8. USB 2.0
OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Info mATX
202mmx236mm
