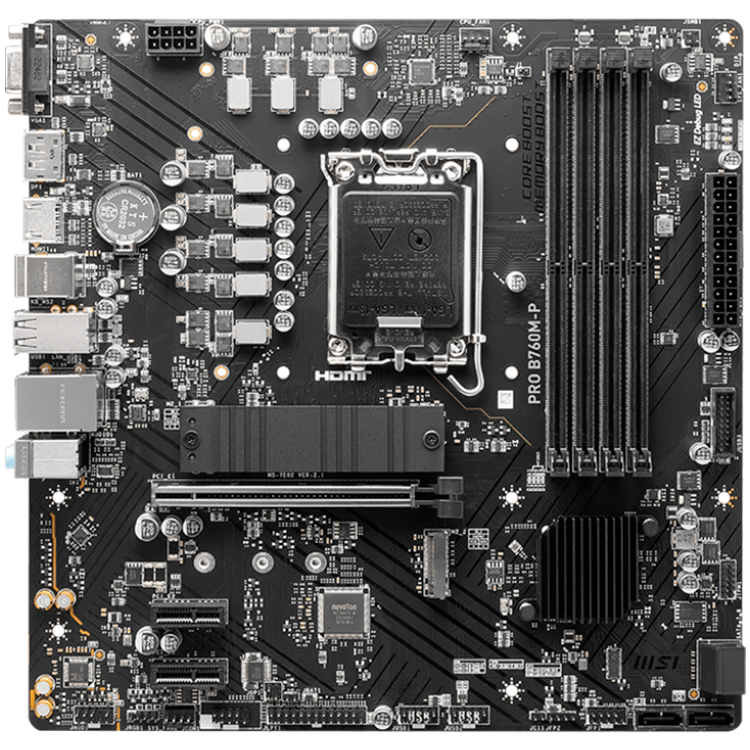

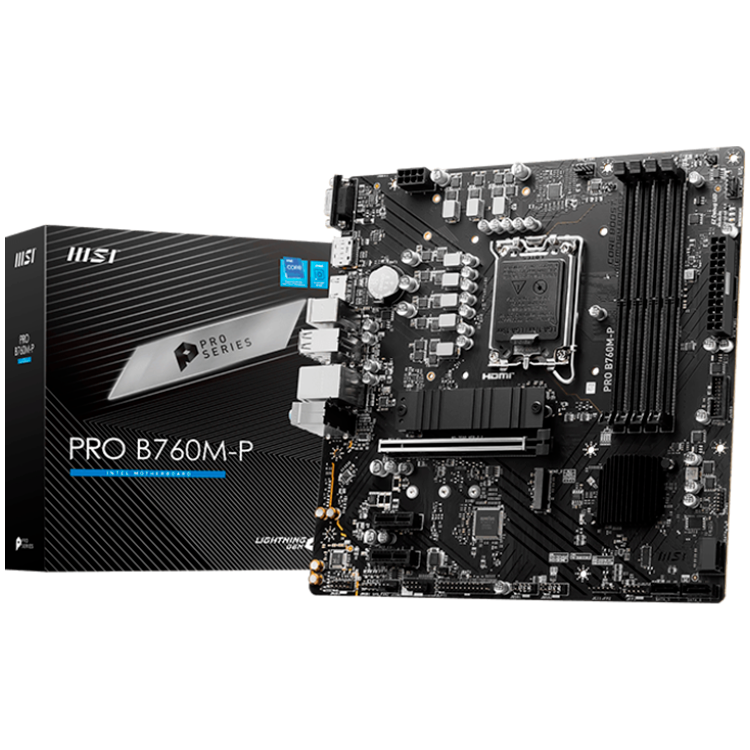

Дънна платка MSI PRO B760M-P, LGA1700, 4x DDR5, 2x M.2 slots, 1x PCIe x16 slots, 1x HDMI, 1x DP, 1x VGA, mATX

SKU: PRO B760M-P

ID: #35136

Цена: 250,00 лв.

Цената е с вкл. ДДС

Характеристики

Поддържани процесори: Intel® LGA 1700 socket: Ready for Intel® Core™ 14th & 13th Gen Intel® Core™ processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors

CPU Socket: Intel LGA1700

Чипсет: Intel B760

Максимален капацитет RAM памет: 4x DDR5, Maximum Memory Capacity 192GB

Поддържана памет: DDR5

M.2 слот: 2x M.2 SSD slot (NVMe PCIe Gen4)

Поддръжка на RAID: SATA / NVMe RAID 0, 1, 5, 10

Graphics технология: Няма

Мрежа: 1 x 10/100/1000 Mbps (RJ-45)

Wi-Fi Mодул: Не

HDMI: 1

DisplayPort: 1

VGA: 1

Форм фактор: Micro ATX

Гаранция (месеца): 36

Бърза Поръчка

Съгласявам се с общите условия и обработка на личните ми данни.

Добави за сравнение

Описание

MSI PRO B760M-P, mATX, LGA 1700, Dual Channel DDR5 6800, 1x PCIe x16 slots, 2x M.2 slots, 1x HDMI, 1x DP, 1x VGA, 1x USB 3.2 Gen 2 Type-C, 1x USB 3.2 Gen 1, 4x USB 2.0, 7.1 HD Audio, 1Gbps LAN

Chipset	INTEL B760
CPU	Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700
Memory	4x DDR5, Maximum Memory Capacity 192GB Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6800+ MHz • 1DPC 2R Max speed up to 6400+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel^® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Onboard Graphics	1x HDMI™ Support HDMI™ 1.4, maximum resolution of 4K 30Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	1x PCI-E x16 slot 2x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)
Storage	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G * SATA5 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 1x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen2 Type C (Rear)
LAN	Realtek^® RTL8111H Gigabit LAN
Audio	Realtek^® ALC897 Codec 7.1-Channel High Definition Audio
Internal IO	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Printer Port (JLPT) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports
LED FEATURE	4x EZ Debug LED

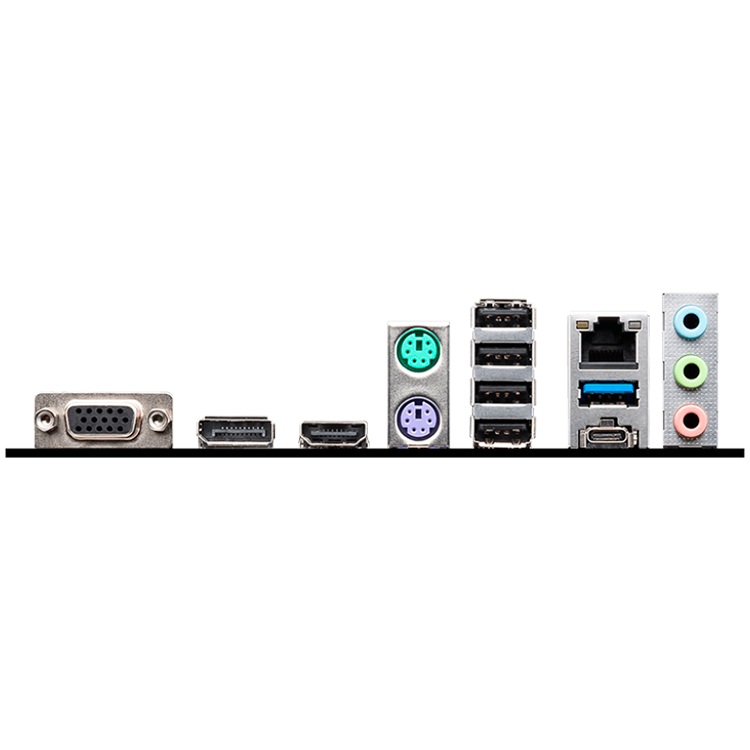

BACK PANEL PORTS	VGA DisplayPort HDMI™ Keyboard / Mouse USB 2.0 LAN port Audio Connectors USB 3.2 Gen 1 5Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-C)
OPERATING SYSTEM	Support for Windows^® 11 64-bit, Windows^® 10 64-bit
PCB Info	mATX 243.84mmx243.84mm
