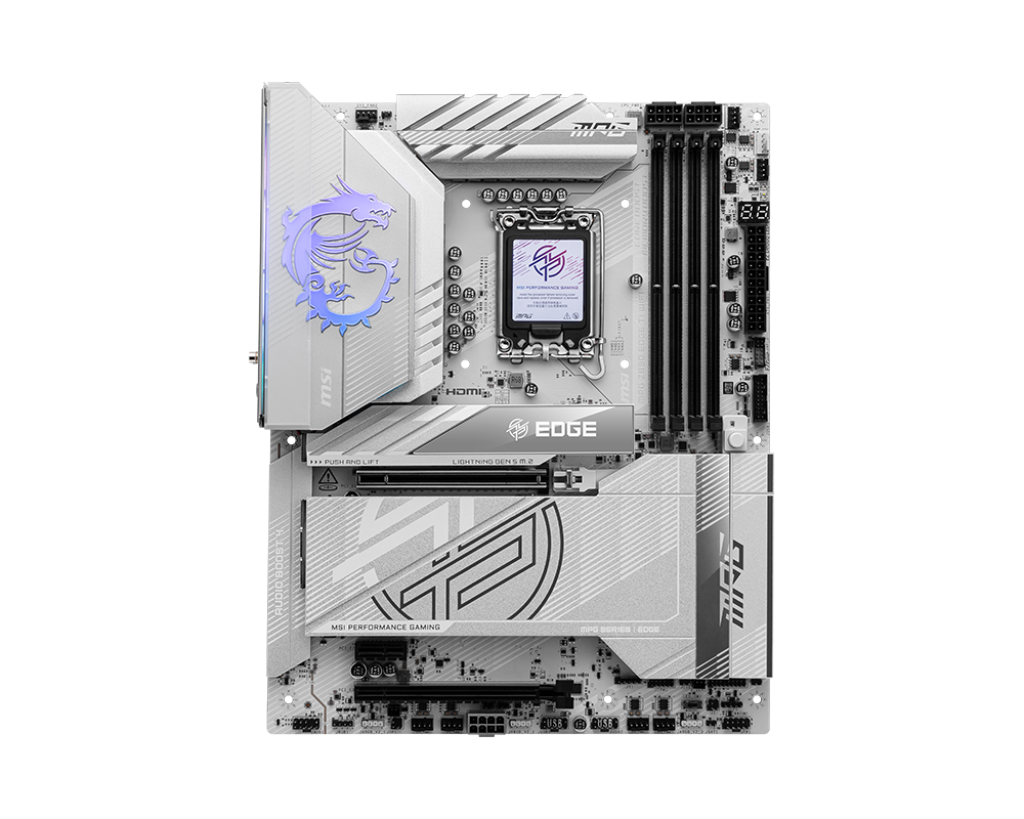

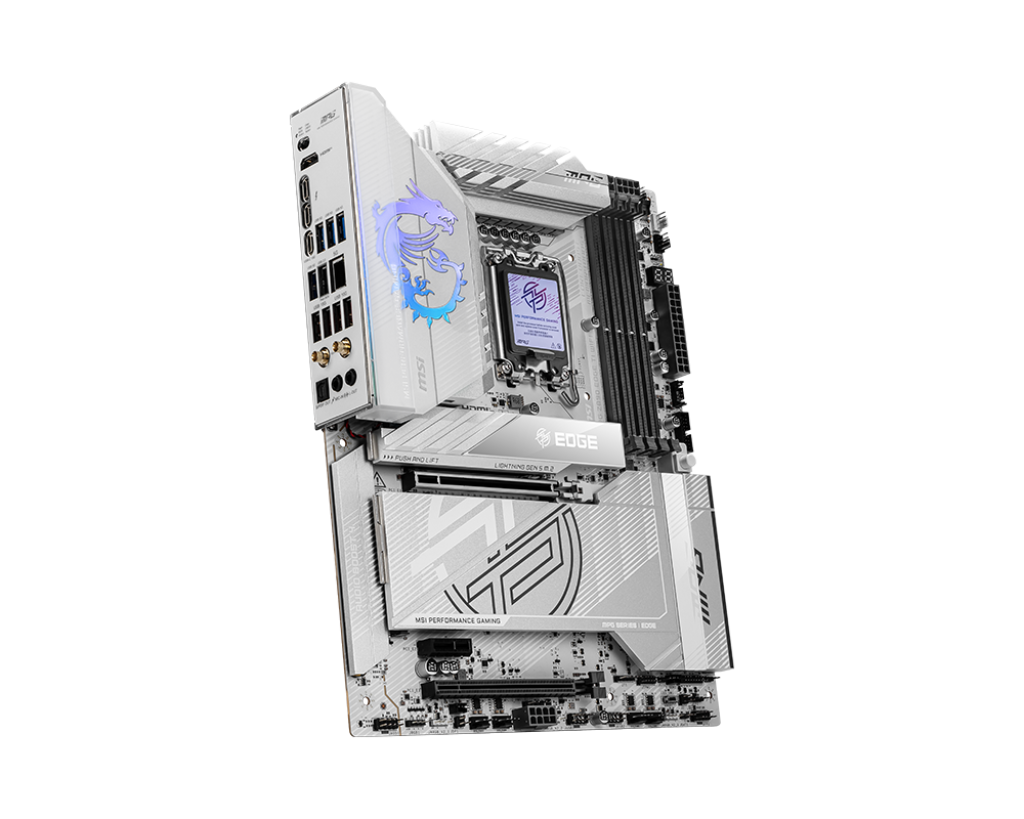

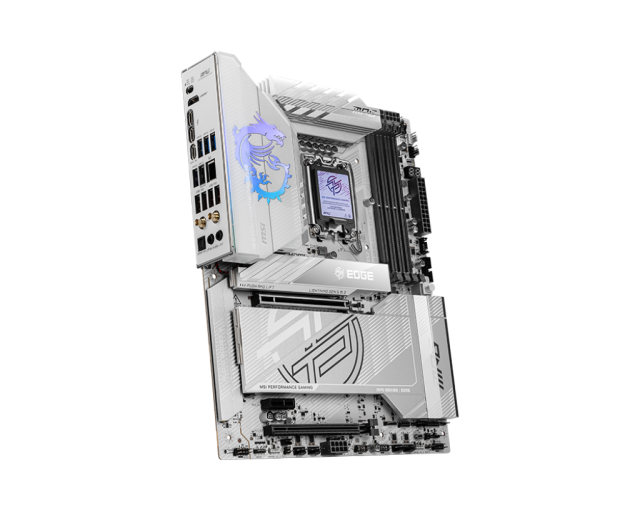

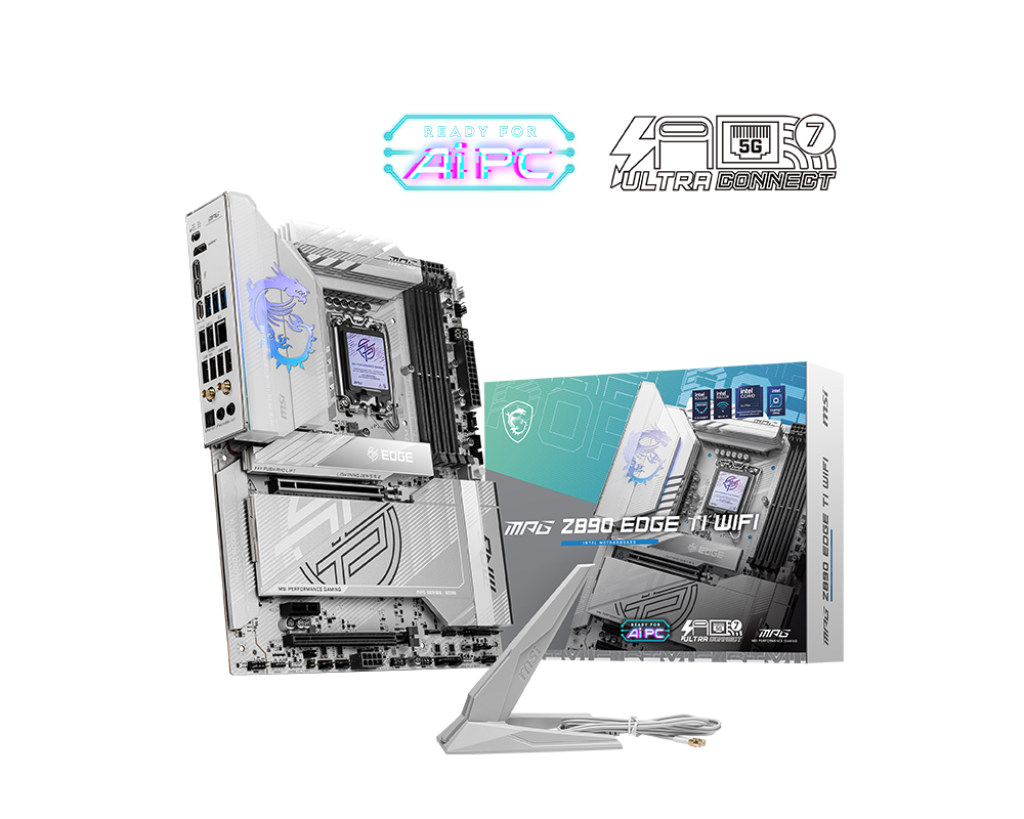

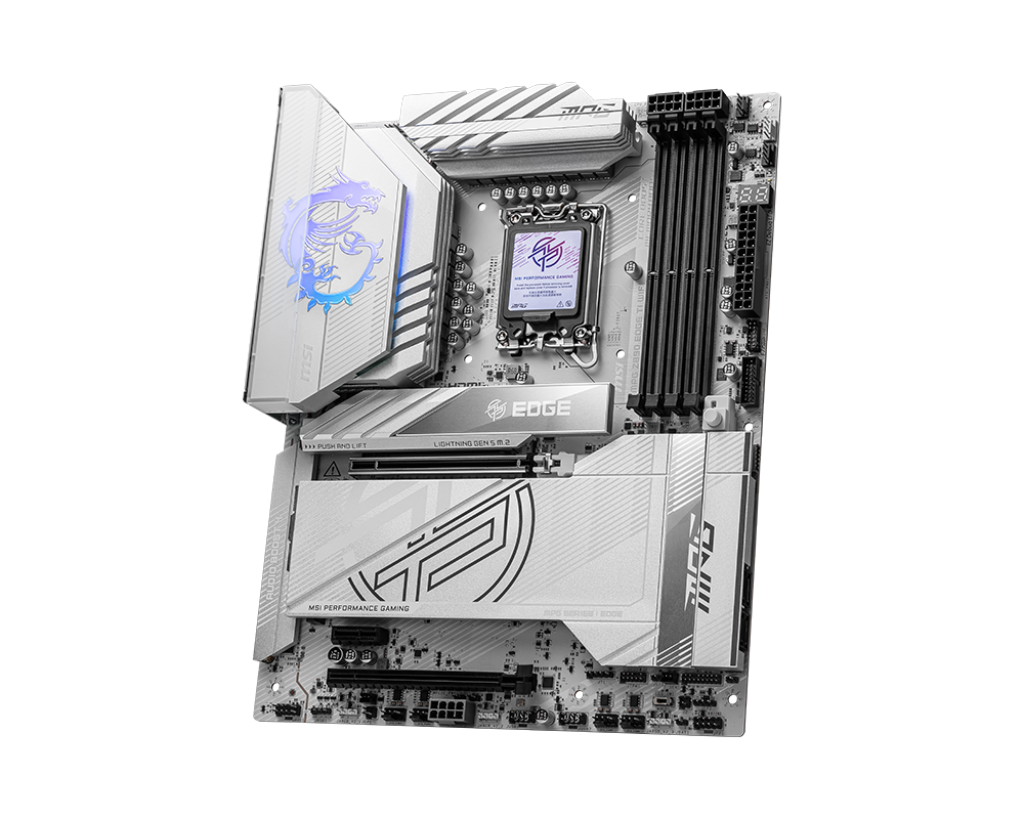

Дънна платка MPG Z890 EDGE TI WIFI, LGA1851, 4x DDR5, PCIe 5.0, 5x M.2 NVMe, 4x SATA 6G, 1x HDMI, 2x Type-C DisplayPort, Wi-Fi 7, ATX
нов продукт

Дънна платка MPG Z890 EDGE TI WIFI, LGA1851, 4x DDR5, PCIe 5.0, 5x M.2 NVMe, 4x SATA 6G, 1x HDMI, 2x Type-C DisplayPort, Wi-Fi 7, ATX

SKU: MPG Z890 EDGE TI WIFI / 911-7E19-002
ID: #40229
Цена: 909,00 лв.
Цената е с вкл. ДДС

Характеристики

Поддържани процесори: Intel Core Ultra Processors (Series 2)
CPU Socket: Intel LGA1851
Чипсет: Intel Z890
Максимален капацитет RAM памет: 256 GB
Поддръжка на Dualchannel: Да
Памет, слотове: 4
Поддържана памет: DDR5
Честота памет: 6400 (OC) MT/s
M.2 слот: 5 x M.2 slots
Поддръжка на RAID: SATA / NVMe RAID 0, 1, 5, 10
Graphics технология: Няма
Вграден Bluetooth: Bluetooth V5.4
Мрежа: 1 x 10/100/1000 Mbps (RJ-45)
Wi-Fi Mодул: Да
Безжична мрежа: 802.11be (Wi-Fi 7)
HDMI: 1
Форм фактор: ATX
Гаранция (месеца): 36

Бърза Поръчка

Описание

Chipset INTEL Z890
CPU Supports Intel® Core™ Ultra Processors (Series 2)
LGA 1851
Memory 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Max. overclocking frequency:
• 1DPC 1R Max speed up to 9200+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
• 2DPC 1R Max speed up to 4800+ MT/s
• 2DPC 2R Max speed up to 4800+ MT/s

Supports Intel POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM

• The DIMM slots on this motherboard have single-sided latches.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics 1x HDMI™
Supports HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz*
2x Type-C DisplayPort
ThundeboltTM 4 ports, , supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot 2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

• PCI_E1 support manual BIOS adjustment to X8+X8 / X8+X4+X4
Audio Realtek® ALC1220P Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
Storage 5x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260 devices
4x SATA 6G

*Please refer to the manual for M.2 SSD heatsink restrictions.
RAID •Supports RAID 0, RAID 1, RAID 5 and Raid 10 for SATA storage devices
•Supports RAID 0, RAID 1, RAID 5 and Raid 10 for M.2 NVMe storage devices
Onboard Thunderbolt 2x Thunderbolt4 ports (Rear)
Supports up to 40Gbps transfer rate with Thunderbolt devices
Supports up to 20Gbps transfer rate with USB4 devices
Supports up to 10Gbps transfer rate with USB 3.2 devices
Supports up to 5V/3A,15W power charging
Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
Supports up to 8K display
USB 1x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
4x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 20Gbps Type C (Front)
*USB 20Gbps Type-C (Front) support USB PD 27W fast charging for JUSBC1
LAN 1x Intel® Killer™ E5000B 5G LAN
Internal IO 1x Thunderbolt5 card connector(JTBT5, support RTD3)
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
6x System Fan
1x EZ Conn-header (JAF_2)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Thermal Sensor connectors(T_SEN)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports
WIRELESS LAN & BLUETOOTH Intel® Killer™ BE1750x Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth® 5.4**, MLO, 4KQAM

* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
LED FEATURE 4x EZ Debug LED
1x EZ Digit Debug LED

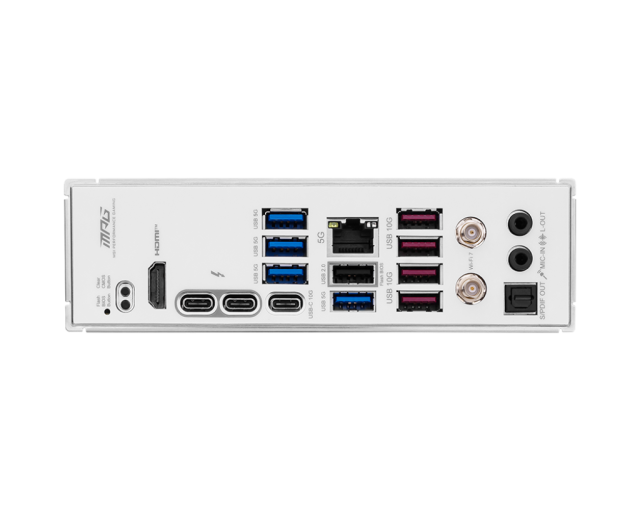

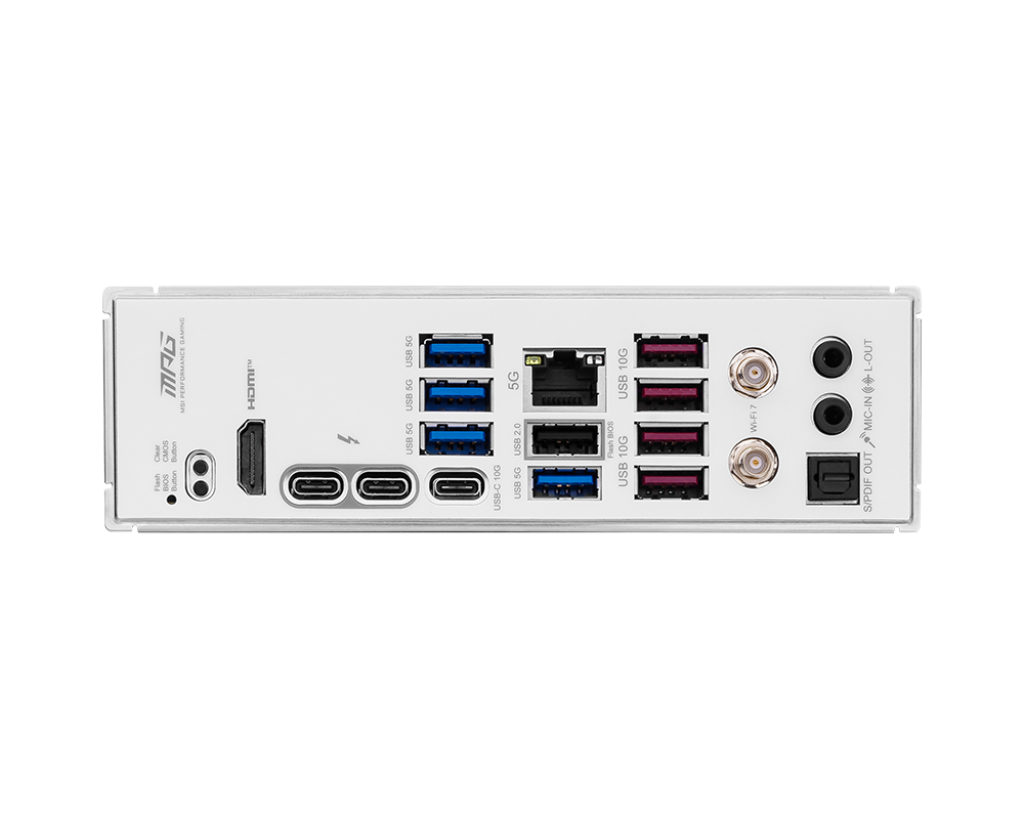

BACK PANEL PORTS
  1. USB 5Gbps Type-A
  2. 5G LAN
  3. USB 10Gbps Type-A
  4. Wi-Fi / Bluetooth
  5. Audio Connectors
  6. Clear CMOS Button
  7. Flash BIOS Button
  8. HDMI™
  9. Thunderbolt 4
  10. USB 10Gbps Type-C
  11. USB 2.0
  12. Optical S/PDIF Out
OPERATING SYSTEM Support for Windows® 11 64-bit

PCB Info ATX
243.84mmx304.8mm
