Дънна платка Gigabyte H610M S2H V2, H610, LGA1700, 2xDDR4, PCI-E 4.0 (D-Sub/DVI-D/HDMI/DP), 1x M.2, 4x SATA 6Gb/s, 2x USB 3.2 Gen1, MicroATX
изчерпан
Дънна платка Gigabyte H610M S2H V2, H610, LGA1700, 2xDDR4, PCI-E 4.0 (D-Sub/DVI-D/HDMI/DP), 1x M.2, 4x SATA 6Gb/s, 2x USB 3.2 Gen1, MicroATX
Дънна платка Gigabyte H610M S2H V2, H610, LGA1700, 2xDDR4, PCI-E 4.0 (D-Sub/DVI-D/HDMI/DP), 1x M.2, 4x SATA 6Gb/s, 2x USB 3.2 Gen1, MicroATX
Дънна платка Gigabyte H610M S2H V2, H610, LGA1700, 2xDDR4, PCI-E 4.0 (D-Sub/DVI-D/HDMI/DP), 1x M.2, 4x SATA 6Gb/s, 2x USB 3.2 Gen1, MicroATX
Дънна платка Gigabyte H610M S2H V2, H610, LGA1700, 2xDDR4, PCI-E 4.0 (D-Sub/DVI-D/HDMI/DP), 1x M.2, 4x SATA 6Gb/s, 2x USB 3.2 Gen1, MicroATX
Дънна платка Gigabyte H610M S2H V2, H610, LGA1700, 2xDDR4, PCI-E 4.0 (D-Sub/DVI-D/HDMI/DP), 1x M.2, 4x SATA 6Gb/s, 2x USB 3.2 Gen1, MicroATX

Дънна платка Gigabyte H610M S2H V2, H610, LGA1700, 2xDDR4, PCI-E 4.0 (D-Sub/DVI-D/HDMI/DP), 1x M.2, 4x SATA 6Gb/s, 2x USB 3.2 Gen1, MicroATX

SKU: GA-MB-H610M-S2H-V2
ID: #29422

Характеристики

Поддържани процесори: Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
CPU Socket: Intel LGA1700
Чипсет: Intel H610
Максимален капацитет RAM памет: 64 GB
Поддръжка на Dualchannel: Да
Памет, слотове: 2
Поддържана памет: DDR4
Честота памет: DDR4 3200 / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC
Graphics технология: Няма
Wi-Fi Mодул: Не
HDMI: 1
DisplayPort: 1
VGA: 1
Форм фактор: Micro ATX
Гаранция (месеца): 36

Направи запитване

Описание

Продукт

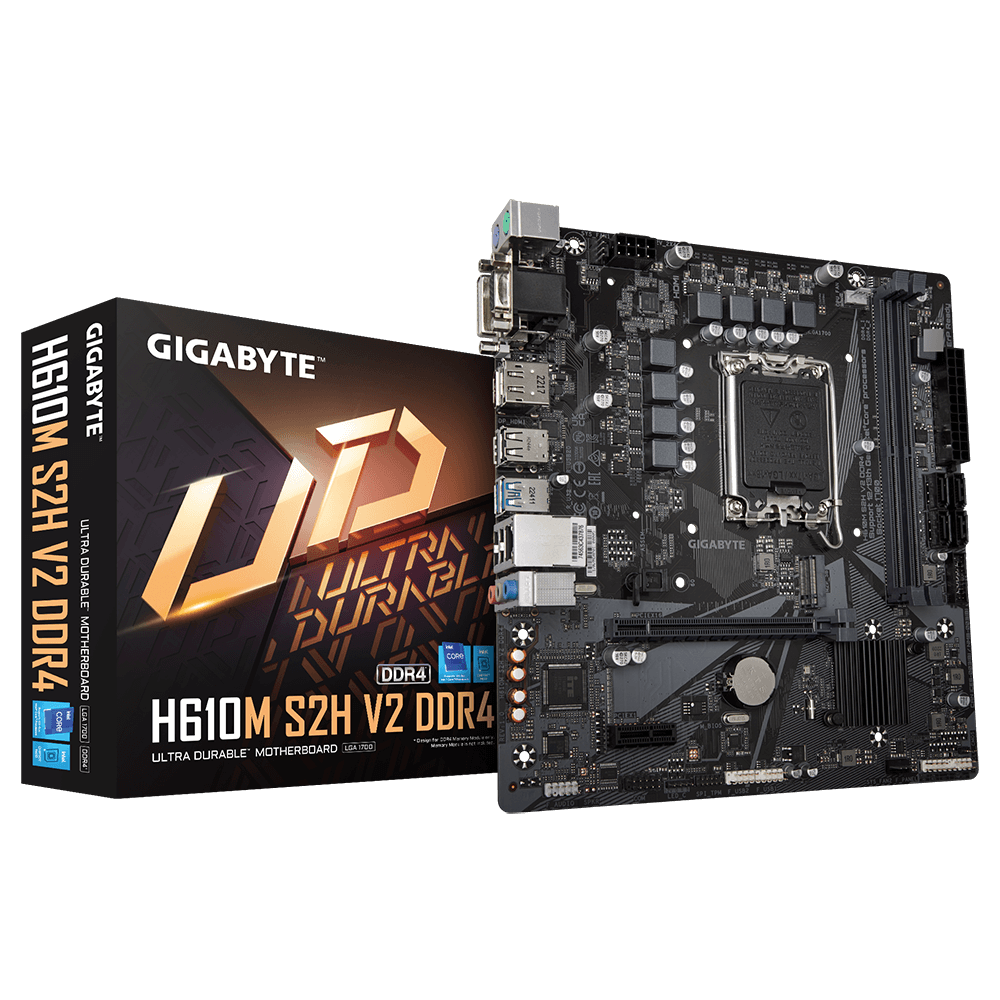

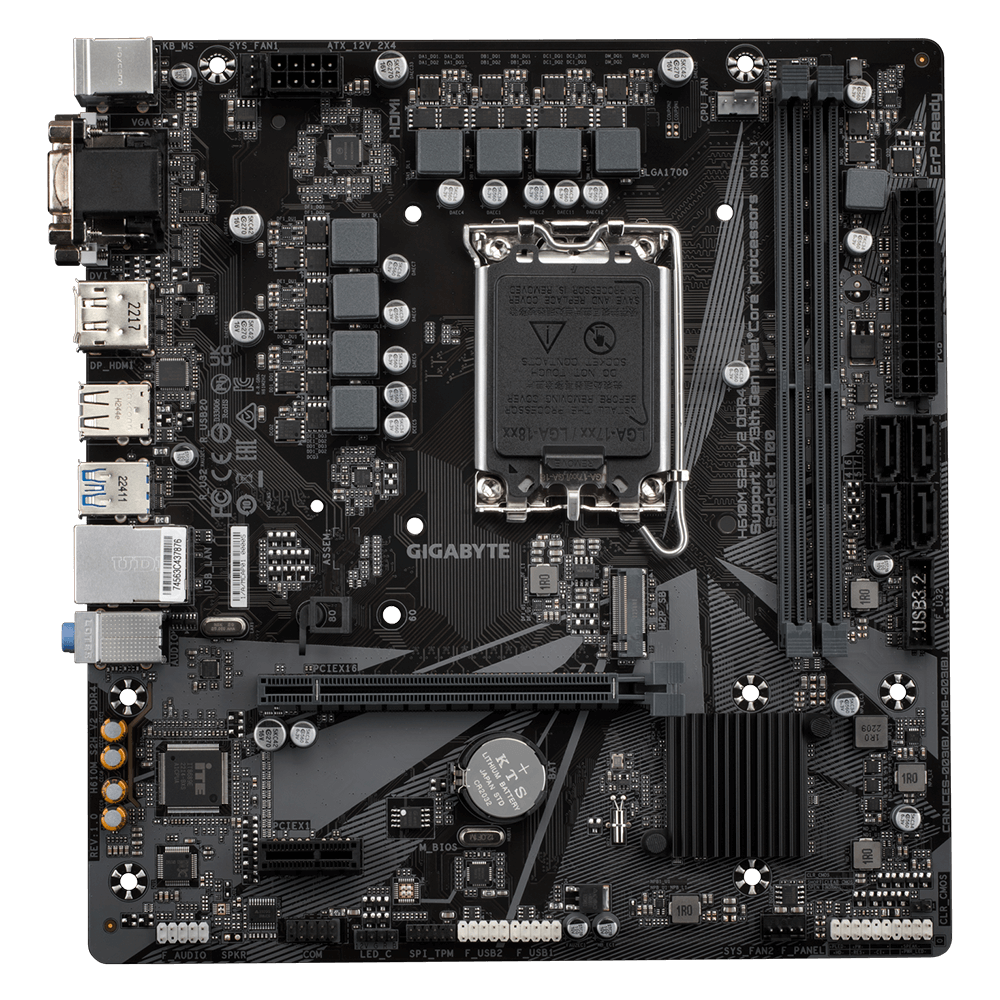

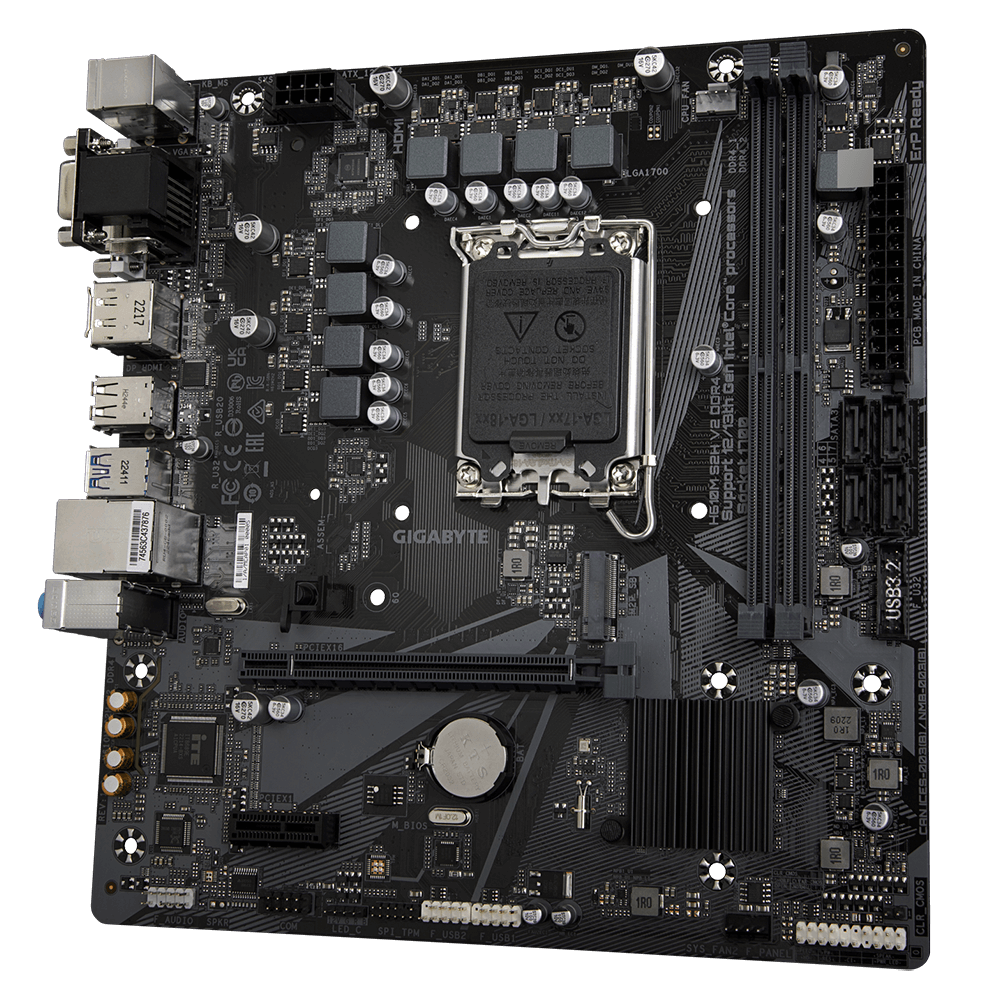

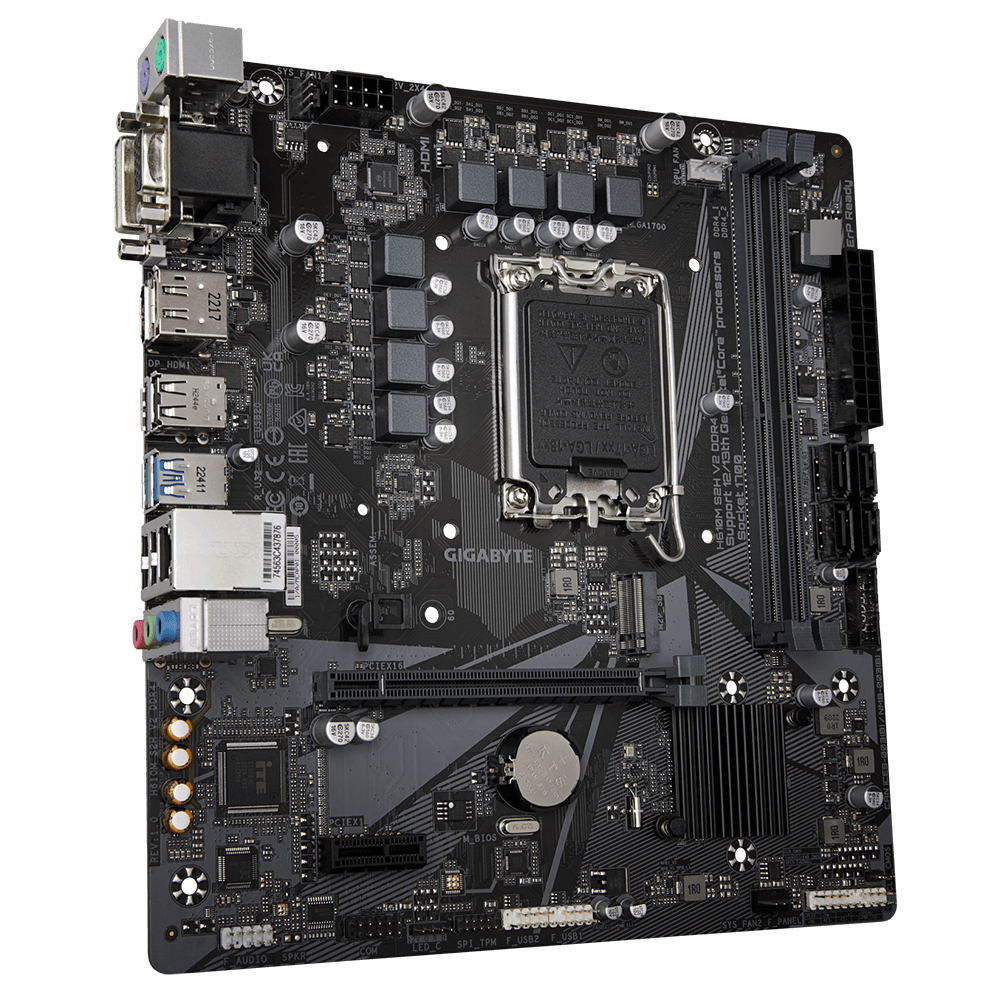

Дънна платка GIGABYTE H610M-S2H V2, LGA1700, 2xDDR4, Micro ATX
CPU
Support for:
13th Generation Intel Core Processors
12th Generation Intel Core, Pentium Gold and Celeron Processors
L3 cache varies with CPU

Socket
LGA1700

Chipset
Intel H610 Express Chipset

Memory
Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
upport for Extreme Memory Profile (XMP) memory modules

Onboard Graphics
Integrated Graphics Processor-Intel HD Graphics support
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.

1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.0 version and HDCP 2.3.

1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
(Graphics specifications may vary depending on CPU support.)

Audio
Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

LAN
Realtek GbE LAN chip (1 Gbps/100 Mbps)

Expansion Slots
CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

Chipset:
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Storage Interface
Chipset:
1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)
4 x SATA 6Gb/s connectors

USB
Chipset:
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
4 x USB 2.0/1.1 ports on the back panel

Chipset+USB 2.0 Hub:
4 x USB 2.0/1.1 ports available through the internal USB headers

Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Clear CMOS jumper

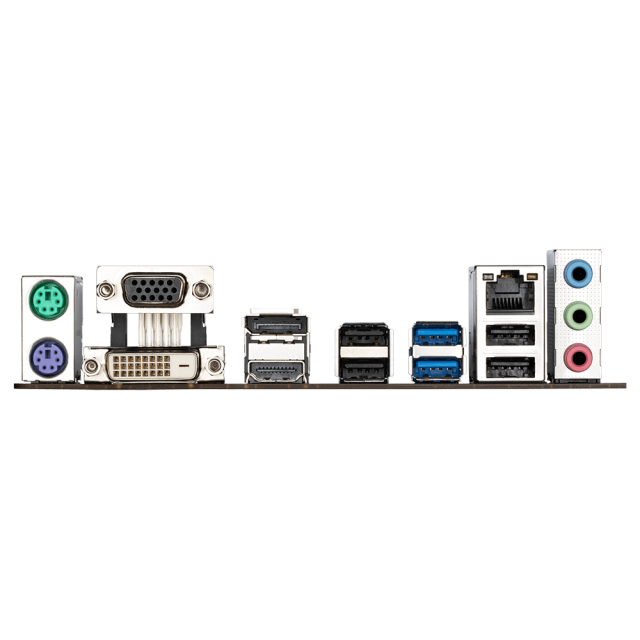

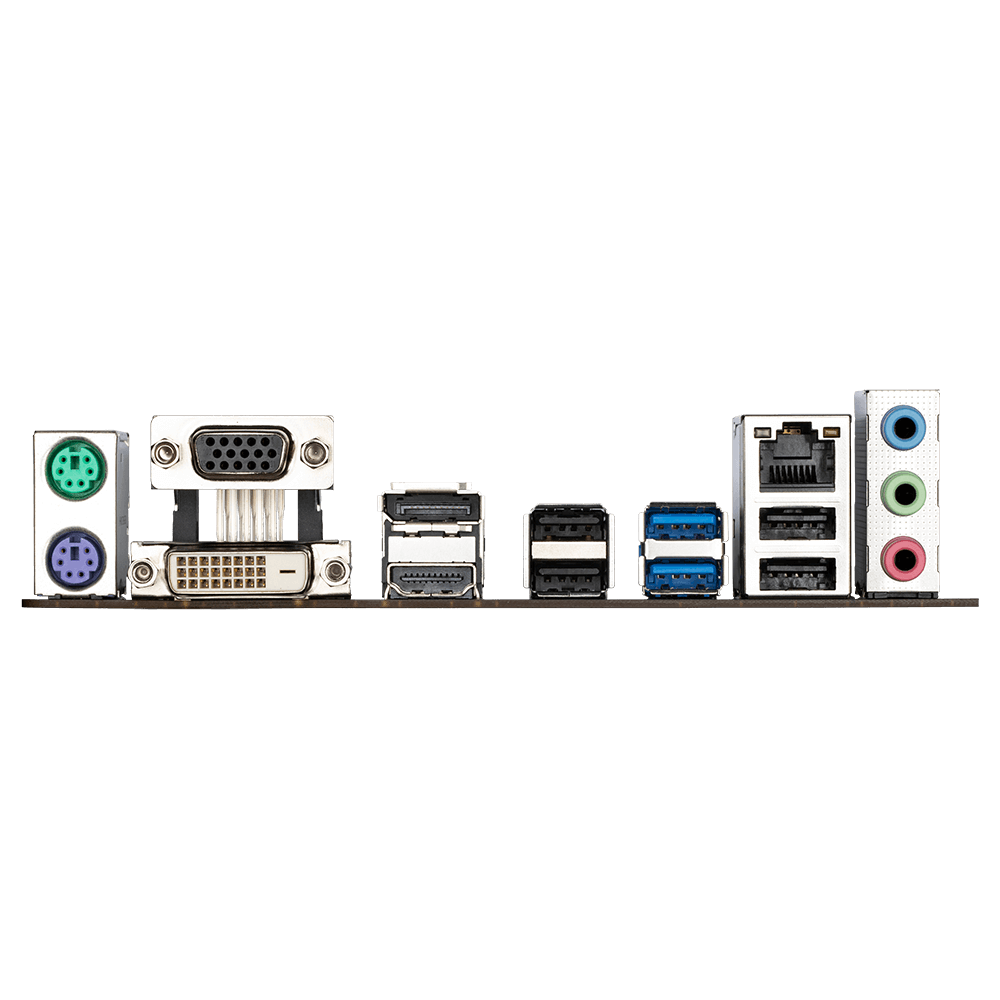

Back Panel Connectors
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x D-Sub port
1 x DVI-D port
1 x DisplayPort
1 x HDMI port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks

I/O Controller
iTE I/O Controller Chip

BIOS
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor
Micro ATX Form Factor;
23.0cm x 21.5cm
