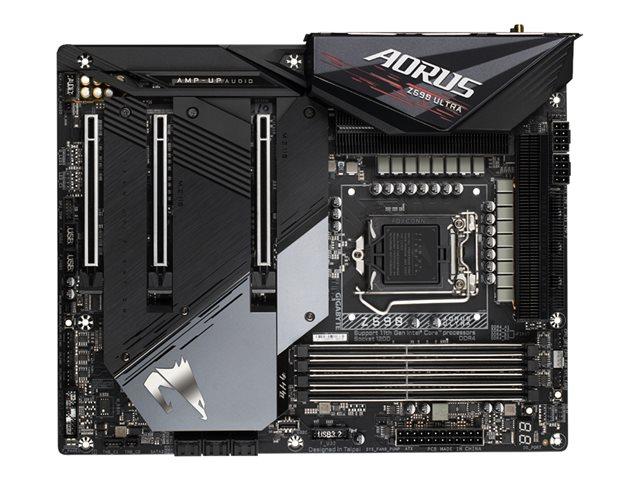

Дънна платка GIGABYTE Z590 AORUS ULTRA LGA1200 DDR4 6xSATA 1xM.2 WiFi, Bluetooth, ATX
изчерпан
Дънна платка GIGABYTE Z590 AORUS ULTRA LGA1200 DDR4 6xSATA 1xM.2 WiFi, Bluetooth, ATX

Дънна платка GIGABYTE Z590 AORUS ULTRA LGA1200 DDR4 6xSATA 1xM.2 WiFi, Bluetooth, ATX

SKU: 4101419
ID: #19592

Характеристики

Поддържани процесори: Processors 11th Generation Intel® Core™ i9/i7/i5
CPU Socket: Intel LGA1200
Чипсет: Intel Z590
Поддръжка на Dualchannel: Да
Поддържана памет: DDR4
Честота памет: DDR4 5400 (O.C)/ DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
M.2 слот: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)* * Supported by 11th Generation processors only. Chipset: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe 3.0 x4/x2 SSD support) (M2P_SB) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2M_SB) 6 x SATA 6Gb/s connectors
Поддръжка на RAID: SATA / NVMe RAID 0, 1, 5, 10
Graphics технология: Няма
Вграден Bluetooth: BLUETOOTH 5.1
Мрежа: Intel® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
Wi-Fi Mодул: Да
Безжична мрежа: Intel® Wi-Fi 6 AX200 WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band
Форм фактор: ATX
Гаранция (месеца): 36

Направи запитване

Описание

GIGABYTE Z590 AORUS ULTRA LGA1200 DDR4 6xSATA 1xM.2 WiFi ATX MB

Manufacturer GIGABYTE
Manufacturer Part No Z590 AORUS ULTRA

Marketing Description
The Z590 AORUS ULTRA comes with upgraded power solution, all PCIe 4.0 design and outstanding connectivity to elevate your gaming experience to the next level.
Product Features
  • Extreme power design
    To unleash the full potential of the latest Intel 11th Gen CPU, the motherboard requires the best CPU power design. With the best quality components and GIGABYTE R&D design capability, Z590 AORUS ULTRA is a true beast among motherboards.
  • Unparalleled performance
    GIGABYTE understands that customer won't stop chasing better computer performance, and strive to deliver that in products. For the Z590 series, protective and optimized memory trace enhance the performance; faster read and write speed save time and improve efficiency; and generous M.2 Storage with thermal guards ensure unthrottled read and write performance. Future upgrades to the Z590 are made possible by the use of PCIe 4.0-ready components.
  • Advanced thermal solution
    Unthrottled performance is guaranteed by the enhanced thermal solution that incorporates Fins-Array II, Heatpipe II and Thermal Guards II. The comprehensive solution delivers excellent heat dissipation. The Z590 AORUS ULTRA stays cool on VRMs and M.2 SSD even on full loading, making it most suitable for enthusiasts, overclockers and professional gamers.
  • Next generation connectivity
    A high-end product needs to be future-proof so your system stays up-to-date with the latest technology. Z590 AORUS ULTRA provides all next generation network, storage, and WIFI connectivity to keep you up to speed.
  • HI-FI audio system
    For enthusiasts, sound quality is just as essential to the gaming experience. Z590 motherboards are equipped with high quality audio components such as Hi-Fi grade WIMA FKP2 capacitors and Nichicon Fine Gold capacitors to provide a superb audio experience. The exclusive AORUS AMP-UP Audio technology makes for the ideal onboard sound solution for the most demanding audiophiles.
  • Definitive aesthetics
    Z590 AORUS ULTRA features RGB FUSION 2.0 and offers users the option to control onboard, external light strips, and/or AORUS devices with RGB/ Addressable RGB LEDs to make their PC more unique and stylish.
  • Ultra-durable
    Gigabyte is reputable for its product durability and high-quality manufacturing process.
  • Gigabyte BIOS & app center
    Good software goes hand in hand with perfect hardware. Gigabyte motherboard bundled several useful and intuitive software to help users to control every aspect of motherboard.
General
Product Type Motherboard - ATX
Chipset Type Intel Z590
Processor Socket LGA1200 Socket
Max Processors Qty 1
Compatible Processors Pentium, Celeron, Core i5, Core i3, Core i7, Core i9 (supports 11th and 10th Generation Intel Core i5 / i7 / i9, 10th Generation Intel Core i3 / Pentium / Celeron)
Supported RAM
Max Size 128 GB
Technology DDR4
Bus Clock 2400 MHz, 2133 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3200 MHz, 5000 MHz (O.C.)
Supported RAM Integrity Check Non-ECC, ECC (operate in non-ECC mode)
Registered or Buffered Unbuffered
Features Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), supported ECC modules operate in non-ECC mode
Audio
Type HD Audio (8-channel)
Audio Codec Realtek ALC4080
Compliant Standards High Definition Audio, DTS:X Ultra
LAN
Network Interfaces 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.1
Expansion / Connectivity
Expansion Slots 1 x CPU
4 x DIMM 288-pin
1 x PCIe 4.0 x16 (x16 mode (x8 mode if PCI Express 4.0 x8 slot is occupied))
1 x PCIe 4.0 x16 (x8 mode)
1 x PCIe 3.0 x1
Storage Interfaces SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 3.0 -connectors: 1 x M.2
PCIe 4.0 -connectors: 1 x M.2
SATA-600 / PCIe 3.0 -connectors: 1 x M.2
Interfaces 1 x LAN (2.5Gigabit Ethernet)
1 x DisplayPort
1 x audio line-in - mini-jack
1 x audio line-out - mini-jack
1 x microphone - mini-jack
4 x USB 3.2 Gen 1
4 x USB 3.2 Gen 2
1 x USB-C Gen2x2
4 x USB 2.0
1 x TOSLINK
1 x audio line-out (center/subwoofer) - mini-jack
1 x audio line-out (rear) - mini-jack
Internal Interfaces 4 x USB 2.0 - header
2 x USB 3.2 Gen 1 - header
1 x USB-C Gen2 - header
1 x audio - header
2 x Thunderbolt - header
Power Connectors 24-pin main power connector, 2 x 8-pin ATX12V connectors
Features
BIOS Type AMI
BIOS Features WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support
Hardware Monitoring CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection, CPU core voltage, water cooling flow rate, fan fail warning
Hardware Features Q-Flash, HDCP compliant, On/Off Charge, AMD CrossFireX technology support, AMD Quad CrossFireX technology support, GIGABYTE AMP-UP Audio, 2x Copper PCB, Clear CMOS Button, WIMA film capacitors, Q-Flash Plus, Game Boost, Ultra Durable Memory Armor, Intel Optane Memory Ready, Ultra Durable PCIe Armor, Solid Pin Power Connectors, RGB FUSION 2.0, 16+1 Phase Power Design, 90A Smart Power Stage, M.2 Thermal Guard II, Fins-Array II Heatsink and Direct Touch Heatpipe II, GIGABYTE Smart Fan 6
Miscellaneous
Software Included Norton Internet Security, @BIOS, EasyTune, Xpress Install, GIGABYTE App Center, cFosSpeed, GIGABYTE Fast Boot, GIGABYTE Smart Backup
Compliant Standards DisplayPort 1.2, HDCP 2.3
Width 30.5 cm
Depth 24.4 cm
Technical data provided by third party. We assume no liability for errors within these data.
