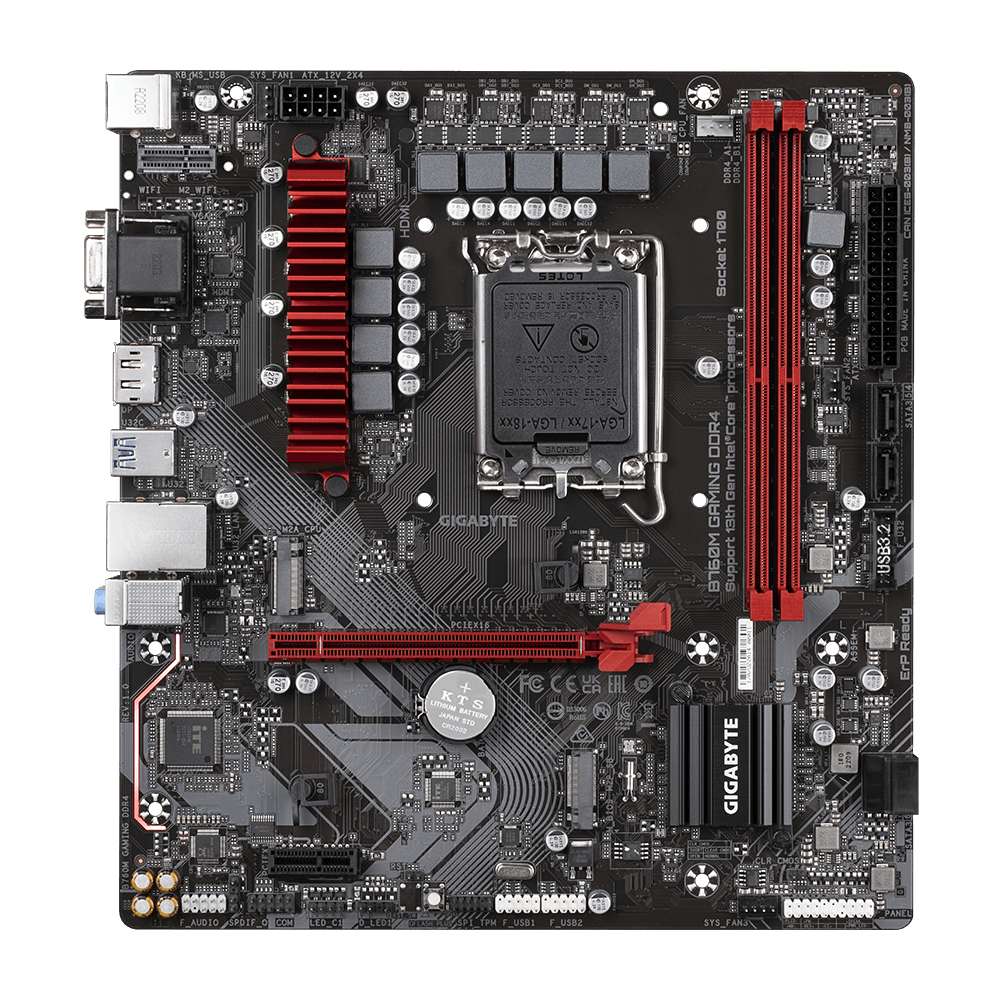

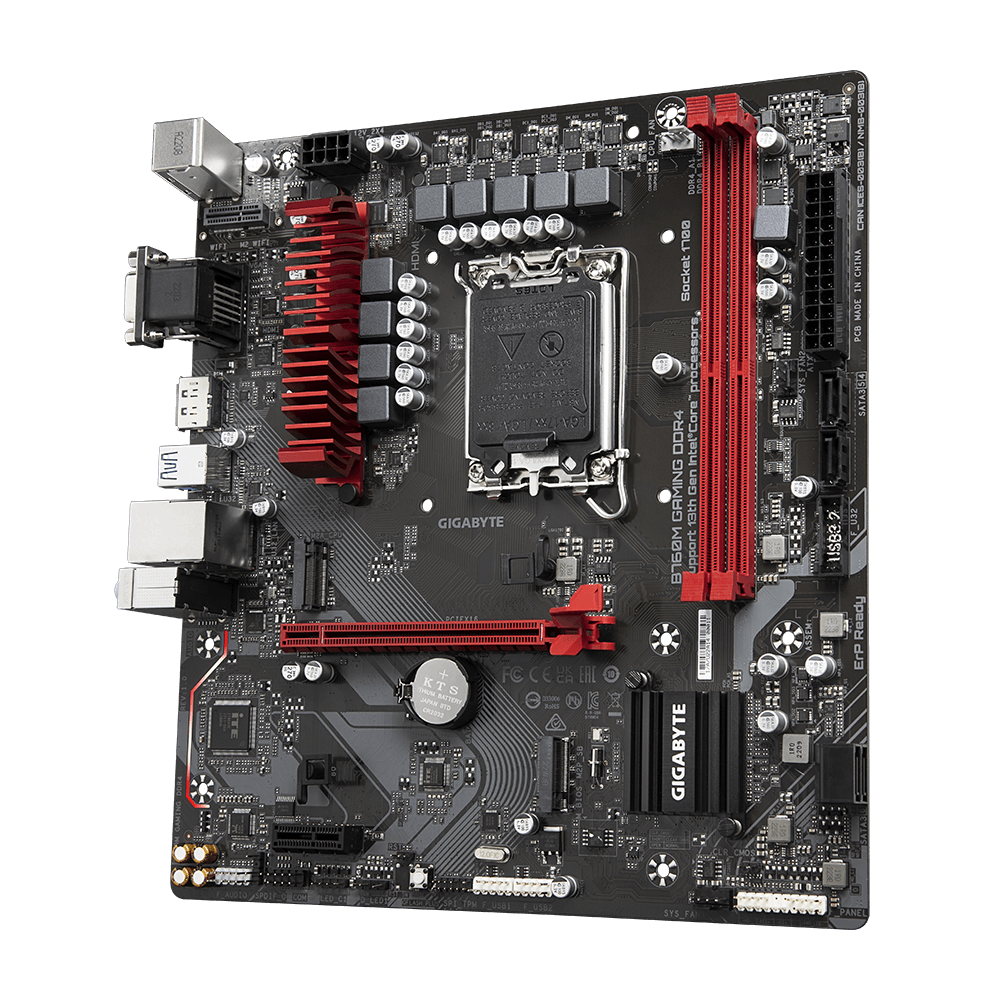

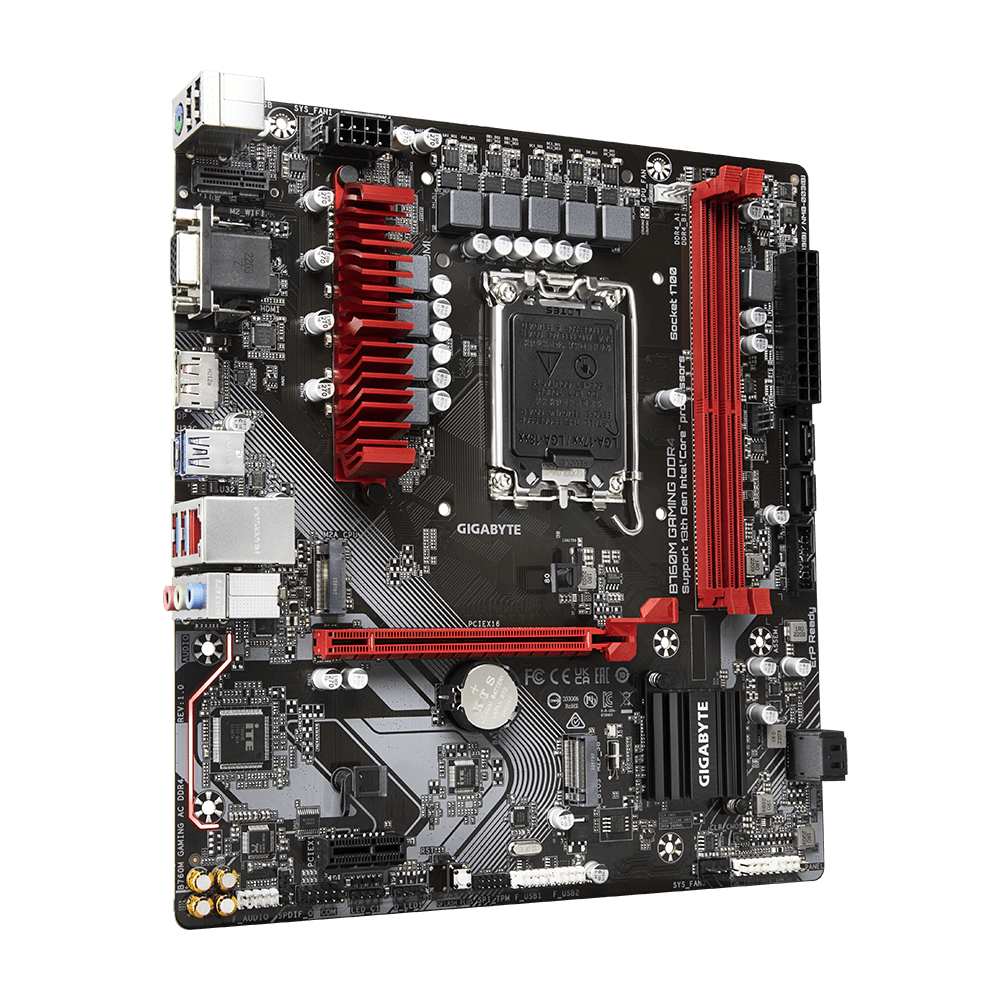

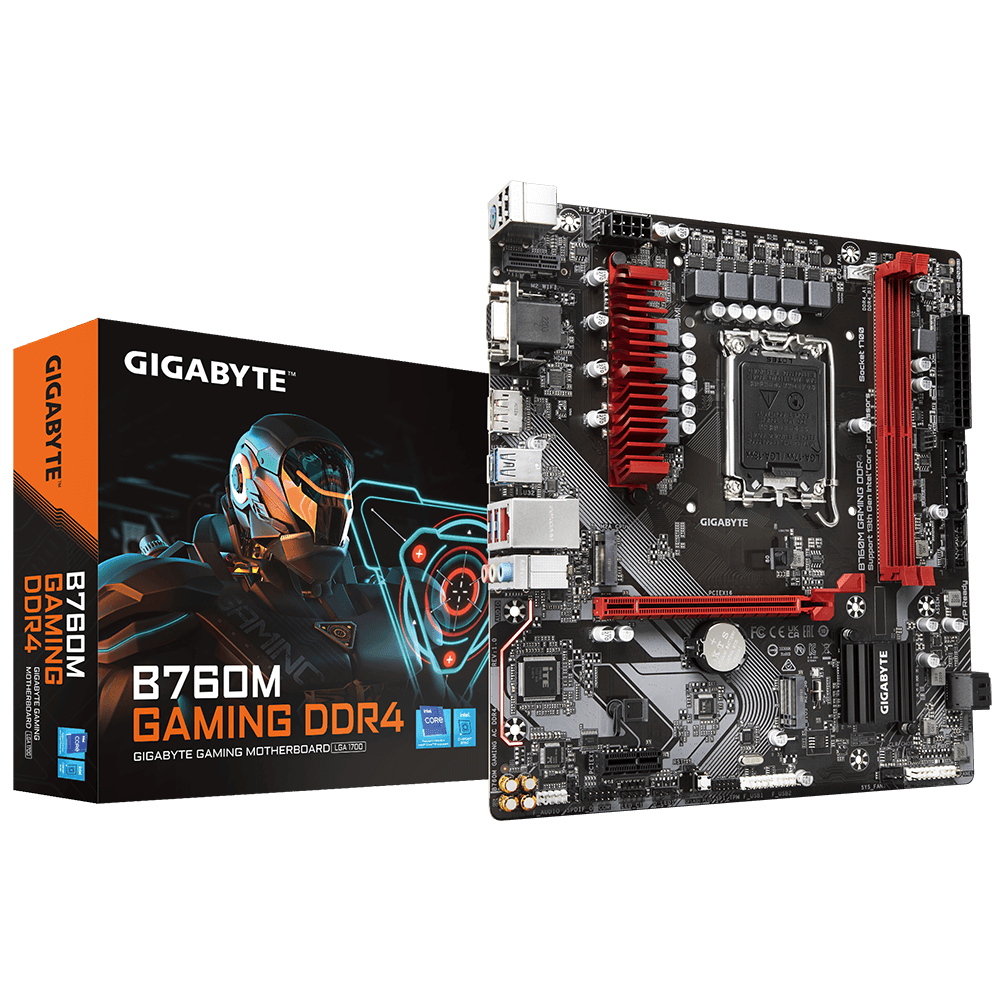

Дънна платка GIGABYTE B760M GAMING, LGA1700, 2x DDR4, PCIe 4.0, 2x M.2 NVMe, 4x SATA 6Gb/s, USB Type-C, VGA, HDMI, DP, ATX

SKU: B760M GAMING DDR4 1.0

ID: #25875

Цена: 206,00 лв.
105,33 €

Цената е с вкл. ДДС

Характеристики

Поддържани процесори: Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*

CPU Socket: Intel LGA1700

Чипсет: Intel B760

Максимален капацитет RAM памет: 64 GB

Памет, слотове: 2

Поддържана памет: DDR4

Честота памет: 5333(OC)/5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133

M.2 слот: 2 x M.2 slots / 4 x SATA 6Gb/s ports

Поддръжка на RAID: SATA / RAID 0, 1, 5, 10

HDMI: 1

DisplayPort: 1

VGA: 1

Други: 128 Mb ROM, UEFI AMI BIOS

Форм фактор: ATX

Гаранция (месеца): 36

Бърза Поръчка

Съгласявам се с общите условия и обработка на личните ми данни.

Добави за сравнение

Описание

CPU
1. LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel^® Core™, Pentium^® Gold and Celeron^® Processors
2. L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
1. Intel^® B760 Express Chipset
Memory
1. Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules
2. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
3. Dual channel memory architecture
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel^® HD Graphics support:
1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  * Support for HDMI 2.1 version and HDCP 2.3.
  ** Support native HDMI 2.1 TMDS compatible ports.
3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
  * Support for DisplayPort 1.2 version and HDCP 2.3
(Graphics specifications may vary depending on CPU support.)
Support for up to 3 displays at the same time
Audio
1. Realtek^® Audio CODEC
2. High Definition Audio
3. 2/4/5.1/7.1-channel
  * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
4. Support for S/PDIF Out
LAN
1. Realtek^® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots
CPU:
1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
  * The PCIEX16 slot can only support a graphics card or an NVMe SSD.
Chipset:
1. 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage Interface
CPU:
1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
2. 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB
Chipset:
1. 1 x USB Type-C^® port on the back panel, with USB 3.2 Gen 1 support
2. 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
3. 2 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hubs:
1. 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 3 x system fan headers
5. 1 x addressable LED strip headers
6. 1 x RGB LED strip headers
7. 2 x M.2 Socket 3 connectors
8. 4 x SATA 6Gb/s connectors
9. 1 x front panel header
10. 1 x front panel audio header
11. 1 x S/PDIF Out header
12. 1 x USB 3.2 Gen 1 header
13. 2 x USB 2.0/1.1 headers
14. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
15. 1 x serial port header
16. 1 x Q-Flash Plus button
17. 1 x reset jumper
18. 1 x Clear CMOS jumper

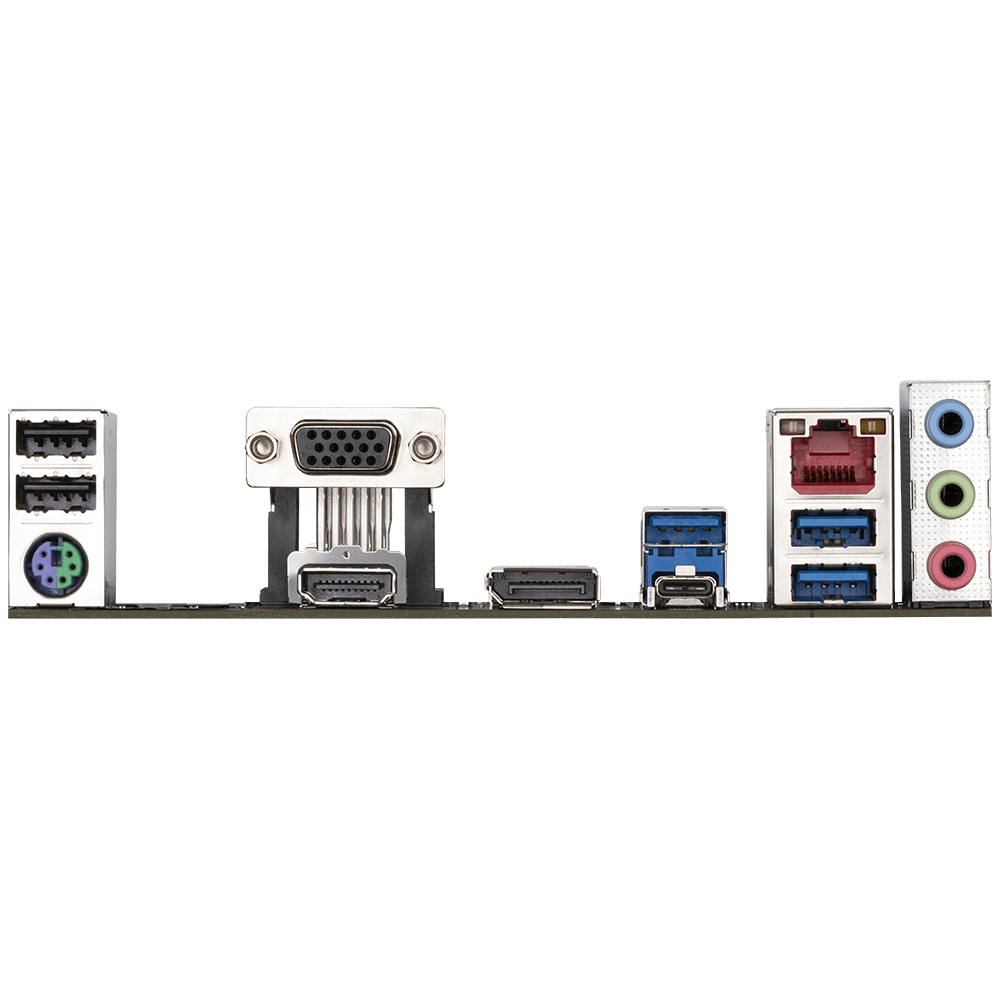

Back Panel Connectors
1. 2 x USB 2.0/1.1 ports
2. 1 x PS/2 keyboard/mouse port
3. 1 x D-Sub port
4. 1 x HDMI port
5. 1 x DisplayPort
6. 3 x USB 3.2 Gen 1 ports
7. 1 x USB Type-C^® port, with USB 3.2 Gen 1 support
8. 1 x RJ-45 port
9. 3 x audio jacks
I/O Controller
1. iTE^® I/O Controller Chip
H/W Monitoring
1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Water cooling flow rate detection
5. Fan fail warning
6. Fan speed control
  * Whether the fan speed control function is supported will depend on the fan you install.
BIOS
1. 1 x 128 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
1. Support for GIGABYTE Control Center (GCC)
  * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
2. Support for Q-Flash
3. Support for Q-Flash Plus
Bundled Software
1. Norton^® Internet Security (OEM version)
2. LAN bandwidth management software
Operating System
1. Support for Windows 11 64-bit
2. Support for Windows 10 64-bit
Form Factor
1. Micro ATX Form Factor; 24.4cm x 22.5cm
