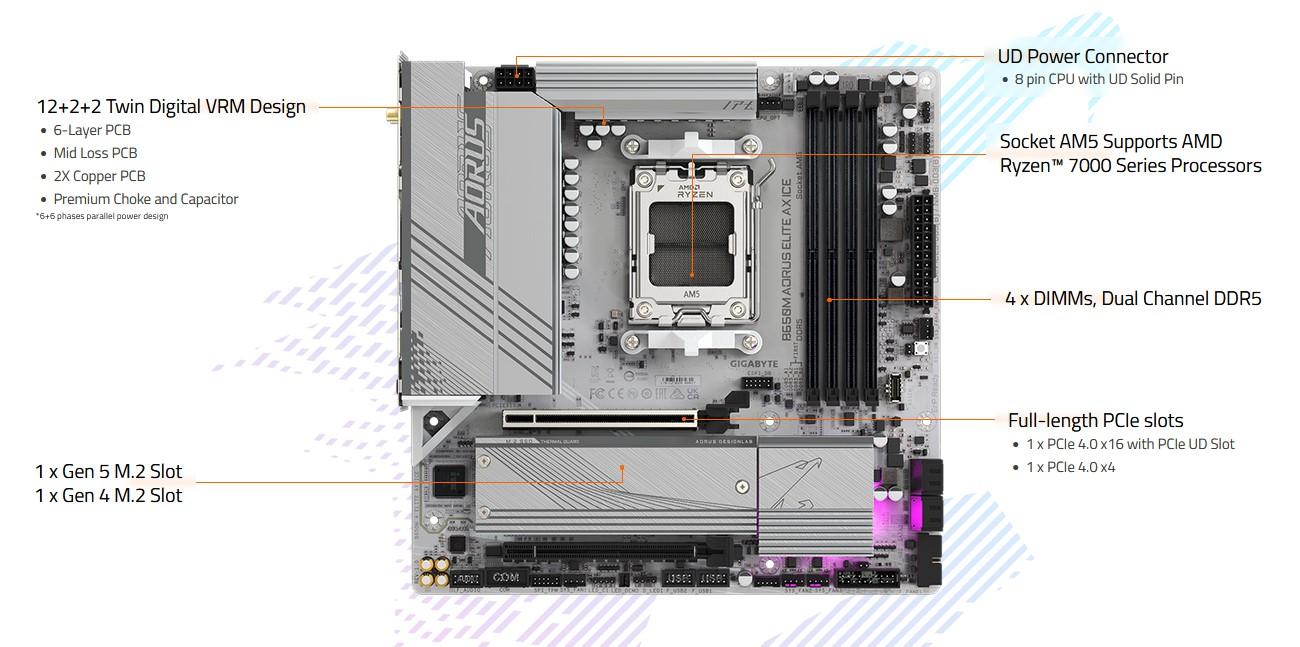

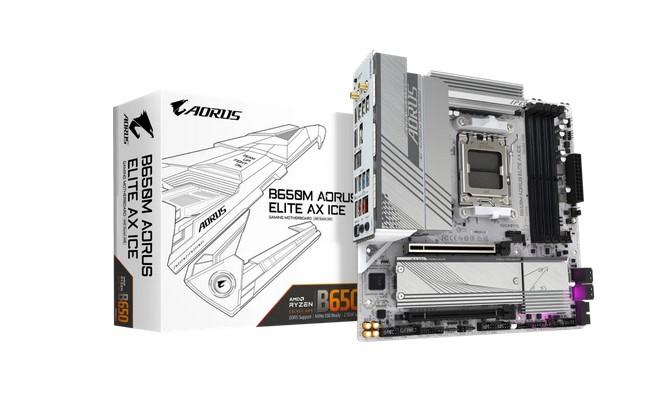

Дънна платка GIGABYTE B650M AORUS ELITE AX ICE, AM5, Wi-Fi 6E, 4x DDR5, 2x M.2, 4x SATA 6Gb/s, HDMI, DP, mATX

Дънна платка GIGABYTE B650M AORUS ELITE AX ICE, AM5, Wi-Fi 6E, 4x DDR5, 2x M.2, 4x SATA 6Gb/s, HDMI, DP, mATX

SKU: GA-MB-B650M-A-ELIT-AX-ICE
ID: #35603
Цена: 506,00 лв.
Цената е с вкл. ДДС

Характеристики

Поддържани процесори: Supports AMD Ryzen™ 8000/ 7000 Series Desktop Processors Socket AM5
CPU Socket: AMD AM5
Чипсет: AMD B650
Максимален капацитет RAM памет: 4x DDR5, Maximum Memory Capacity 192GB
Поддръжка на Dualchannel: Да
Поддържана памет: DDR5
M.2 слот: 3 x M.2 slots and 4 x SATA 6Gb/s ports*
Поддръжка на RAID: SATA / NVMe RAID 0, 1, 10
Вграден Bluetooth: Bluetooth V5.3
Wi-Fi Mодул: Да
Безжична мрежа: 802.11ax Wi-Fi 6E
HDMI: 1
DisplayPort: 1
Форм фактор: Micro ATX
Гаранция (месеца): 36

Бърза Поръчка

Описание

    • CPU
      AMD Socket AM5, support for:
      AMD Ryzen™ 7000 / Ryzen™ 8000 Series Processors

      * Please refer to "CPU Support List" for more information.

    • Chipset
      AMD B650
    • Memory
      Support for DDR5 8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/ 6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules
      4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
      Dual channel memory architecture
      Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
      Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
      (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
    • Onboard Graphics
      Integrated Graphics Processor with AMD Radeon™ Graphics support:
      - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz

      * Support for DisplayPort 1.4 version and HDR.


      - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

      * Support for HDMI 2.1 version and HDCP 2.3.
      ** Support for native HDMI 2.1 TMDS compatible ports.


      (Graphics specifications may vary depending on CPU support.)
    • Audio
      Realtek® Audio CODEC
      High Definition Audio
      2/4/5.1/7.1-channel

      * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.


      Support for S/PDIF Out
    • LAN
      Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
    • Wireless Communication module
      Realtek® Wi-Fi 6E RTL8852CE
      - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
      - BLUETOOTH 5.3
      - Support for 11ax 160MHz wireless standard
      (Actual data rate may vary depending on environment and equipment.)
    • Expansion Slots
      CPU:
      - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)

      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.


      Chipset:
      - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
    • Storage Interface
      CPU:
      - 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 (Note) x4/x2 SSD support) (M2A_CPU)
      - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
      Chipset:
      - 4 x SATA 6Gb/s connectors
      RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
      RAID 0, RAID 1, and RAID 10 support for SATA storage devices
    • USB
      CPU:
      - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
      - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
      CPU + USB 2.0 Hub:
      - 4 x USB 2.0/1.1 ports on the back panel
      Chipset:
      - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
      - 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
      - 4 x USB 2.0/1.1 ports available through the internal USB headers
      Chipset+USB 3.2 Gen 1 Hub:
      - 4 x USB 3.2 Gen 1 ports on the back panel
    • Internal I/O Connectors
      1 x 24-pin ATX main power connector
      1 x 8-pin ATX 12V power connector
      1 x CPU fan header
      1 x CPU fan/water cooling pump header
      3 x system fan headers
      1 x system fan/water cooling pump header
      2 x addressable LED strip headers
      2 x RGB LED strip headers
      1 x CPU cooler LED strip/RGB LED strip header
      2 x M.2 Socket 3 connectors
      4 x SATA 6Gb/s connectors
      1 x front panel header
      1 x front panel audio header
      1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
      1 x USB 3.2 Gen 1 header
      2 x USB 2.0/1.1 headers
      1 x serial port header
      1 x THB_U4 add-in card connector
      1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)
      1 x reset button
      1 x reset jumper
      1 x Clear CMOS jumper

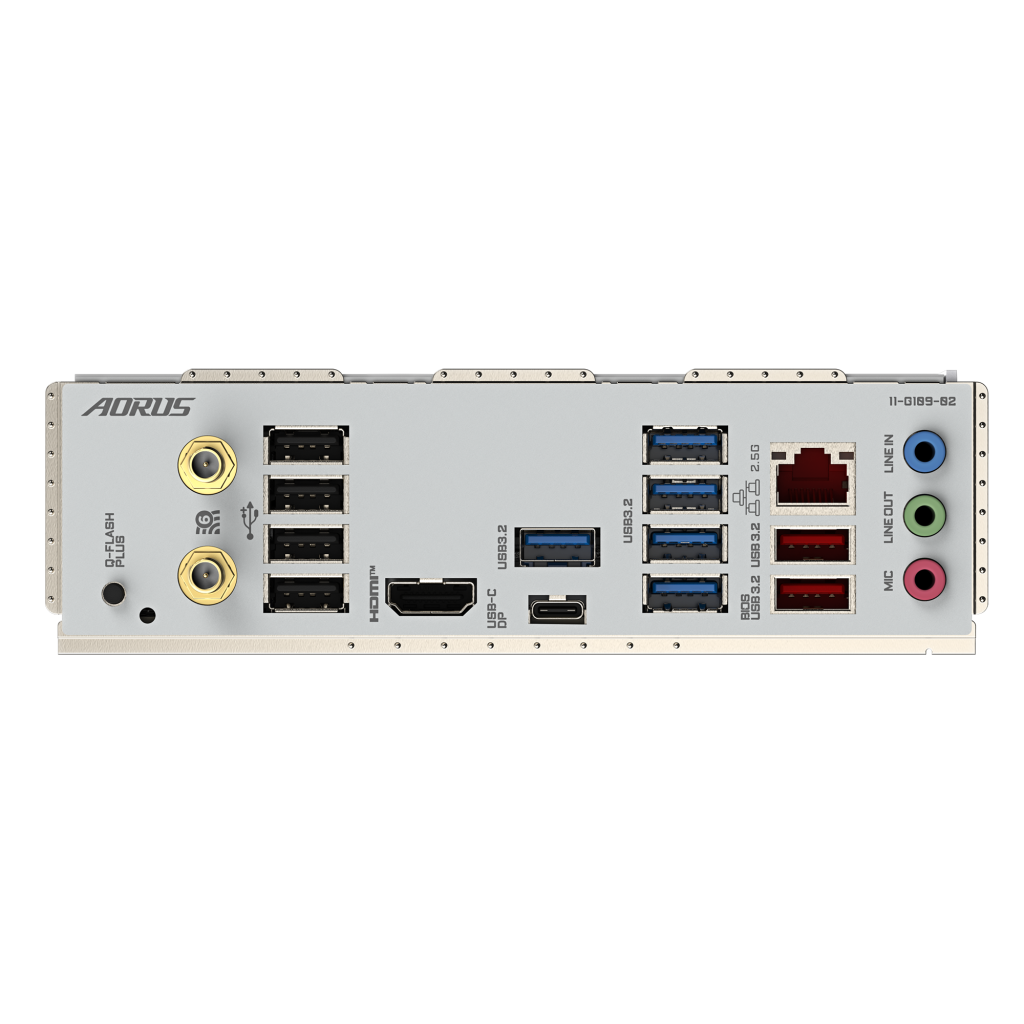

    • Back Panel Connectors
      1 x Q-Flash Plus button
      2 x SMA antenna connectors (2T2R)jk
      1 x DisplayPort
      1 x HDMI port
      1 x USB Type-C® port, with USB 3.2 Gen 2 support
      2 x USB 3.2 Gen 2 Type-A ports (red)
      5 x USB 3.2 Gen 1 ports
      4 x USB 2.0/1.1 ports
      1 x RJ-45 port
      1 x optical S/PDIF Out connector
      2 x audio jacks
    • I/O Controller
      iTE® I/O Controller Chip
    • H/W Monitoring
      Voltage detection
      Temperature detection
      Fan speed detection
      Water cooling flow rate detection
      Fan fail warning
      Fan speed control

      * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

    • BIOS
      1 x 256 Mbit flash
      Use of licensed AMI UEFI BIOS
      PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    • Unique Features
      Support for GIGABYTE Control Center (GCC)

      * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.


      Support for Q-Flash
      Support for Q-Flash Plus
    • Bundled Software
      Norton® Internet Security (OEM version)
      LAN bandwidth management software
    • Operating System
      Support for Windows 11 64-bit
      Support for Windows 10 64-bit
    • Form Factor
      Micro ATX Form Factor; 24.4cm x 24.4cm
