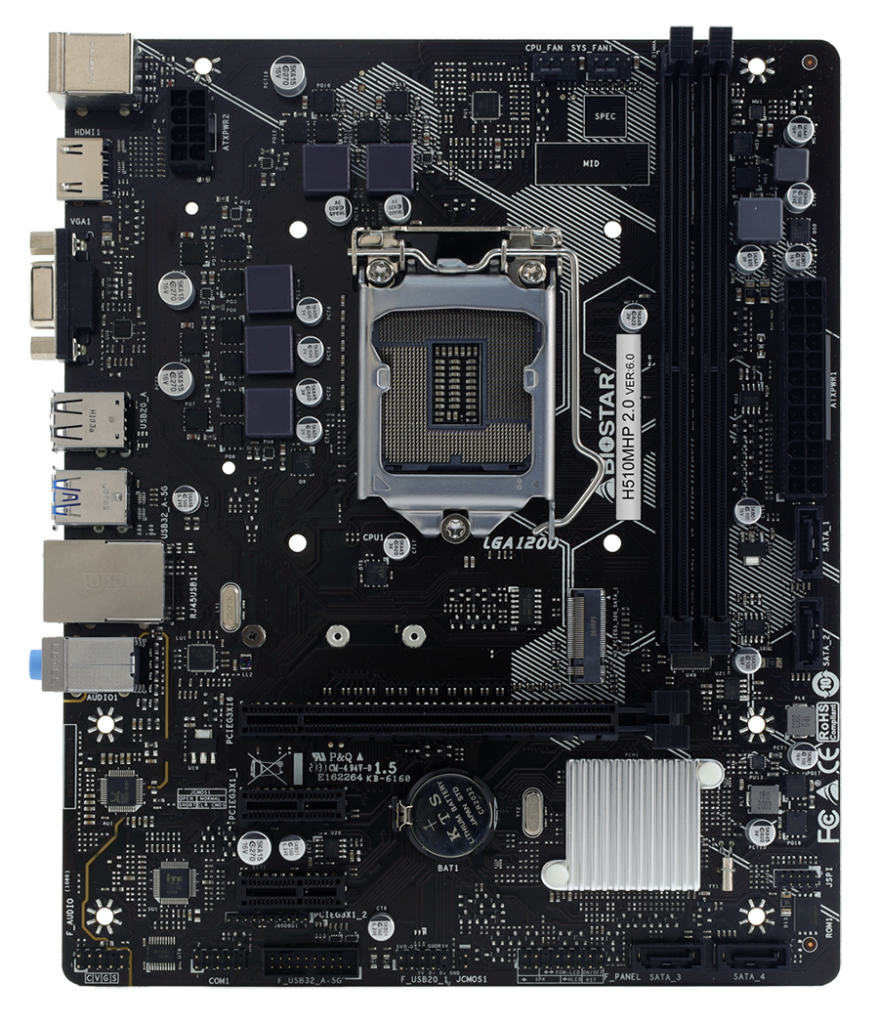

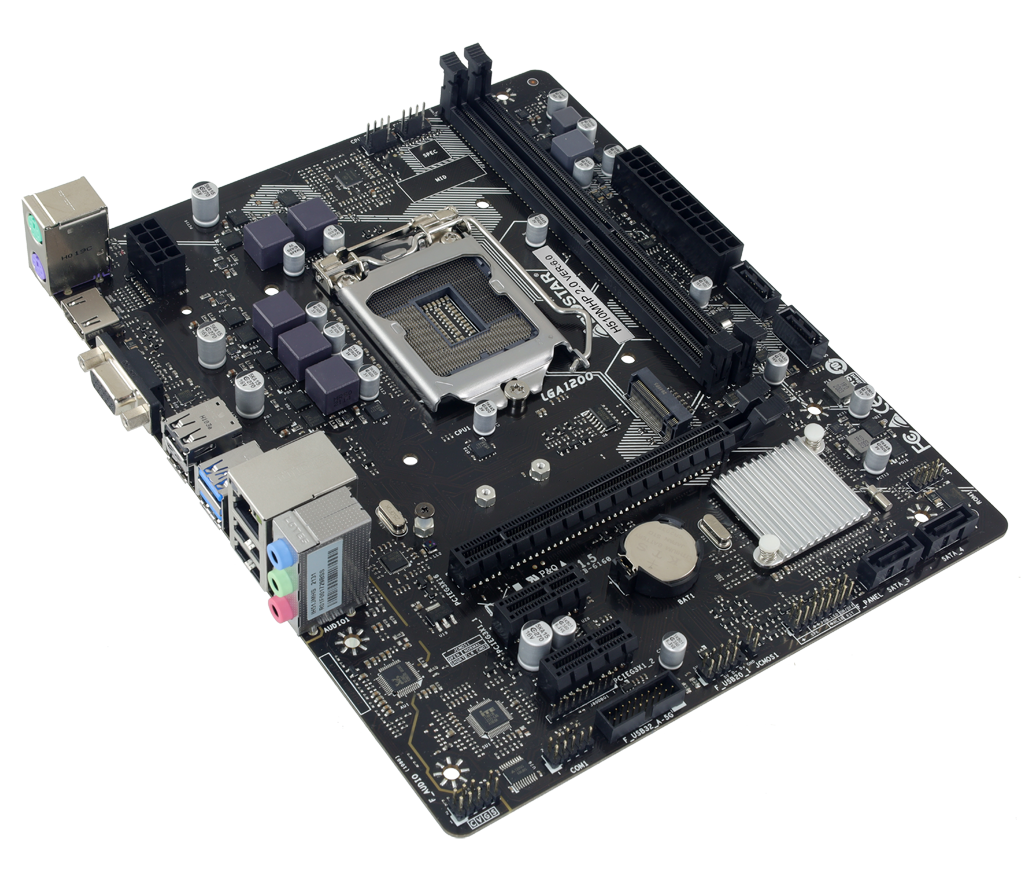

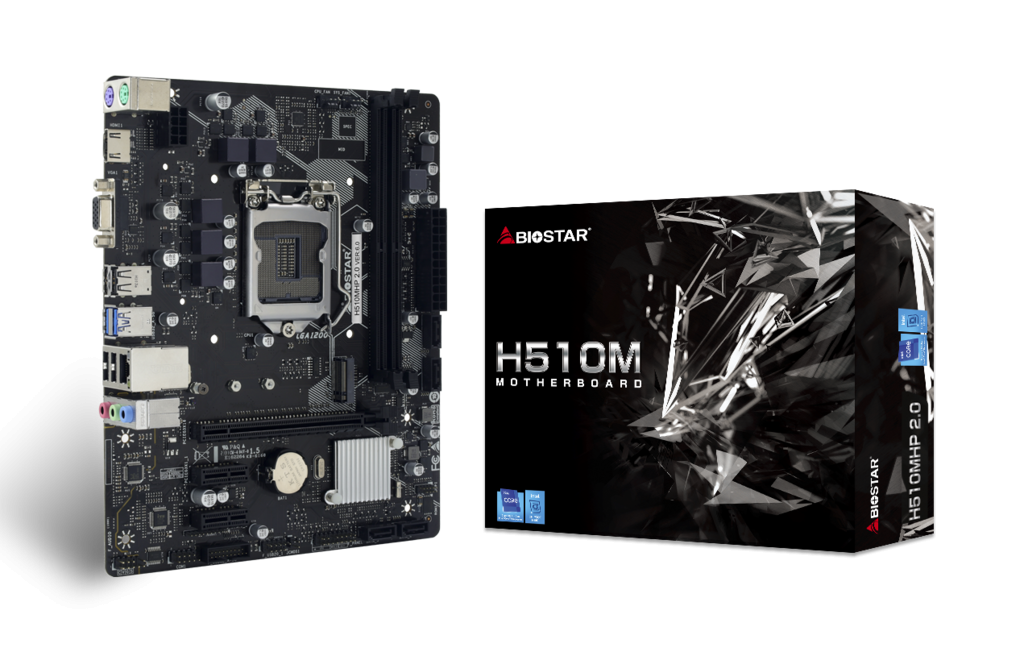

Дънна платка Biostar H510MHP 2.0, H510, LGA1200, DDR4, PCIe 4.0, 4x SATA 6Gb/s, 1x M.2, 2x USB 3.2 Gen1, HDMI, VGA, mATX
Дънна платка Biostar H510MHP 2.0, H510, LGA1200, DDR4, PCIe 4.0, 4x SATA 6Gb/s, 1x M.2, 2x USB 3.2 Gen1, HDMI, VGA, mATX
Дънна платка Biostar H510MHP 2.0, H510, LGA1200, DDR4, PCIe 4.0, 4x SATA 6Gb/s, 1x M.2, 2x USB 3.2 Gen1, HDMI, VGA, mATX
Дънна платка Biostar H510MHP 2.0, H510, LGA1200, DDR4, PCIe 4.0, 4x SATA 6Gb/s, 1x M.2, 2x USB 3.2 Gen1, HDMI, VGA, mATX
Дънна платка Biostar H510MHP 2.0, H510, LGA1200, DDR4, PCIe 4.0, 4x SATA 6Gb/s, 1x M.2, 2x USB 3.2 Gen1, HDMI, VGA, mATX

Дънна платка Biostar H510MHP 2.0, H510, LGA1200, DDR4, PCIe 4.0, 4x SATA 6Gb/s, 1x M.2, 2x USB 3.2 Gen1, HDMI, VGA, mATX

SKU: H510MHP 2.0
ID: #38619
Цена: 139,00 лв.
Цената е с вкл. ДДС

Характеристики

Поддържани процесори: Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors (LGA1200)
CPU Socket: Intel LGA1200
Чипсет: Intel H510
Максимален капацитет RAM памет: 64 GB
Поддръжка на Dualchannel: Да
Памет, слотове: 2
Поддържана памет: DDR4
M.2 слот: 1 x M.2 slots / 4 x SATA 6Gb/s
Graphics технология: Няма
Мрежа: 1 x 10/100/1000 Mbps (RJ-45)
Wi-Fi Mодул: Не
HDMI: 1
VGA: 1
Форм фактор: ATX
Гаранция (месеца): 36

Бърза Поръчка

Описание

Chipset Intel H510
CPU SUPPORT Socket 1200 for 10th / 11th Gen Intel Core™, Pentium and Celeron processors
* Please refer to www.biostar.com.tw for CPU support list.
MEMORY Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2666/ 2933/ 3200
2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory
Each DIMM supports non-ECC 4/8/16/32GB DDR4 module
* Please refer to www.biostar.com.tw for Memory support list.
INTEGRATED VIDEO Supports DX12
Supports HDCP
STORAGE 4 x SATA III Connector (6Gb/s)
1 x M.2 (M Key) Socket:
Supports M.2 Type 2242/ 2260/ 2280 SSD module.
Supports PCIe 3.0 x 4 (32Gb/s) & SATA III (6Gb/s) SSD
* When using SATA SSD module on PCIe-M2_1 slot, the SATA_1 connector will be disabled.
* Specifications vary by CPU types
LAN Intel I219V
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
AUDIO CODEC Realtek ALC897
7.1 Channels, High Definition Audio
USB 4 x USB 3.2(Gen1) ports (2 on rear I/Os and 2 via internal headers)
6 x USB 2.0 ports (4 on rear I/Os and 2 via internal headers)
EXPANSION SLOT 2 x PCIe 3.0 x1 Slot
1 x PCle 3.0/4.0 x16 Slot
*The PCle 4.0 only depends on Rocket Lake CPUs.
* Specifications vary by CPU types

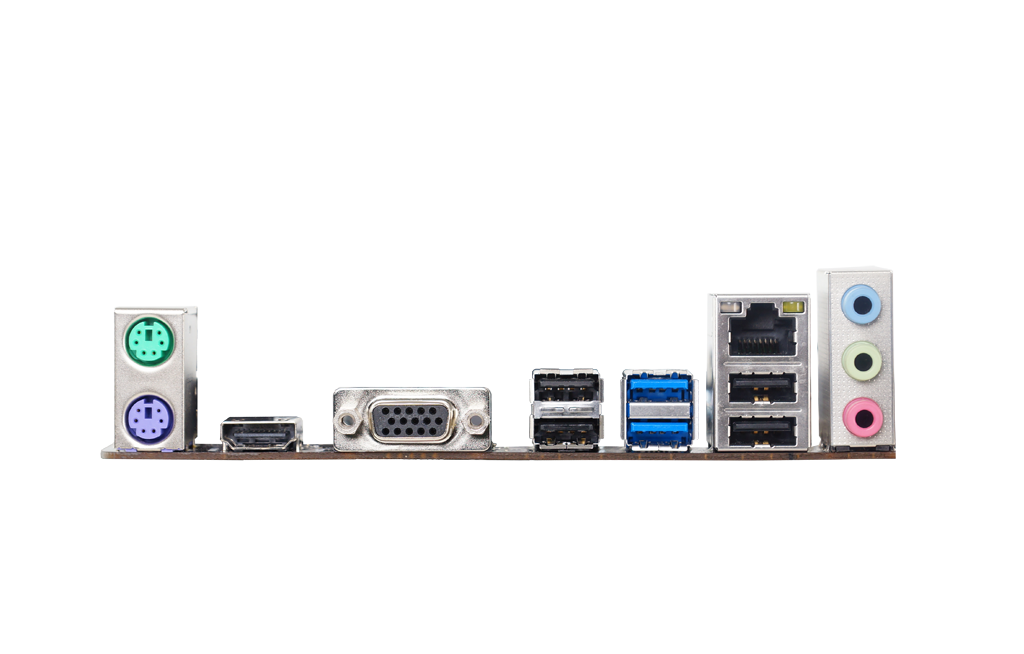

REAR I/O 1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x HDMI Port
1 x VGA Port
2 x USB 3.2 (Gen1) Ports
4 x USB 2.0 Ports
1 x LAN port
3 x Audio Jack
INTERNAL I/O 4 x SATA III Connectors (6Gb/s)
1 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
1 x 8-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x System Fan Connector
1 x Front Panel Header
1 x Front Audio Header
1 x Clear CMOS Header
1 x COM Port Header

H/W MONITORING CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
CPU/DDR Voltage Monitoring
DIMENSION Micro ATX Form Factor Dimension: 18.5cm x 22.6cm ( W x L )
