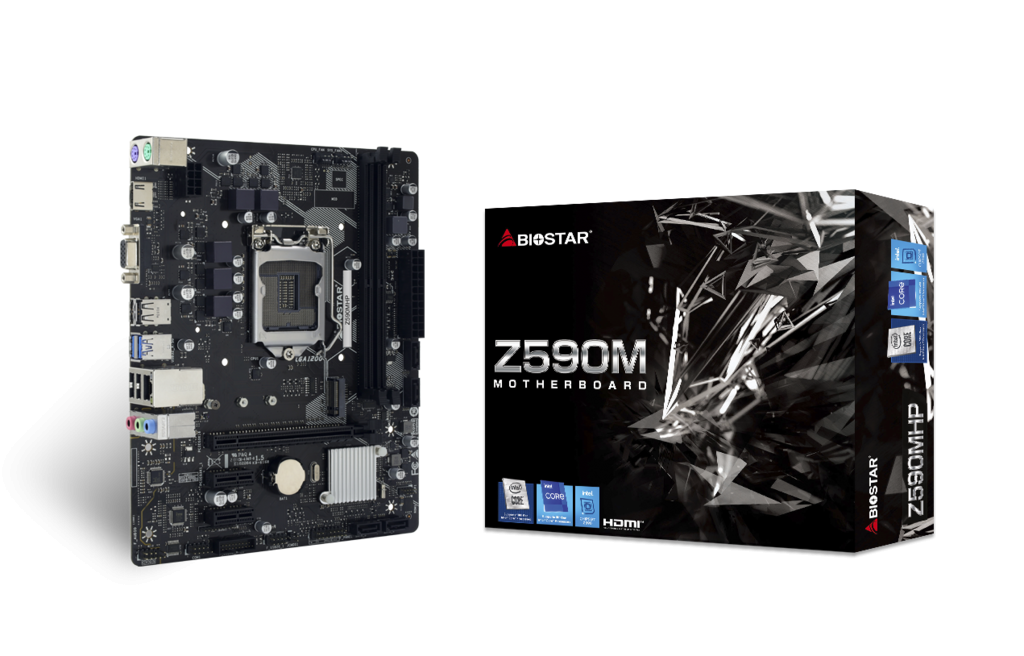

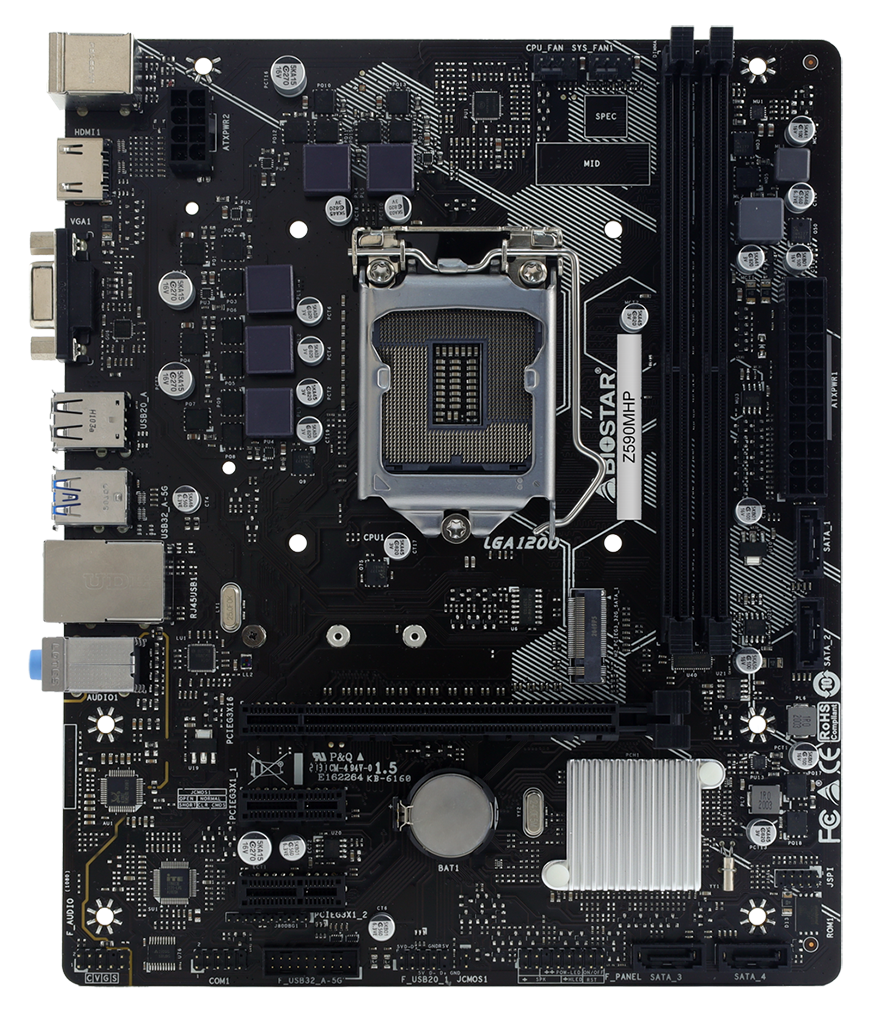

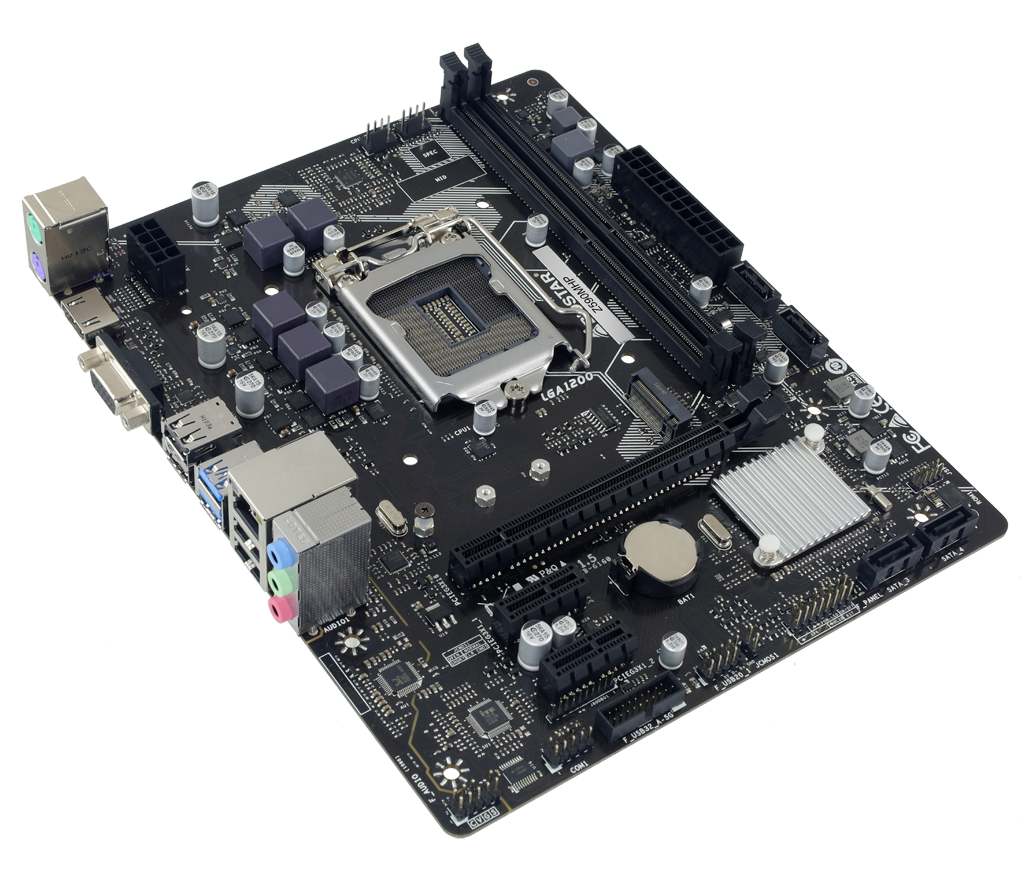

Дънна платка BIOSTAR Z590MHP, LGA1200, DDR4, PCIe 3.0, 1x M.2, 4x SATA 6Gb/s, VGA, HDMI, mATX
изчерпан
Дънна платка BIOSTAR Z590MHP, LGA1200, DDR4, PCIe 3.0, 1x M.2, 4x SATA 6Gb/s, VGA, HDMI, mATX
Дънна платка BIOSTAR Z590MHP, LGA1200, DDR4, PCIe 3.0, 1x M.2, 4x SATA 6Gb/s, VGA, HDMI, mATX
Дънна платка BIOSTAR Z590MHP, LGA1200, DDR4, PCIe 3.0, 1x M.2, 4x SATA 6Gb/s, VGA, HDMI, mATX
Дънна платка BIOSTAR Z590MHP, LGA1200, DDR4, PCIe 3.0, 1x M.2, 4x SATA 6Gb/s, VGA, HDMI, mATX

Дънна платка BIOSTAR Z590MHP, LGA1200, DDR4, PCIe 3.0, 1x M.2, 4x SATA 6Gb/s, VGA, HDMI, mATX

SKU: Z590MHP
ID: #38623

Характеристики

Поддържани процесори: Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
CPU Socket: Intel LGA1200
Чипсет: Intel Z590
Максимален капацитет RAM памет: 64 GB
Поддръжка на Dualchannel: Да
Памет, слотове: 2
Поддържана памет: DDR4
M.2 слот: 1 x M.2 slots / 4 x SATA 6Gb/s
Поддръжка на RAID: SATA RAID 0, 1, 5, 10
Graphics технология: Няма
Мрежа: 4 x 2.5 Gigabit Ethernet (RJ-45)
Wi-Fi Mодул: Не
HDMI: 1
VGA: 1
Форм фактор: Micro ATX
Гаранция (месеца): 24

Направи запитване

Описание

Chipset Intel Z590
CPU SUPPORT Socket 1200 for 10th / 11th Gen Intel Core™, Pentium and Celeron processors
* Please refer to www.biostar.com.tw for CPU support list.
MEMORY Supports Dual Channel DDR4 - 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3200/ 2933/ 2800/ 2666/ 2400/ 2133
2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory
Each DIMM supports non-ECC 4/8/16/32 GB DDR4 module
* Please refer to www.biostar.com.tw for Memory support list.
INTEGRATED VIDEO By CPU model
Supports DX12
Supports HDCP
STORAGE 4 x SATA III Connector (6Gb/s)
Supports AHCI, RAID 0, 1, 5, 10 & Intel Rapid Storage Technology
1 x M.2 (M Key) Socket:
Supports M.2 Type 2242/ 2260/ 2280 SSD module.
Supports PCIe 3.0 x4 (32Gb/s) & SATA III (6Gb/s) SSD
* When using SATA SSD module on PCIE-M2_1 slot, the SATA_1 connector will be disabled.
* Specifications vary by CPU types
LAN Intel I219V
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
AUDIO CODEC Realtek ALC897
7.1 Channels, High Definition Audio
USB 4 x USB 3.2 (Gen1) ports
(2 on rear I/Os and 2 via internal headers)
6 x USB 2.0 ports
(4 on rear I/Os and 2 via internal headers)
EXPANSION SLOT 2 x PCIe 3.0 x1 Slot
1 x PCle 3.0/ 4.0 x16 Slot (x16 mode)
*The PCle 4.0 only depends on Rocket Lake CPUs.
* Specifications vary by CPU types

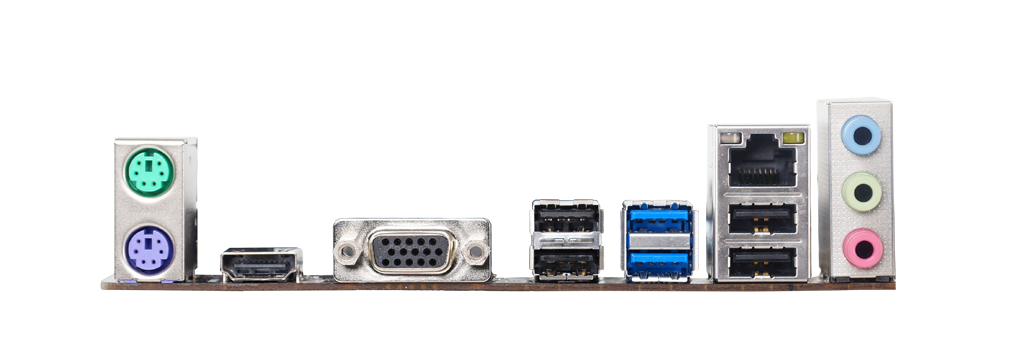

REAR I/O 1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x HDMI Port (HDMI1.4)
1 x VGA Port
2 x USB 3.2 (Gen1) Ports
4 x USB 2.0 Ports
1 x LAN port
3 x Audio Jack
INTERNAL I/O 4 x SATA III Connector (6Gb/s)
1 x USB 3.2 (Gen1) Header
(each header supports 2 USB 3.2 (Gen1) ports)
1 x USB 2.0 Header
(each header supports 2 USB 2.0 ports)
1 x 8-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x System Fan Connector
1 x Front Panel Header
1 x Front Audio Header
1 x Clear CMOS Header
1 x COM Port Header
H/W MONITORING CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
CPU/DDR Voltage Monitoring
DIMENSION Micro ATX Form Factor Dimension: 18.5cm x 22.6cm ( W x L )
